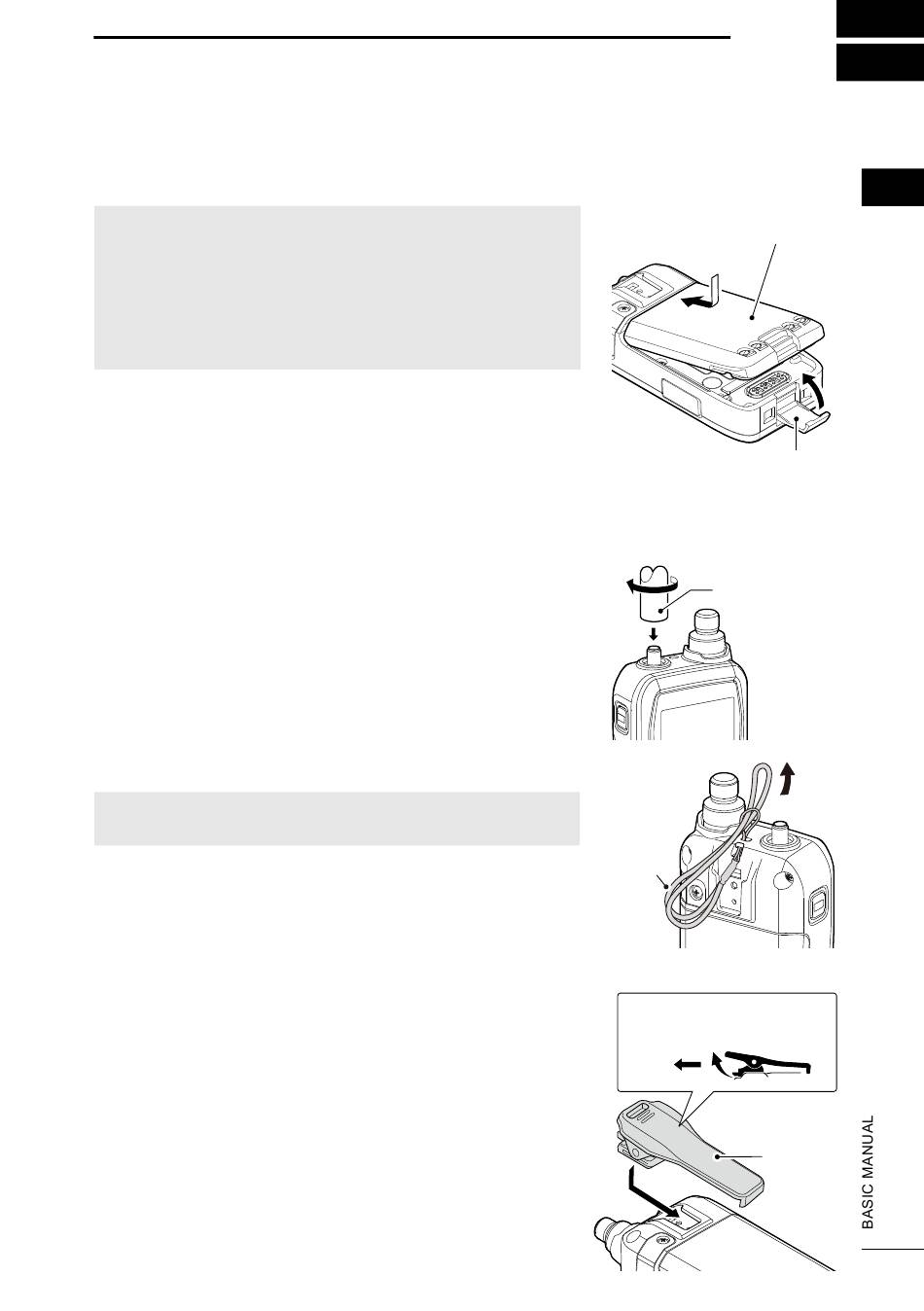

■ Attaching the supplied accessories

ï Battery pack
NOTE:
• BE CAREFUL! Do not break your finger nail.
• Even when the receiver is OFF, a small current still
flows in the receiver. Remove the battery pack or case
from the receiver when not using it for a long time.
Otherwise, the batteries in the pack or the case will
become exhausted.
Attach the battery pack as shown to the right. (12)
L Turn OFF the receiver before attaching or detaching the
battery pack.
L To detach, unhook the latch and then lift up the battery
pack.
ï Antenna
Connect the supplied antenna to the connector.
This receiver has an SMA type antenna connector.
ï Hand strap
R WARNING! NEVER swing the receiver by holding the
hand strap. This can cause injury to yourself or others.
ï Belt clip
To attach the belt clip, slide the clip in the direction of the
arrow until the it locks in place and makes a 'click' sound.
To detach the belt clip, lift the tab up (1) and slide the belt
clip in the direction of the arrow (2).
