7

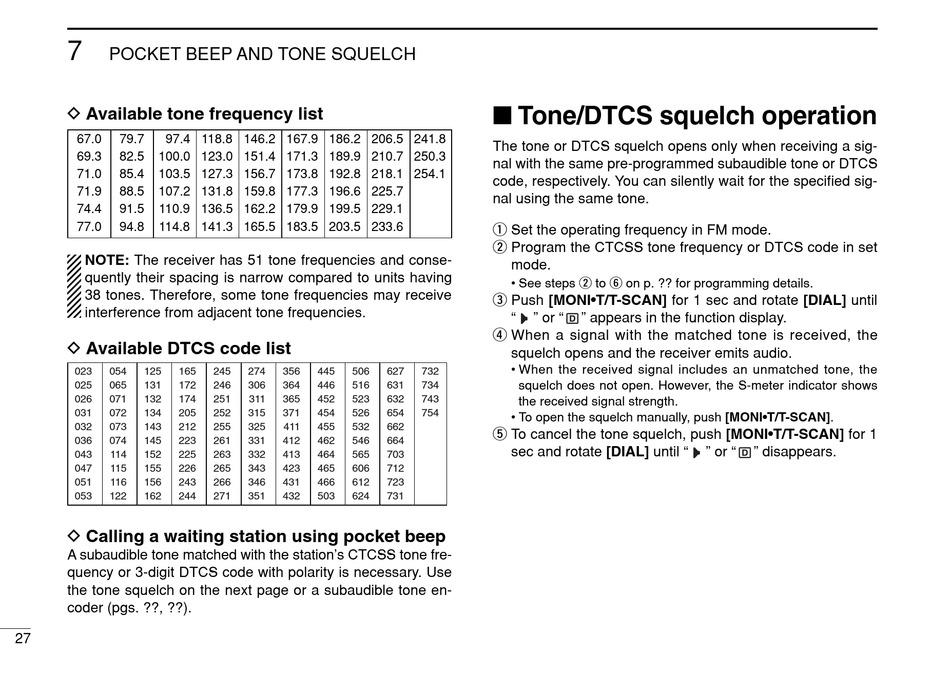

POCKET BEEP AND TONE SQUELCH
D Available tone frequency list
67.0 79.7 097.4
69.3 82.5 100.0
71.0 85.4 103.5
71.9 88.5 107.2
74.4 91.5 110.9
77.0 94.8 114.8
NOTE: The receiver has 51 tone frequencies and conse-
quently their spacing is narrow compared to units having
38 tones. Therefore, some tone frequencies may receive
interference from adjacent tone frequencies.
D Available DTCS code list
023 054 125 165
025 065 131 172
026 071 132 174
031 072 134 205
032 073 143 212
036 074 145 223
043 114 152 225
047 115 155 226
051 116 156 243
053 122 162 244
D Calling a waiting station using pocket beep
A subaudible tone matched with the station's CTCSS tone fre-
quency or 3-digit DTCS code with polarity is necessary. Use
the tone squelch on the next page or a subaudible tone en-
coder (pgs. ??, ??).
27
118.8 146.2 167.9 186.2 206.5
123.0 151.4 171.3 189.9 210.7
127.3 156.7 173.8 192.8 218.1
131.8 159.8 177.3 196.6 225.7
136.5 162.2 179.9 199.5 229.1
141.3 165.5 183.5 203.5 233.6
245 274 356 445 506
246 306 364 446 516
251 311 365 452 523
252 315 371 454 526
255 325 411 455 532
261 331 412 462 546
263 332 413 464 565
265 343 423 465 606
266 346 431 466 612
271 351 432 503 624

I Tone/DTCS squelch operation

241.8
The tone or DTCS squelch opens only when receiving a sig-
250.3
nal with the same pre-programmed subaudible tone or DTCS
254.1
code, respectively. You can silently wait for the specified sig-
nal using the same tone.
q Set the operating frequency in FM mode.
w Program the CTCSS tone frequency or DTCS code in set
mode.
• See steps w to y on p. ?? for programming details.
e Push [MONI•T/T-SCAN] for 1 sec and rotate [DIAL] until
" " or "
r When a signal with the matched tone is received, the
squelch opens and the receiver emits audio.
• When the received signal includes an unmatched tone, the
627 732
squelch does not open. However, the S-meter indicator shows
631 734
632 743
the received signal strength.
654 754
• To open the squelch manually, push [MONI•T/T-SCAN].
662
t To cancel the tone squelch, push [MONI•T/T-SCAN] for 1
664
sec and rotate [DIAL] until "
703
712
723
731
" appears in the function display.
" or " " disappears.
