Summary of Contents for Icom IC-R15

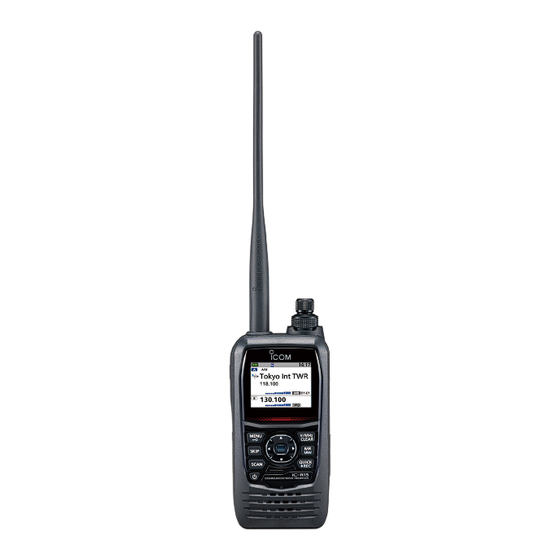

- Page 1 CI-V REFERENCE GUIDE COMMUNICATIONS RECEIVER |R15...
-
Page 2: Table Of Contents
TABLE OF CONTENTS REMOTE CONTROL ����������������������������������������� 2 Remote control (CI-V) information ���������������� 2 D CI-V data setting����������������������������������������������� 2 D Connecting to a PC ������������������������������������������ 2 D Data format������������������������������������������������������� 3 D Command table ������������������������������������������������ 4 D Command formats �������������������������������������������� 5 • Operating frequency ������������������������������������� 5 •... -
Page 3: Remote Control
LUse a proper cable according to your PC’s USB port and make the connection as short as possible� The receiver may not be recognized by the controller, depending on the length of the USB cable� LWhen connecting to a USB port on your PC with the USB driver installed, the USB is named “IC-R15 Serial Port�”... -
Page 4: Ddata Format
DData format The CI-V system can be written using the following data formats� Data formats differ according to command numbers� A data area or sub command is added for some commands� Controller to IC-R15 OK message to controller FE FE... -
Page 5: Dcommand Table
REMOTE CONTROL Remote control (CI-V) information DCommand table Command Sub Data Description Command Sub Data Description See p� 5 Send operating frequency for 00/01 Send/read the AF filter function transceive (00=OFF, 01=ON) See p� 5 Send operating mode for transceive 00/01 Send/read the Automatic Noise Limiter function (ANL) -
Page 6: Dcommand Formats
REMOTE CONTROL Remote control (CI-V) information DCommand formats • Operating frequency • Offset frequency setting Command: 00, 03, 05 Command: 0D LWhen the 100 Hz digit is 0, the 10 Hz digit is 0~9� LWhen the 100 Hz digit is 1, the 10 Hz digit is 0~5� LThe 10Hz digit is set as shown below, depending on •... -
Page 7: Tone Squelch Frequency Setting
REMOTE CONTROL Remote control (CI-V) information D Command formats • Tone squelch frequency setting Command: 1B 01 *No input is required when setting the frequency. Refer to the Advanced manual for the tone frequency list� • DTCS code and polarity setting Command: 1B 02 0 X 0 X X X 0: Normal... - Page 8 How the World Communicates A7777-3EX 1-1-32 Kamiminami, Hirano-ku, Osaka 547-0003, Japan © 2024 Icom Inc. Mar. 2024...
