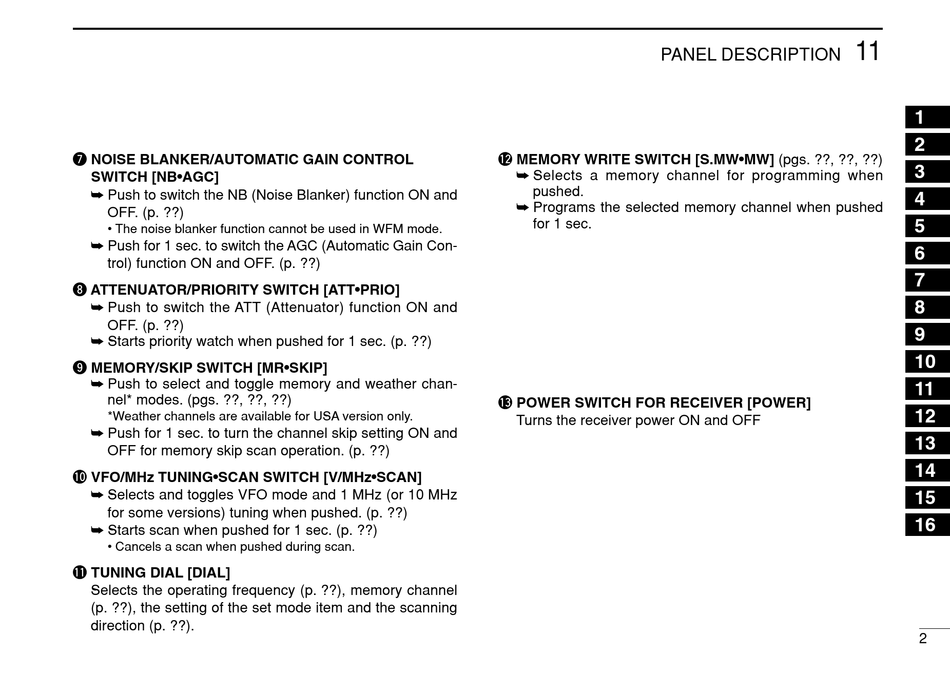

Icom IC-R1500 Instruction Manual page 7

u NOISE BLANKER/AUTOMATIC GAIN CONTROL
SWITCH [NB•AGC]
➥ Push to switch the NB (Noise Blanker) function ON and
OFF. (p. ??)
• The noise blanker function cannot be used in WFM mode.
➥ Push for 1 sec. to switch the AGC (Automatic Gain Con-
trol) function ON and OFF. (p. ??)
i ATTENUATOR/PRIORITY SWITCH [ATT•PRIO]
➥ Push to switch the ATT (Attenuator) function ON and
OFF. (p. ??)
➥ Starts priority watch when pushed for 1 sec. (p. ??)
o MEMORY/SKIP SWITCH [MR•SKIP]
➥ Push to select and toggle memory and weather chan-
nel* modes. (pgs. ??, ??, ??)
*Weather channels are available for USA version only.
➥ Push for 1 sec. to turn the channel skip setting ON and
OFF for memory skip scan operation. (p. ??)
!0 VFO/MHz TUNING•SCAN SWITCH [V/MHz•SCAN]
➥ Selects and toggles VFO mode and 1 MHz (or 10 MHz
for some versions) tuning when pushed. (p. ??)
➥ Starts scan when pushed for 1 sec. (p. ??)
• Cancels a scan when pushed during scan.
!1 TUNING DIAL [DIAL]
Selects the operating frequency (p. ??), memory channel
(p. ??), the setting of the set mode item and the scanning
direction (p. ??).
PANEL DESCRIPTION
!2 MEMORY WRITE SWITCH [S.MW•MW] (pgs. ??, ??, ??)
➥ Selects a memory channel for programming when
pushed.
➥ Programs the selected memory channel when pushed
for 1 sec.
!3 POWER SWITCH FOR RECEIVER [POWER]
Turns the receiver power ON and OFF
