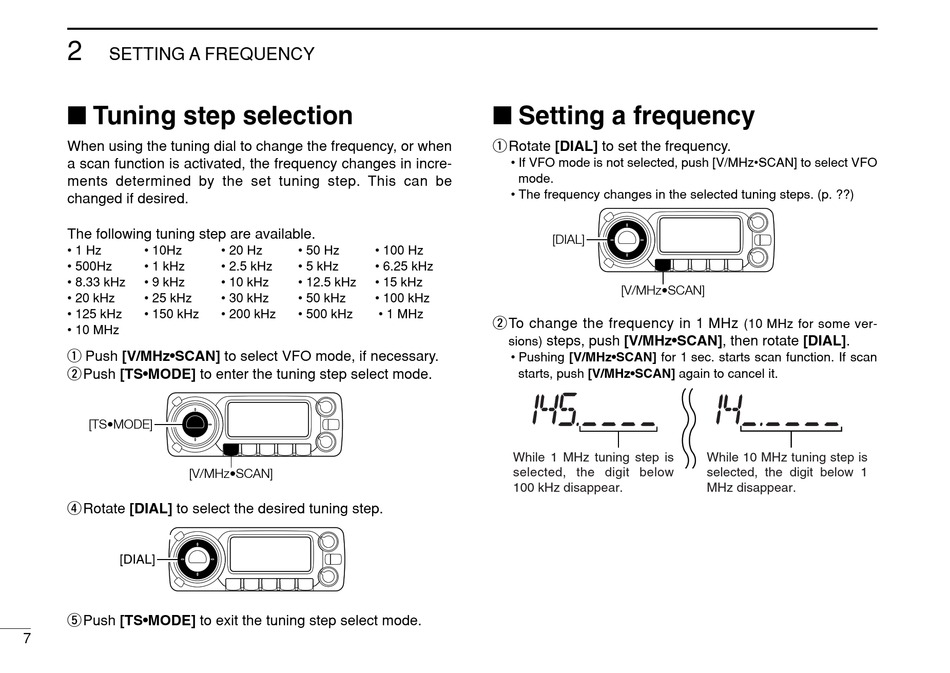

SETTING A FREQUENCY

I Tuning step selection

When using the tuning dial to change the frequency, or when
a scan function is activated, the frequency changes in incre-
ments determined by the set tuning step. This can be
changed if desired.
The following tuning step are available.
• 1 Hz • 10Hz
• 500Hz • 1 kHz
• 8.33 kHz • 9 kHz
• 20 kHz • 25 kHz
• 125 kHz • 150 kHz
• 10 MHz
q Push [V/MHz•SCAN] to select VFO mode, if necessary.
w Push [TS•MODE] to enter the tuning step select mode.
[TS•MODE]
[V/MHz•SCAN]
r Rotate [DIAL] to select the desired tuning step.
[DIAL]
tPush [TS•MODE] to exit the tuning step select mode.
7
• 20 Hz • 50 Hz • 100 Hz
• 2.5 kHz • 5 kHz • 6.25 kHz
• 10 kHz • 12.5 kHz • 15 kHz
• 30 kHz • 50 kHz • 100 kHz
• 200 kHz • 500 kHz • 1 MHz

I Setting a frequency

q Rotate [DIAL] to set the frequency.
• If VFO mode is not selected, push [V/MHz•SCAN] to select VFO
mode.
• The frequency changes in the selected tuning steps. (p. ??)
[DIAL]
[V/MHz•SCAN]
wTo change the frequency in 1 MHz
steps, push [V/MHz•SCAN], then rotate [DIAL].
sions)
• Pushing [V/MHz•SCAN] for 1 sec. starts scan function. If scan
starts, push [V/MHz•SCAN] again to cancel it.
While 1 MHz tuning step is
selected, the digit below
100 kHz disappear.
(10 MHz for some ver-
While 10 MHz tuning step is
selected, the digit below 1
MHz disappear.
