C.4.2 Assembling the Monitor Mount
C.4.2.1 Assembling the Base Plate
Tool: Combination wrench, size 13
One of the vertical legs has two threaded bushes. When assembling the floor stand, these
two threaded bushes must be positioned outside of the vertical leg. In Picture 15,
component #4 shows the position marked with a red circle.
Use two hexagon head screws to fasten the base plate at the vertical leg.

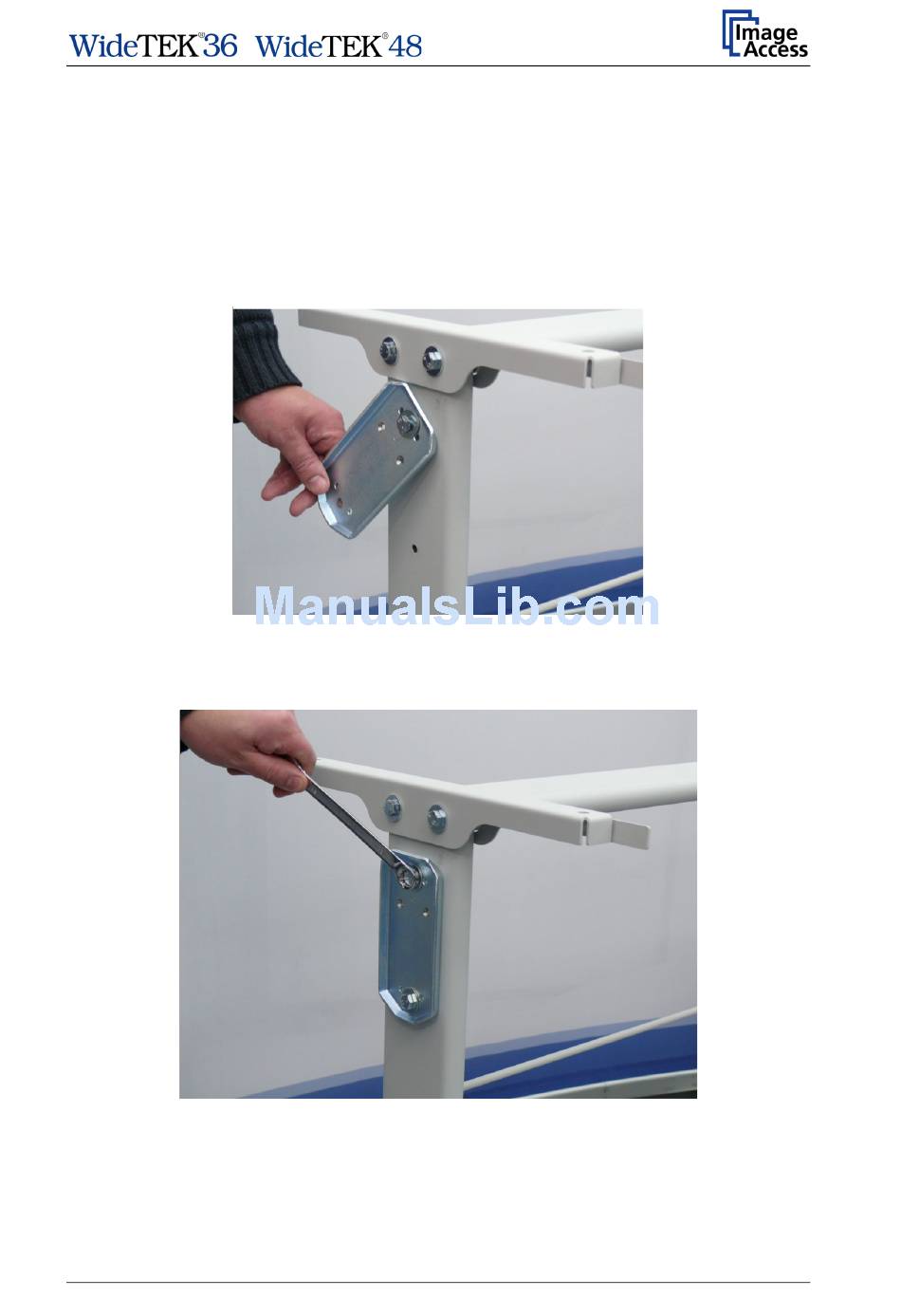

Picture 27: Assembling the base plate to the vertical leg

Assemble the base plate with the hexagon head screws and the washers which come with
the Monitor Mount.

Picture 28: Base plate fastened with hexagon head screws

Fasten the screws with the combination wrench.
Setup Manual Page 39
