Chapter 2 — Physical Installation
Antenna
cable
Cable tie
Antenna
EasyCoder PX4/6i printer
EasyCoder PX4/6i printer, rear view
22
Cable clips
Antenna
(packed separately
when the EasyLAN
Wireless interface is
factory-installed)

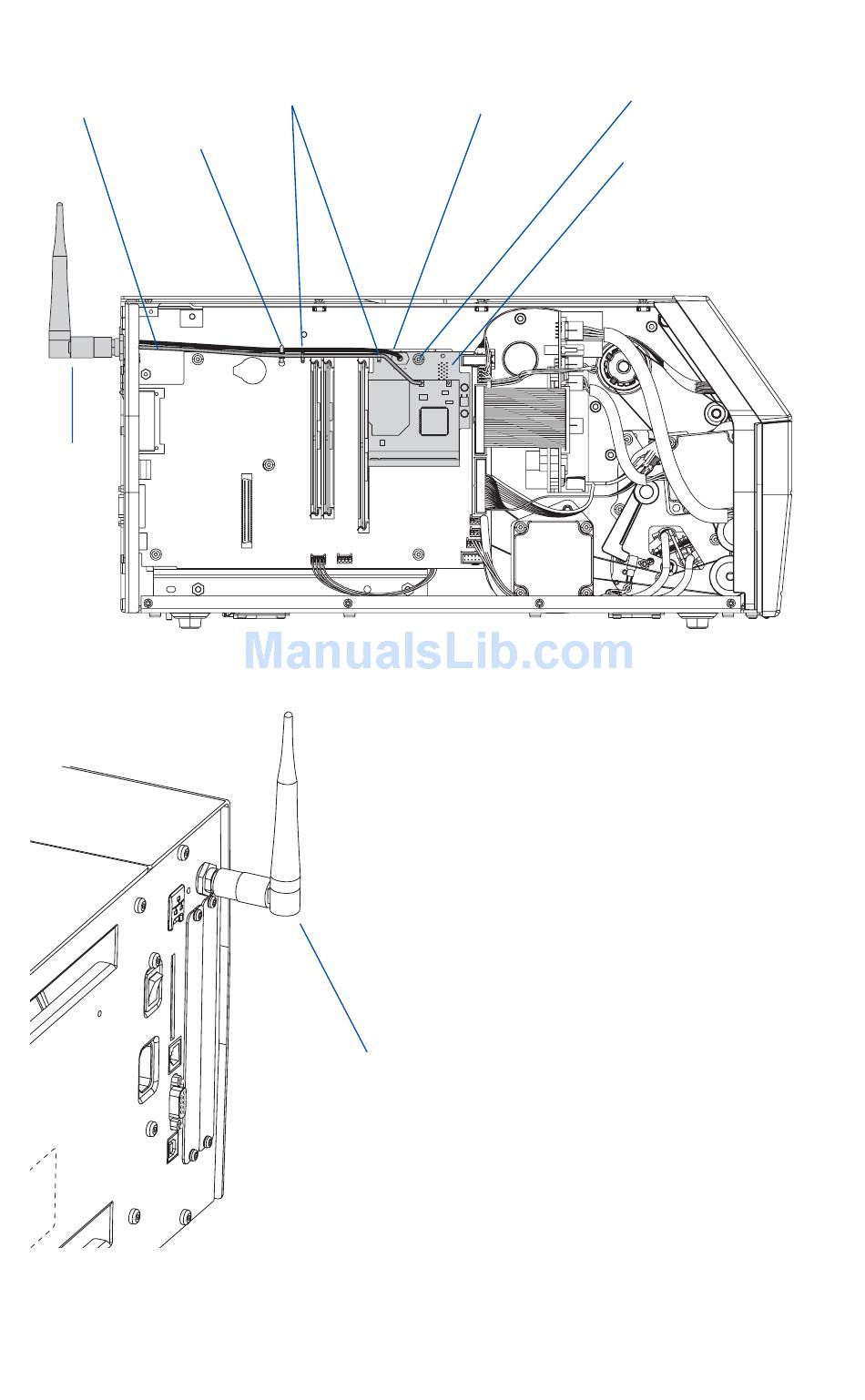

EasyLAN Wireless Interface Kit Installation Instructions
Light guide
#T20 Torx screw
and spacer
EasyLAN adapter
board
