EasyCoder PX4/6i Printers

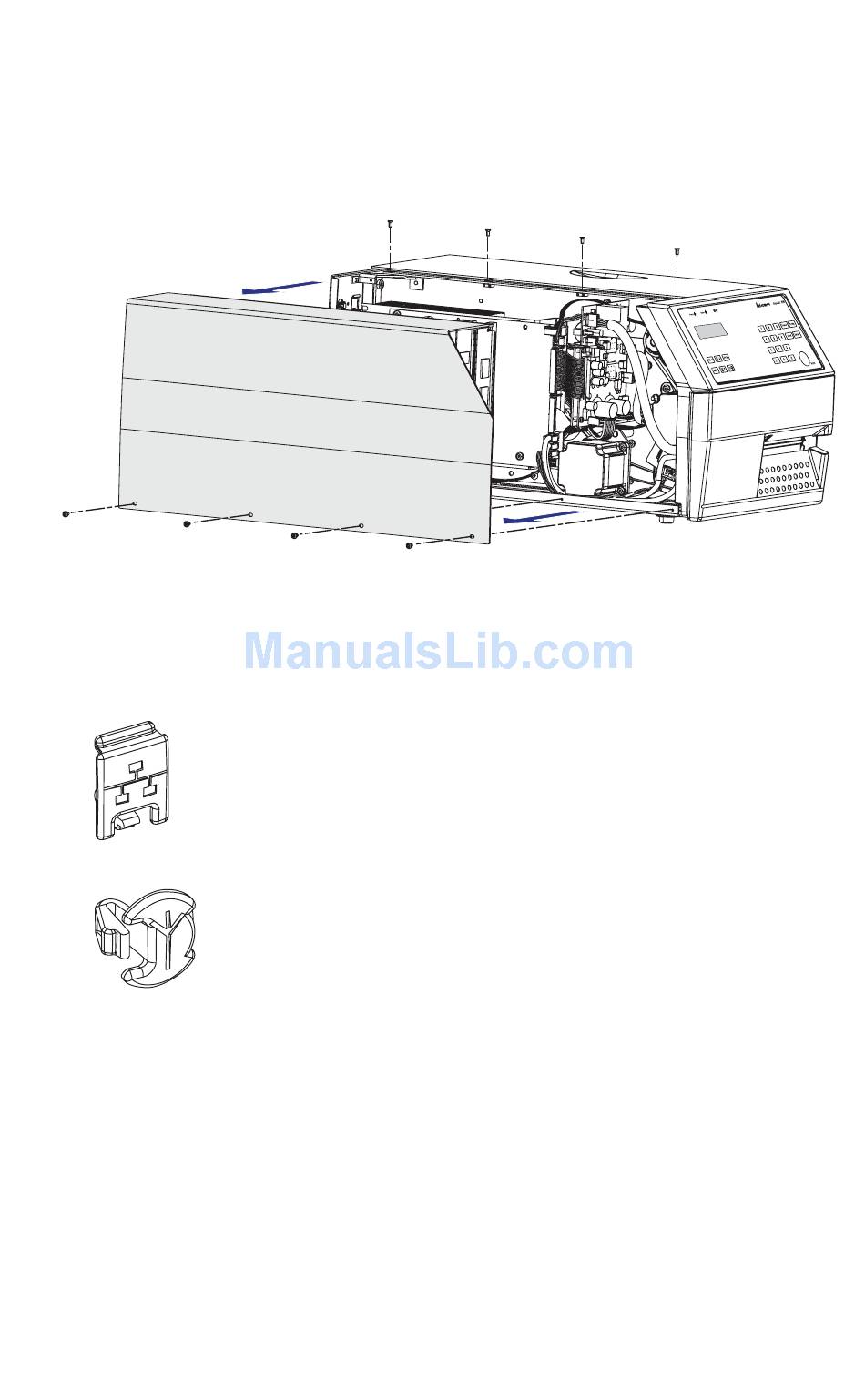

• Open the front and right-hand doors.
• Remove the eight #T10 Torx screws that hold the left-hand cover.
• Put the cover aside on a soft cloth or similar to avoid scratches.
• Remove any present EasyLAN Ethernet interface including cables etc.
Fit the RJ-45 plug included in the kit into the square hole left by the
RJ-45 Ethernet connector.
• Remove the antenna plug, which is snap-locked into the rear plate.
• Continue on page 18.
EasyLAN Wireless Interface Kit Installation Instructions
Chapter 2 — Physical Installation
17
