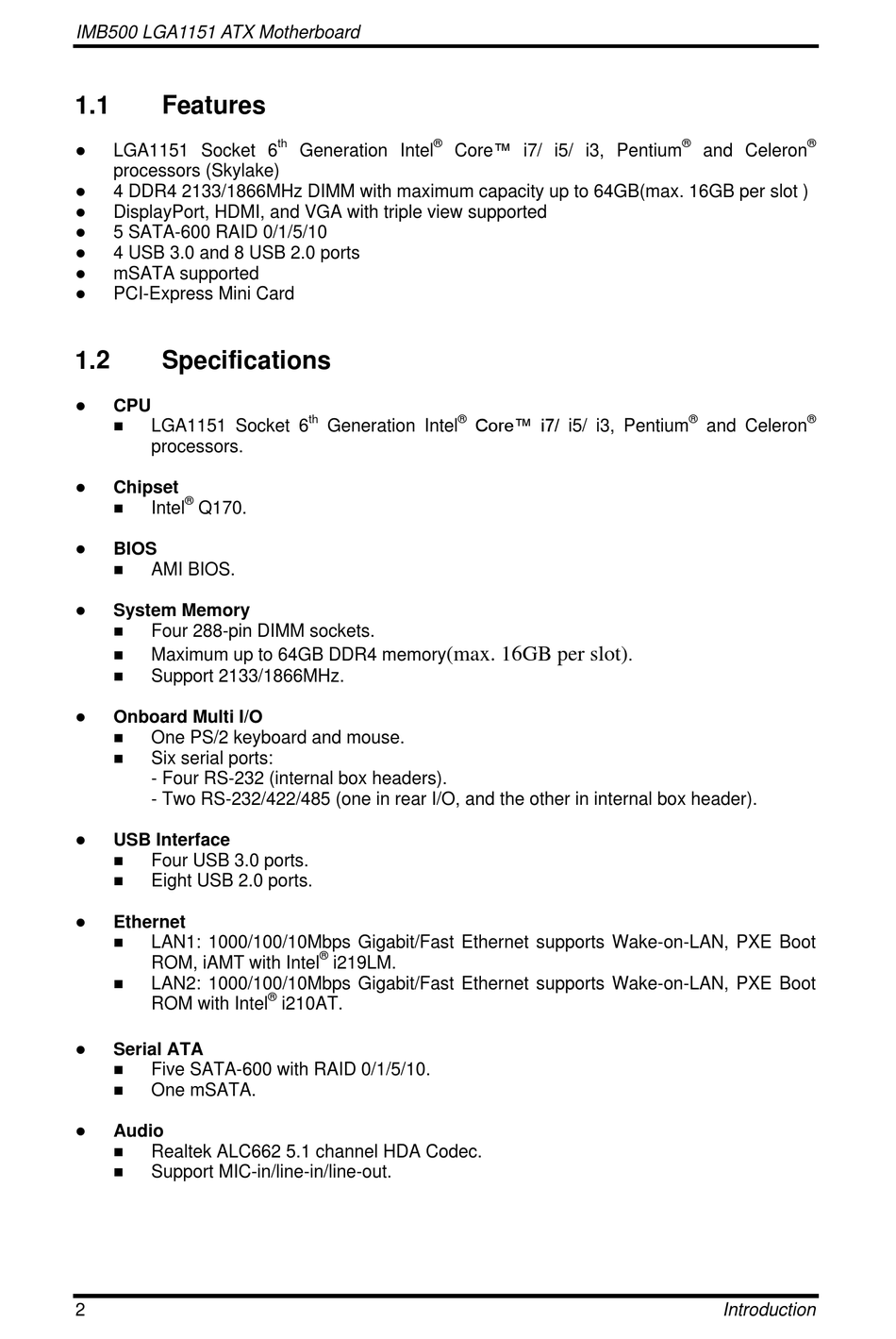

IMB500 LGA1151 ATX Motherboard
1.1

Features

 LGA1151 Socket 6
processors (Skylake)
 4 DDR4 2133/1866MHz DIMM with maximum capacity up to 64GB(max. 16GB per slot )
 DisplayPort, HDMI, and VGA with triple view supported
 5 SATA-600 RAID 0/1/5/10
 4 USB 3.0 and 8 USB 2.0 ports
 mSATA supported
 PCI-Express Mini Card
1.2

Specifications

 CPU
 LGA1151 Socket 6
processors.
 Chipset
®
 Intel Q170.
 BIOS
 AMI BIOS.
 System Memory
 Four 288-pin DIMM sockets.
 Maximum up to 64GB DDR4 memory
Support 2133/1866MHz.

 Onboard Multi I/O
 One PS/2 keyboard and mouse.
 Six serial ports:
- Four RS-232 (internal box headers).
- Two RS-232/422/485 (one in rear I/O, and the other in internal box header).
 USB Interface
 Four USB 3.0 ports.
 Eight USB 2.0 ports.
 Ethernet
 LAN1: 1000/100/10Mbps Gigabit/Fast Ethernet supports Wake-on-LAN, PXE Boot
ROM, iAMT with Intel
 LAN2: 1000/100/10Mbps Gigabit/Fast Ethernet supports Wake-on-LAN, PXE Boot
ROM with Intel
 Serial ATA
 Five SATA-600 with RAID 0/1/5/10.
 One mSATA.
 Audio
 Realtek ALC662 5.1 channel HDA Codec.
 Support MIC-in/line-in/line-out.
2
th ®
Generation Intel
th
Generation Intel
®
i219LM.
®
i210AT.
Core™ i7/ i5/ i3, Pentium
®
Core™ i7/ i5/ i3, Pentium
(max. 16GB per slot)
®
and Celeron
®
and Celeron
.
Introduction
®
®
