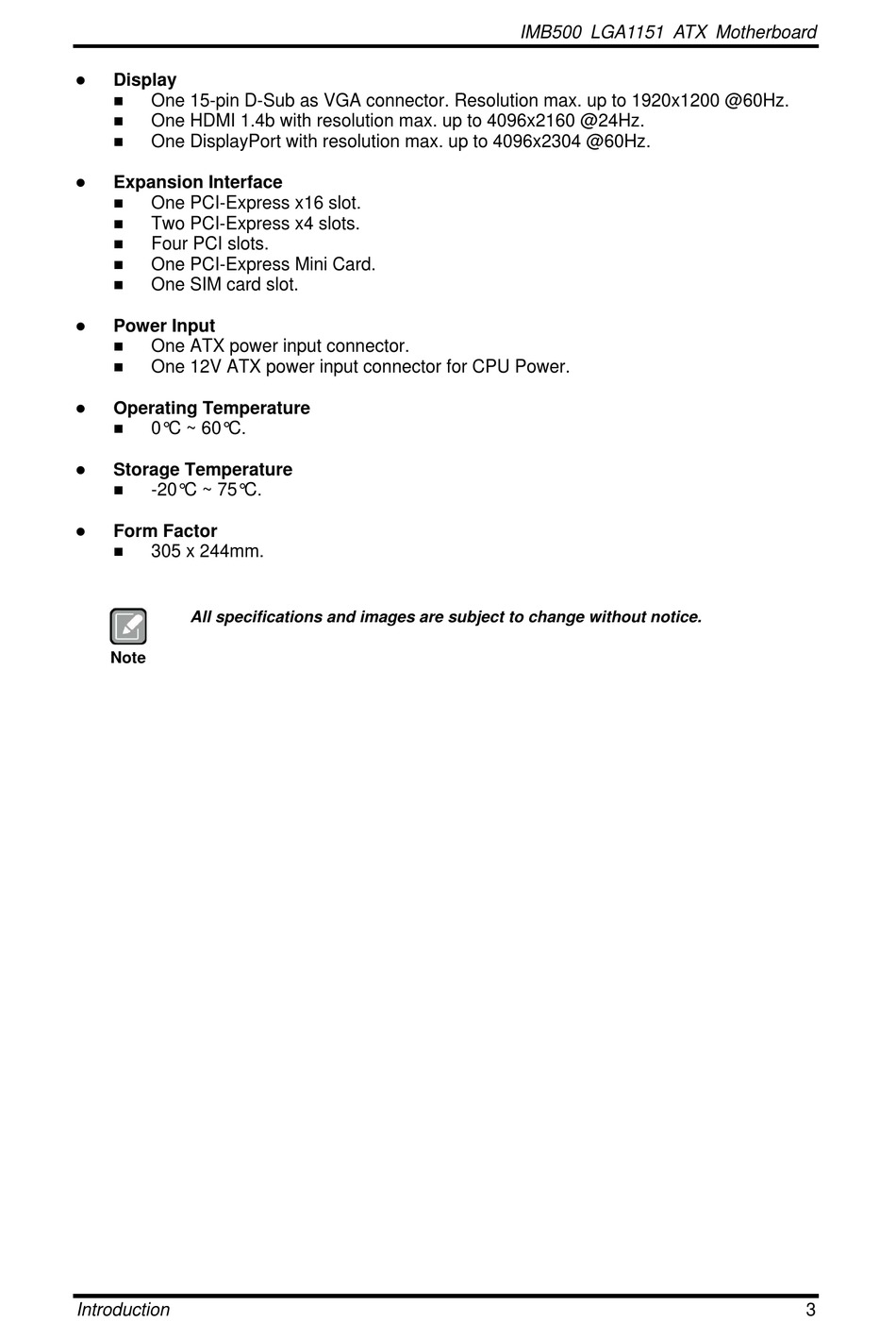

 Display
 One 15-pin D-Sub as VGA connector. Resolution max. up to 1920x1200 @60Hz.
 One HDMI 1.4b with resolution max. up to 4096x2160 @24Hz.
 One DisplayPort with resolution max. up to 4096x2304 @60Hz.
 Expansion Interface
 One PCI-Express x16 slot.
 Two PCI-Express x4 slots.
 Four PCI slots.
 One PCI-Express Mini Card.
One SIM card slot.

 Power Input
 One ATX power input connector.
 One 12V ATX power input connector for CPU Power.
 Operating Temperature
 0°C ~ 60°C.
 Storage Temperature
 -20°C ~ 75°C.
 Form Factor
 305 x 244mm.
All specifications and images are subject to change without notice.
