To identify the first pin of a header or jumper, please refer to the following
information:

Usually, there is a thick line or a triangle near the header or jumper pin 1.
Note

Square pad, which you can find on the back of the motherboard, is usually
used for pin 1.
2.3

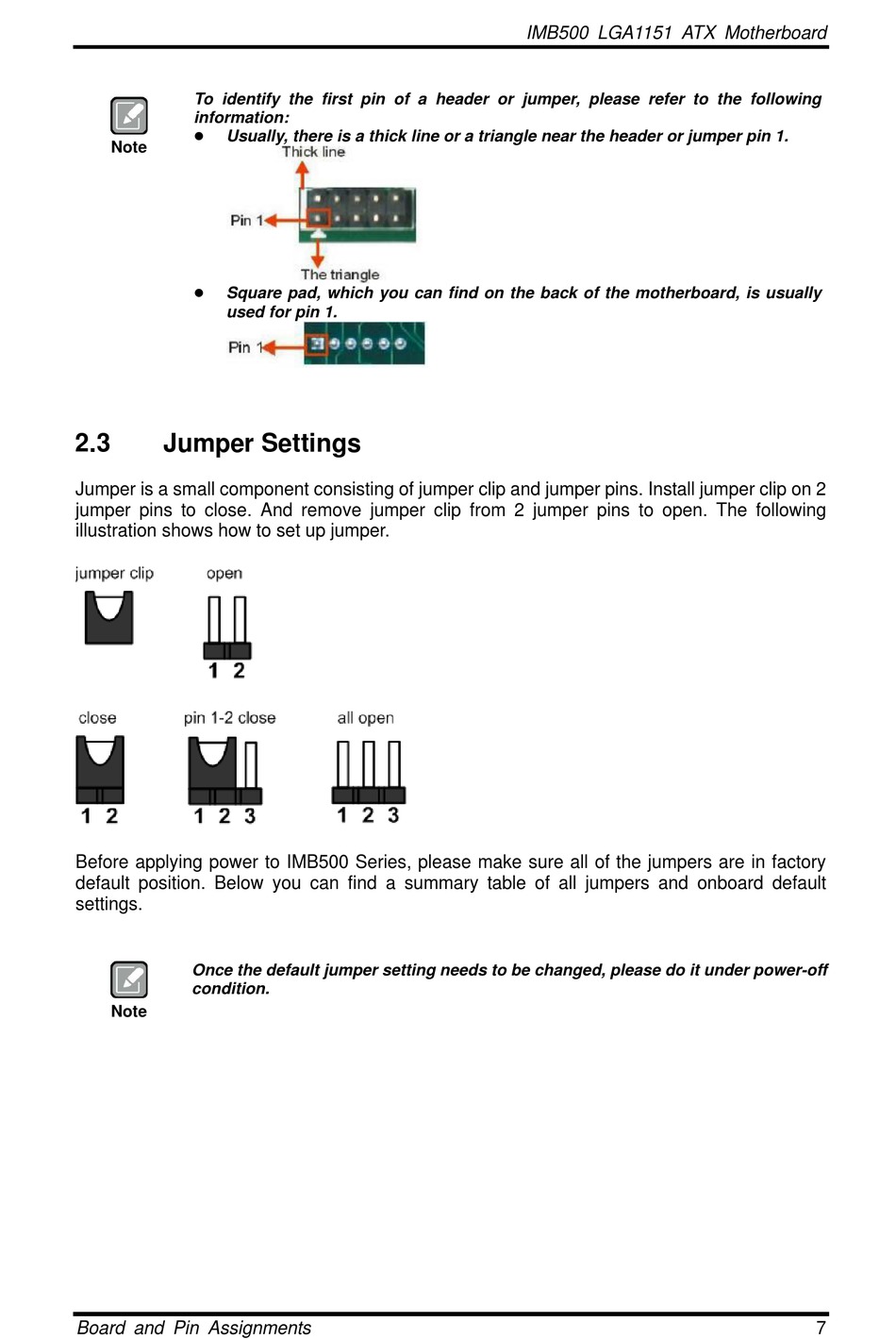

Jumper Settings

Jumper is a small component consisting of jumper clip and jumper pins. Install jumper clip on 2
jumper pins to close. And remove jumper clip from 2 jumper pins to open. The following
illustration shows how to set up jumper.
Before applying power to IMB500 Series, please make sure all of the jumpers are in factory
default position. Below you can find a summary table of all jumpers and onboard default
settings.
Once the default jumper setting needs to be changed, please do it under power-off
condition.
Note
Board and Pin Assignments
