2.4.1

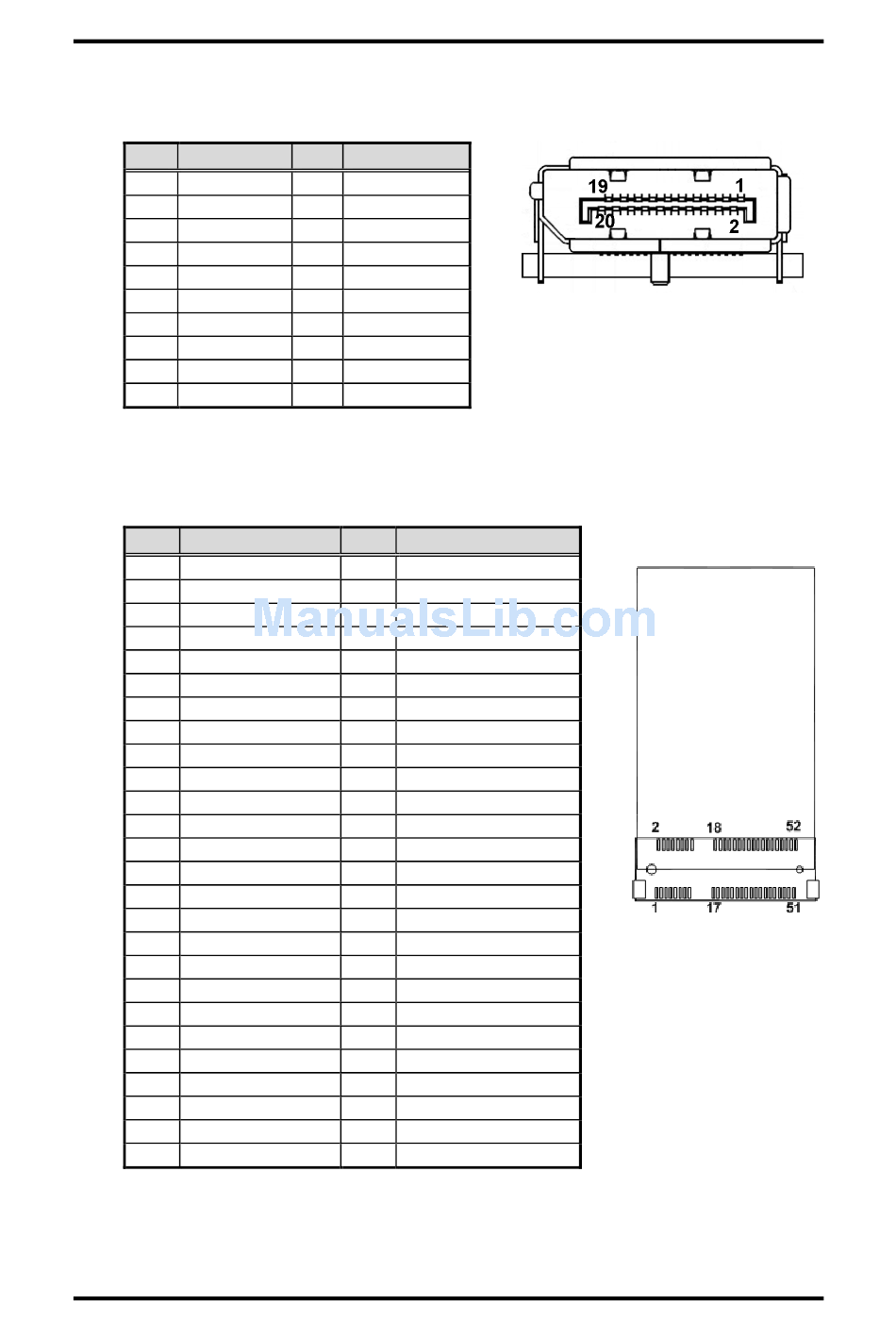

DisplayPort Connector (CN2)

The DisplayPort interface is available through CN2.
Pin Signal
1 DP_TX0+
3 DP_TX0-
5 GND
7 DP_TX2+
9 DP_TX2-
11 GND
13 GND
15 DP_AUX+
17 DP_AUX-
19 GND
2.4.2

PCI-Express Mini Card Connector (CN3)

The CN3 complies with PCI-Express Mini Card Spec. V1.2.
Pin Signal
1 PCH_WAKE_N
3 N/C
5 N/C
7 +3.3V_DUAL
9 GND
11 CLKOUT_PCIE_N3
13 CLKOUT_PCIE_P3
15 GND
17 N/C
19 N/C
21 GND
23 PCIE7_RX_DN
25 PCIE7_RX_DP
27 GND
29 GND
31 PCIE7_TX_DN
33 PCIE7_TX_DP
35 GND
37 GND
39 +3.3V_DUAL
41 +3.3V_DUAL
43 GND
45 CL_CLK
47 CL_DATA
49 CL_RST_N
51 N/C
NOTE: screw type is M2*0.4
Board and Pin Assignments
Pin Signal
2 GND
4 DP_TX1+
6 DP_TX1-
8 GND
10 DP_TX3+
12 DP_TX3-
14 GND
16 GND
18 DP_HPD
20 +3.3V
Pin Signal
2 +3.3V_DUAL
4 GND
6 +1.5V
8 UIM_PWR
10 UIM_DAT
12 UIM_CLK
14 UIM_RST
16 UIM_VPP
18 GND
20 RF_KILL#_WIFI
22 BUF_PLT_RST_N
24 +3.3V_DUAL
26 GND
28 +1.5V
30 SMB_CLK_RESUME
32 SMB_DATA_RESUME
34 GND
36 USB10-
38 USB10+
40 GND
42 N/C
44 N/C
46 N/C
48 +1.5V
50 GND
52 +3.3V_DUAL
IMB500 LGA1151 ATX Motherboard
