IMB500 LGA1151 ATX Motherboard
2.4.3

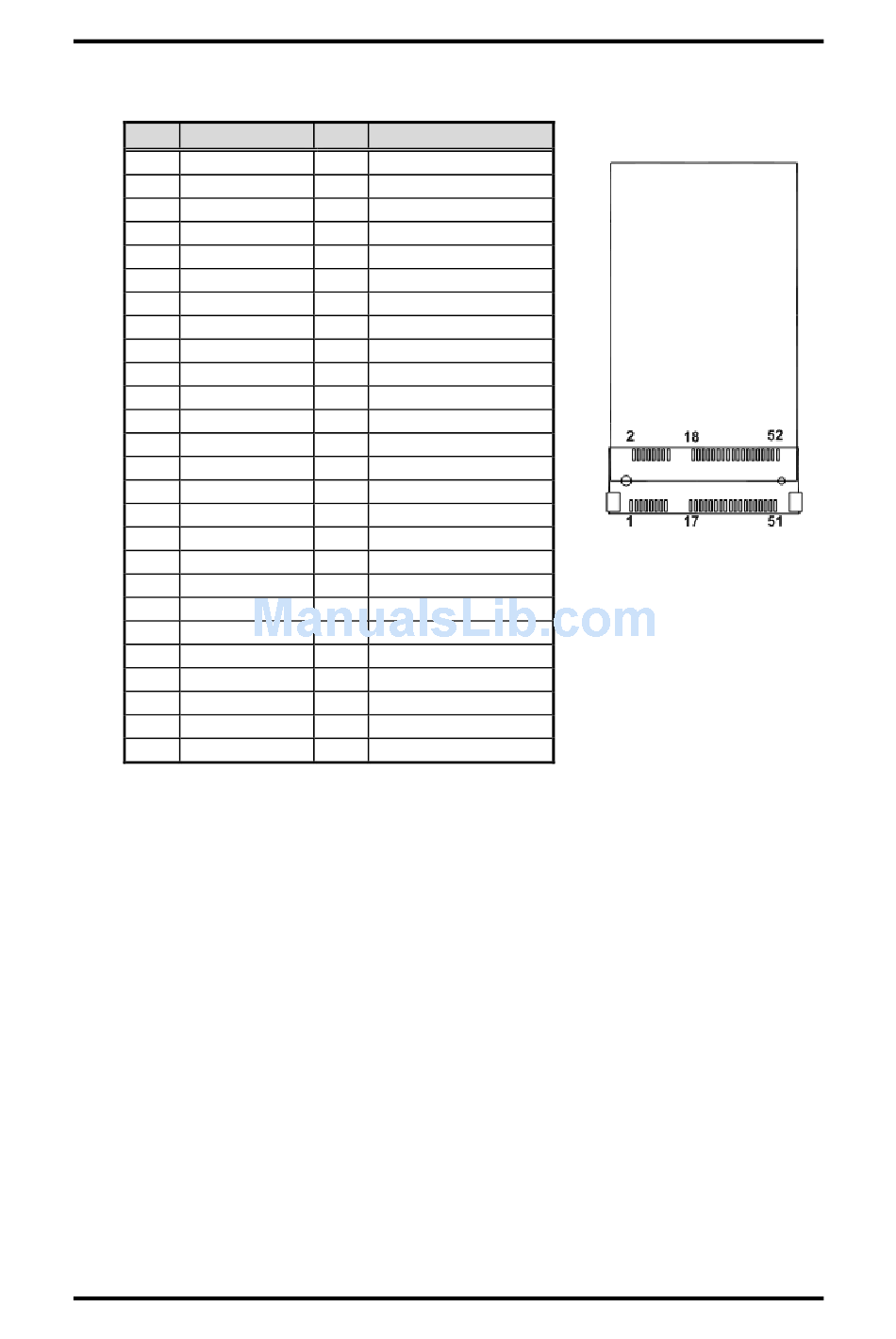

mSATA Slot (CN4)

Pin Signal
1 N/C
3 N/C
5 N/C
7 N/C
9 GND
11 N/C
13 N/C
15 GND
17 N/C
19 N/C
21 GND
23 SATA0_RX_DP
25 SATA0_RX_DN
27 GND
29 GND
31 SATA0_TX_DN
33 SATA0_TX_DP
35 GND
37 GND
39 +3.3V_DUAL
41 +3.3V_DUAL
43 GND
45 N/C
47 N/C
49 N/C
51 N/C
NOTE: screw type is M2*0.4
12
Pin Signal
2 +3.3V_DUAL
4 GND
6 +1.5V
8 N/C
10 N/C
12 N/C
14 N/C
16 N/C
18 GND
20 N/C
22 BUF_PLT_RST_N
24 +3.3V_DUAL
26 GND
28 +1.5V
30 SMB_CLK_RESUME
32 SMB_DATA_RESUME
34 GND
36 USB9-
38 USB9+
40 GND
42 N/C
44 N/C
46 N/C
48 +1.5V
50 GND
52 +3.3V_DUAL
Board and Pin Assignments
