IMB500 LGA1151 ATX Motherboard
2.2

Rear I/O

1 Internal USB Headers (CN21~CN24)
2 GPIO Header (CN6)
3 Debug Header
4 COM3~COM6 Headers (CN15~CN18)
5 AT/ATX Mode Select Jumper (JP2)
6 Front Panel Header (CN5)
7 SMBus Header (CN31)
8 System Fan Connectors (CN42, CN43)
9 Voltage Monitor Header (CN32)
10 CPU Fan Connector (CN41)
11 COM2 Header (CN44)
12 COM2 Mode Select Jumper-1 (JP7)
13 COM2 Mode Select Jumpers-2 (JP9, JP10)
14 COM2 Data/Power Select Jumper (JP8)
15 COM1 Mode Select Jumper-1 (JP3)
16 COM1 Mode Select Jumpers-2 (JP5, JP6)
17 COM1 Data/Power Select Jumper (JP4)
18 Front Audio Header (CN14)
19 Clear CMOS Jumper (JP1)
6
Jumpers/Headers/Connectors
20 PCI Slots (CN35~CN38)
21 mSATA Slot (CN4)
22 SATA 3.0 Connectors (CN26~CN30)
23 PCI-Express Mini Card Connector (CN3)
24 ATX1 Power Input Connector (CN34)
25 DIMM Sockets (DIMM1~DIMM4)
26 CPU Socket
27 ATX2 CPU Power Input Connector (CN33)
28 PCI-Express x4 Slots (CN39, CN40)
29 SIM Card Slot (CN25)
30 PCI-Express x16 Slot (CN1)

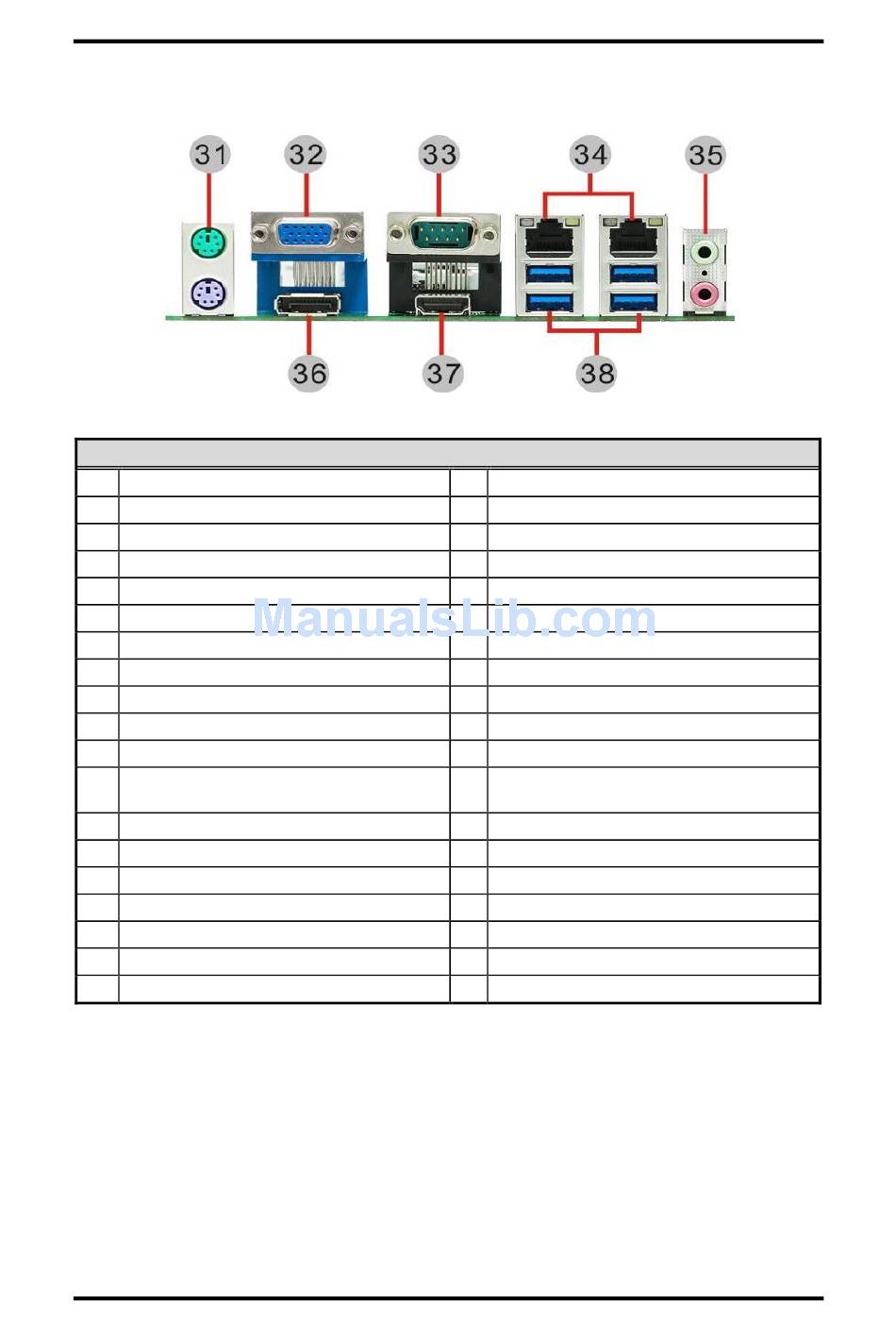

PS/2 Keyboard and Mouse Connector
31
(CN8)
32 VGA Connector (CN45)
33 COM Connector (CN9)
34 LAN1 and LAN2 Connectors (CN11, CN12)
35 Audio Jack (CN13)
36 DisplayPort Connector (CN2)
37 HDMI Connector (CN20)
38 USB 3.0 Connectors (CN11, CN12)
