Periodic maintenance and adjustment

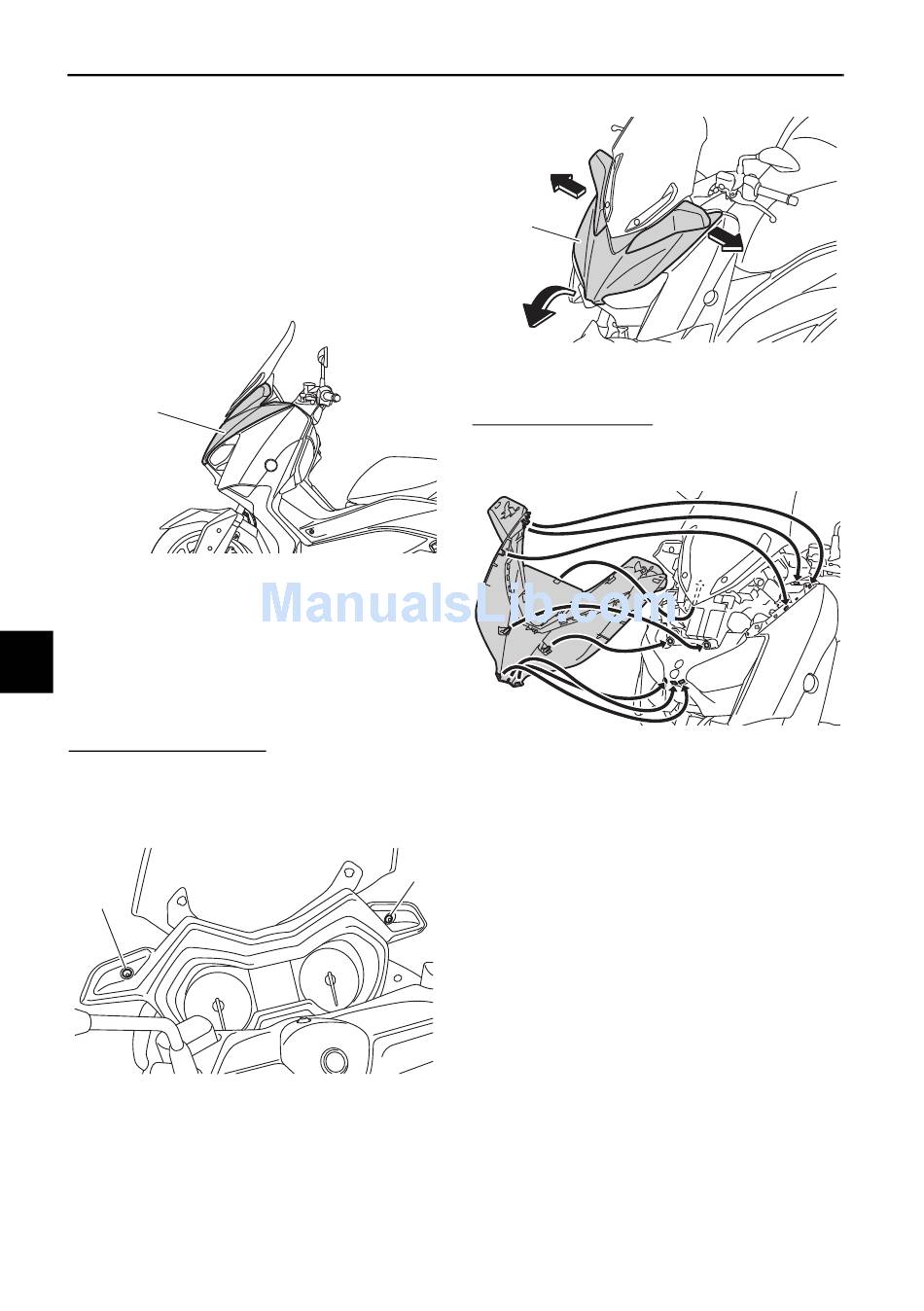

Removing and installing the
panel
The panel shown needs to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time the panel needs
to be removed and installed.
1
1. Panel A
7
Panel A
To remove the panel
Remove the screws, and then pull the
panel outward and slide it forward as
shown.
1
1. Screw
EAU18752
1
1. Panel A
To install the panel
Place the panel in the original position,
and then install the screws.
EAU78530
1
7-7
