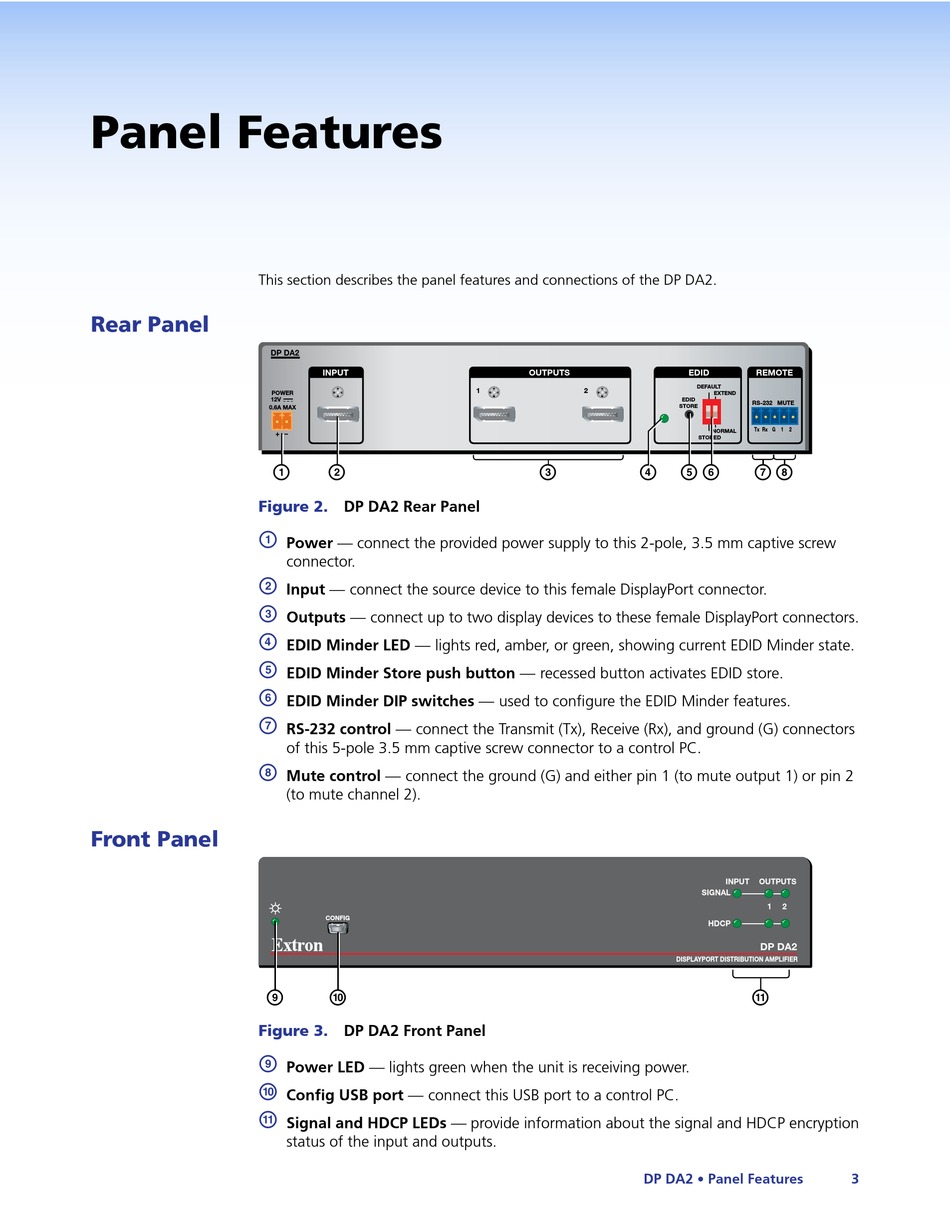

Panel Features

This section describes the panel features and connections of the DP DA2.

Rear Panel

0.6A MAX
Figure 2.
a
b
c
d
e
f
g
h

Front Panel

i
Figure 3.
i
j
k
DP DA2
INPUT
POWER
12V
a b
DP DA2 Rear Panel
Power — connect the provided power supply to this 2-pole, 3.5 mm captive screw
connector.
Input — connect the source device to this female DisplayPort connector.
Outputs — connect up to two display devices to these female DisplayPort connectors.
EDID Minder LED — lights red, amber, or green, showing current EDID Minder state.
EDID Minder Store push button — recessed button activates EDID store.
EDID Minder DIP switches — used to configure the EDID Minder features.
RS-232 control — connect the Transmit (Tx), Receive (Rx), and ground (G) connectors
of this 5-pole 3.5 mm captive screw connector to a control PC.
Mute control — connect the ground (G) and either pin 1 (to mute output 1) or pin 2
(to mute channel 2).
CONFIG
j
DP DA2 Front Panel
Power LED — lights green when the unit is receiving power.
Config USB port — connect this USB port to a control PC.
Signal and HDCP LEDs — provide information about the signal and HDCP encryption
status of the input and outputs.
OUTPUTS
1 2
c d e f
DP DA2 • Panel Features
EDID REMOTE
DEFAULT
EXTEND
EDID
RS-232 MUTE
STORE
Tx Rx G 1 2
NORMAL
STORED
g h
INPUT OUTPUTS
SIGNAL
1 2
HDCP
DP DA2
DISPLAYPORT DISTRIBUTION AMPLIFIER
k
