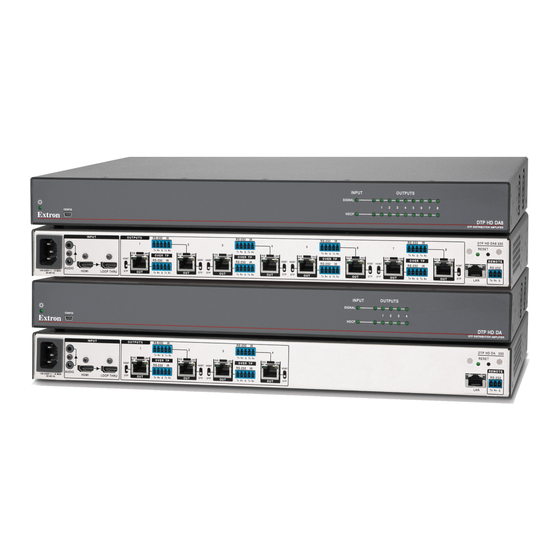

DTP HD DA 4K Series
DTP HDMI Distribution Amplifiers
68-2545-01 Rev. D
04 18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTP HD DA 4K Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Extron electronics DTP HD DA 4K Series

  • Page 1 User Guide Video Products DTP HD DA 4K Series DTP HDMI Distribution Amplifiers 68-2545-01 Rev. D 04 18...
  • Page 2 Safety Instructions Safety Instructions • English Istruzioni di sicurezza • Italiano WARNING: This symbol, , when used on the product, is intended to AVVISO: Questo simbolo, ,quando viene utilizzato il prodotto, serve alert the user of the presence of uninsulated dangerous voltage within ad avvisare l’utente della presenza di tensioni pericolose non isolate the product’s enclosure that may present a risk of electric shock.
  • Page 3 安全記事 • 繁體中文 안전 지침 • 한국어 警 告 경고: 이 기호 가 제품에 사용될 경우, 제품의 인클로저 내에 있는 若產品 上使 用此 符 號 , 是 為了提 醒 使 用者,產品 機 殼內 存 在 著 접지되지 않은 위험한 전류로 인해 사용자가 감전될 위험이 있음을 可能會導致觸電之風險的未絕緣危險電壓。 경고합니다. 注意 若產品上使用此符號, 是為了提醒使用者, 設備隨附的用戶手冊中有 주의: 이 기호 가 제품에 사용될 경우, 장비와 함께 제공된 책자에 나와 重要的操作和維護 (維修) 説明。...
  • Page 4 ATTENTION : Risque d’explosion. Ne pas remplacer la pile par le mauvais type de pile. Débarrassez-vous des piles usagées selon le mode d’emploi. Copyright © 2018 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners.
  • Page 5 Conventions Used in this Guide Notifications The following notifications are used in this guide: CAUTION: Risk of minor personal injury. ATTENTION : Risque de blessure mineure. ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. TIP: A tip provides a suggestion to make working with the application easier.
  • Page 7: Table Of Contents

    Introduction ........21 ............1 Using the Internal Web Pages ......21 DTP HD DA 4K Series Description ...... 1 Accessing the Internal Web Pages ....21 Features ............. 1 Setting Up the Device with the Internal Application Diagrams .......... 3 Web Pages ..........
  • Page 8 Extron DTP HD DA 4K Series • Introduction viii...
  • Page 9: Introduction

    RS-232 and IR signals to an HDBaseT-enabled device. • HDMI input loop‑through — The DTP HD DA 4K series features an active local HDMI output for local monitor support or system expansion. •...
  • Page 10 HDMI sources. • Remote powering of DTP receivers — The DTP HD DA 4K series can provide power to four or eight DTP receivers over the twisted pair connections, eliminating the need for separate power supplies at the remote units.
  • Page 11: Application Diagrams

    Application Diagrams The diagrams below show typical applications for the DTP HD DA 4K series. Extron Tablet Laptop Laptop Laptop TLP Pro 320C 3.5" Cable Cubby iPad TCP/IP TouchLink Pro Network Combined Combined LAPTOP DISPLAY ON Touchpanel DISPLAY OFF MUTE...
  • Page 12: Installation And Operation

    • L’installation et l’entretien doivent être effectués par le personnel autorisé uniquement. The DTP HD DA 4K series of distribution amplifiers can be placed on a table, mounted in a rack, or mounted under a desk or table. Tabletop Use Attach the included rubber feet to the bottom of the unit and place it in any convenient location.
  • Page 13: Front Panel Features

    Output Signal LEDs — Light green when a signal is detected on the HDMI outputs. Output HDCP LEDs — Light green when HDCP presence is detected on the HDMI outputs. Extron DTP HD DA 4K Series • Installation and Operation...
  • Page 14: Rear Panel Features

    DTP/HDBaseT outputs — Use STP cables to connect these 4 (DA4 models) or 8 (DA8 models) outputs (see Figure 4 on the previous page) to the inputs of a compatible receiver (see Twisted Pair Recommendations for DTP Communication on page 9 Extron DTP HD DA 4K Series • Installation and Operation...
  • Page 15 RS-232 device to this 3-pole, 3.5 mm captive screw connector and configure it as follows: 9600 baud rate, 8 data bits,1 stop bit, no parity (see Wiring for RS‑232 Extron DTP HD DA 4K Series • Installation and Operation...
  • Page 16: Connecting The Input Source

    Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket as shown ( While holding the connector securely against the lacing bracket, tighten the tie wrap, then remove any excess length ( Extron DTP HD DA 4K Series • Installation and Operation...
  • Page 17: Twisted Pair Recommendations For Dtp Communication

    Do not comb the cable for the first 20 meters, where cables are straightened, aligned, and secured in tight bundles. • Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners. • Separate twisted pair cables from AC power cables. Extron DTP HD DA 4K Series • Installation and Operation...
  • Page 18: Wiring For Rs-232 Control

    Pin 5 = G Ground Ground Tx Rx G DB9 Pin Locations Female Computer DTP HD DA 4K Figure 9. Wiring the DTP HD DA 4K Series for RS‑232 Control Extron DTP HD DA 4K Series • Installation and Operation...
  • Page 19: Sis Commands

    The copyright message is displayed upon connecting to a DA via TCP/IP or Telnet or after a power cycle via RS-232. An example is provided below. (©) Copyright 20yy, Extron Electronics, DTP HD DA8 4K 330, Vx.xx, 60-xxxx-01 Mon, 6 Feb 2017 11:27:33...
  • Page 20: Symbols Used In This Guide

    = Output 5V mode 0 = Auto (5V enabled when 5V source present, else off) 1 = 5V always enabled (default) RS-232 insertion mode 0 = RS-232 pass through (default) 1 = Embedded RS-232 Extron DTP HD DA 4K Series • SIS Commands...
  • Page 21 Video mute 0 = Video mute disabled 1 = Video mute 2 = Video and sync mute X6& = View HDCP Notification 0 = Green Screen (default); 1 = Black Screen Extron DTP HD DA 4K Series • SIS Commands...
  • Page 22: Error Messages

    (720p @ 60 Hz, 2-Ch audio). A table showing the factory loaded EDID options is shown on the following page. The EDID memory location is labelled for consistency with the value in the SIS commands. Extron DTP HD DA 4K Series • SIS Commands...
  • Page 23: Dtp Hd Da 4K Series Edid Memory Locations

    Extron DTP HD DA 4K Series • SIS Commands...
  • Page 24: Command And Response Table For Sis Commands

    Query video bit depth for all Video bit depth of outputs 0 to VBITD • •... 4 (0 = loop out) for DA4, or 0 to outputs 8 (0 = loop out) for DA8 Extron DTP HD DA 4K Series • SIS Commands...
  • Page 25 EDID filename EDID table slot to filename = 1 - 66 Send file from unit to PC File data (128 or 256 bytes) from unit to Send filename filename connected PC Extron DTP HD DA 4K Series • SIS Commands...
  • Page 26 Set all ports to pass through or X1)] *LRPT LrptO Ethernet insertion View Insertion Port Setup View output insert setting View port setting X1)] LRPT = 1-4 (DA4) or 1-8 (DA8) Extron DTP HD DA 4K Series • SIS Commands...
  • Page 27 DTP HD DA8 4K 330 Query firmware version X&] Query firmware version with Firmware build *Q/q x.xx.xxxx build Reset settings (retain IP ZXXX settings) Reset all settings (including IP ZQQQ settings) Extron DTP HD DA 4K Series • SIS Commands...
  • Page 28 N 0 HDCP HdcpN 0 = 0 = Green Screen (default) Set black screen 1 = Black Screen N 1 HDCP HdcpN 1 View HDCP notifications X6&] Verbose 2/3 N HDCP X6&] HdcpN Extron DTP HD DA 4K Series • SIS Commands...
  • Page 29: Reference Information

    Using the Internal Web Pages Updating the Device Firmware Using the Internal Web Page The DTP HD DA 4K series Internal Web Page allows for monitoring and set up of the device via an Ethernet connection. Figure 11. DTP HD DA 4K Internal Web Page...
  • Page 30: Setting Up The Device With The Internal Web

    TCP/IP If necessary, click the Edit button to change the TCP/IP settings. RS-232 This section is non-configurable. Passwords Click the Set button to set up a password for the device. Extron DTP HD DA 4K Series • Internal Web Pages...
  • Page 31: Updating The Device Firmware

    Go to and click the tab. Download On the Download Center screen, click the link on the left sidebar menu. Software Extron DTP HD DA 4K Series • Internal Web Pages...
  • Page 32: Loading Firmware To The Da With Pcs

    The PCS dialog box opens with the Add Device... dialog box in front of it. Figure 14. Opening PCS Select the DTP HD DA 4K product from the Device Name menu. Select RS-232, USB, or TCP/IP from the menu. Connection Method Extron DTP HD DA 4K Series • Internal Web Pages...
  • Page 33 Remaining Time field shows 00.00.00 , the Progress column shows , and is displayed above the progress bar and in the 100% Completed field. Close the Firmware Loader software. Status Extron DTP HD DA 4K Series • Internal Web Pages...
  • Page 34: Loading Firmware To The Da With Internal Web

    In the Device Info section, click the Update button. Figure 15. Device Info Section Click the Browse button and locate and select the desired firmware file, then click Open. Click the Upload button. Extron DTP HD DA 4K Series • Internal Web Pages...
  • Page 35 Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
