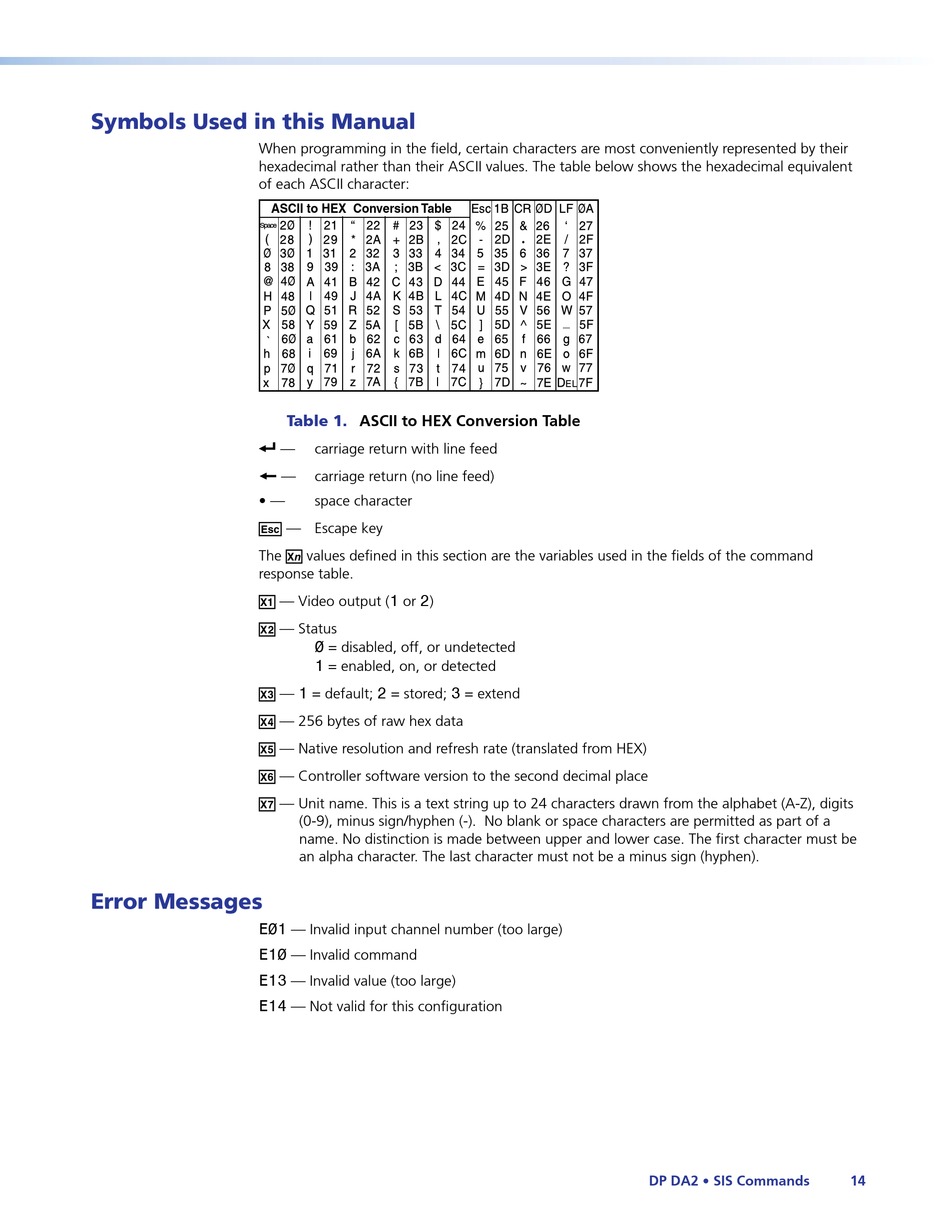

Symbols Used in this Manual

When programming in the field, certain characters are most conveniently represented by their
hexadecimal rather than their ASCII values. The table below shows the hexadecimal equivalent
of each ASCII character:
Space
]
}
• —
E
The
response table.
X!
X@
X#
X$
X%
X^
X&

Error Messages

E01 — Invalid input channel number (too large)
E10 — Invalid command
E13 — Invalid value (too large)
E14 — Not valid for this configuration
ASCII to HEX Conversion Table
Table 1.
ASCII to HEX Conversion Table
— carriage return with line feed
— carriage return (no line feed)
space character
— Escape key
X/
values defined in this section are the variables used in the fields of the command
1 or 2 )
— Video output (
— Status
0 = disabled, off, or undetected
1 = enabled, on, or detected
1 = default; 2 = stored; 3 = extend
—
— 256 bytes of raw hex data
— Native resolution and refresh rate (translated from HEX)
— Controller software version to the second decimal place
— Unit name. This is a text string up to 24 characters drawn from the alphabet (A-Z), digits
(0-9), minus sign/hyphen (-). No blank or space characters are permitted as part of a
name. No distinction is made between upper and lower case. The first character must be
an alpha character. The last character must not be a minus sign (hyphen).
.
DP DA2 • SIS Commands 14
