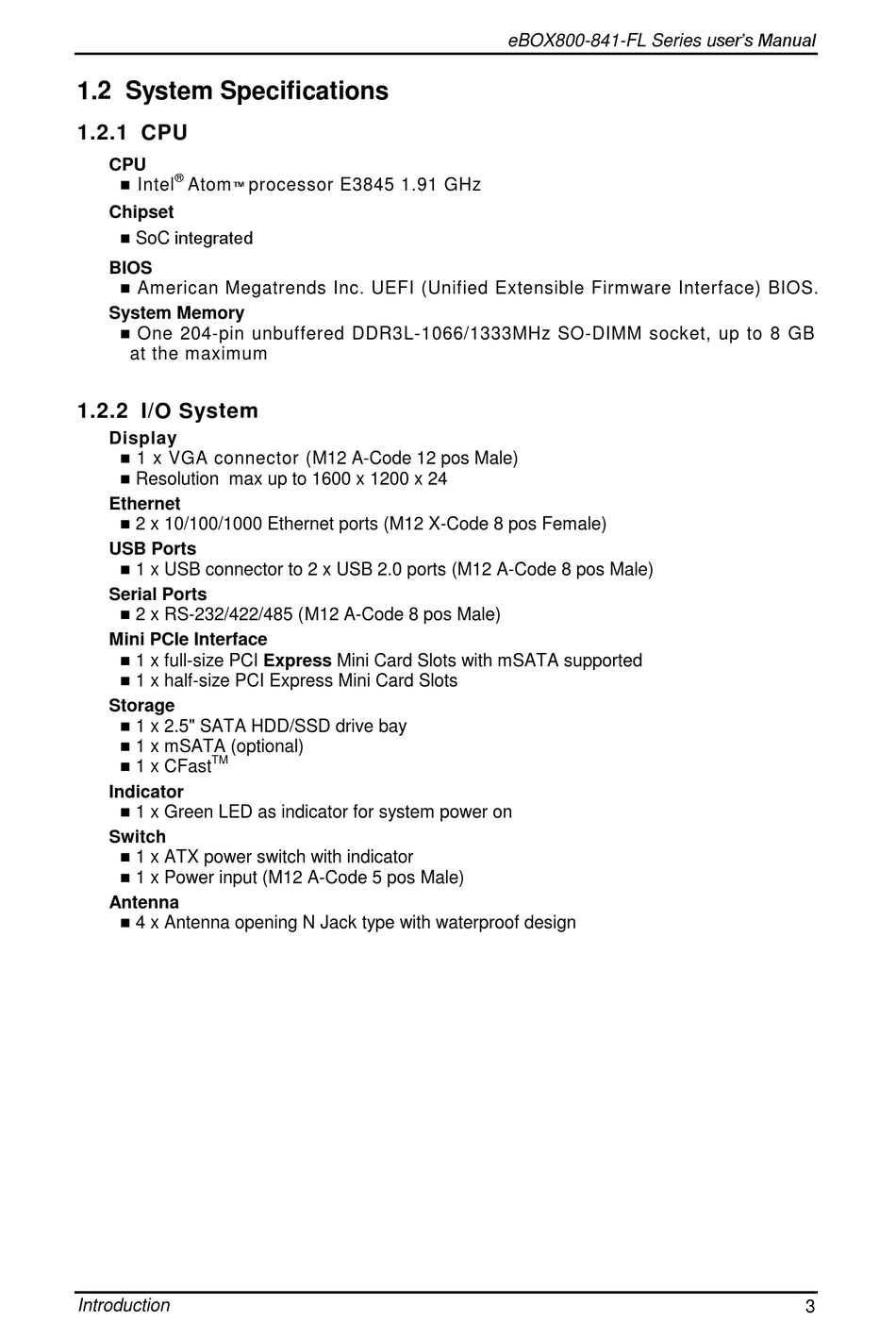

1.2 System Specifications

1.2.1 CPU

CPU
®
 ™
Intel Atom
Chipset
SoC integrated

BIOS
 American Megatrends Inc. UEFI (Unified Extensible Firmware Interface) BIOS.
System Memory
 One 204-pin unbuffered DDR3L-1066/1333MHz SO-DIMM socket, up to 8 GB
at the maximum

1.2.2 I/O System

Display
 1 x VGA connector (M12 A-Code 12 pos Male)
 Resolution max up to 1600 x 1200 x 24
Ethernet
 2 x 10/100/1000 Ethernet ports (M12 X-Code 8 pos Female)
USB Ports
 1 x USB connector to 2 x USB 2.0 ports (M12 A-Code 8 pos Male)
Serial Ports
 2 x RS-232/422/485 (M12 A-Code 8 pos Male)
Mini PCIe Interface
 1 x full-size PCI Express Mini Card Slots with mSATA supported
 1 x half-size PCI Express Mini Card Slots
Storage

1 x 2.5" SATA HDD/SSD drive bay
 1 x mSATA (optional)
TM
 1 x CFast
Indicator
 1 x Green LED as indicator for system power on
Switch

1 x ATX power switch with indicator
 1 x Power input (M12 A-Code 5 pos Male)
Antenna

4 x Antenna opening N Jack type with waterproof design
Introduction
processor E3845 1.91 GHz
