2.4 Installation of WI-FI Mini PCIe Module (half-size)

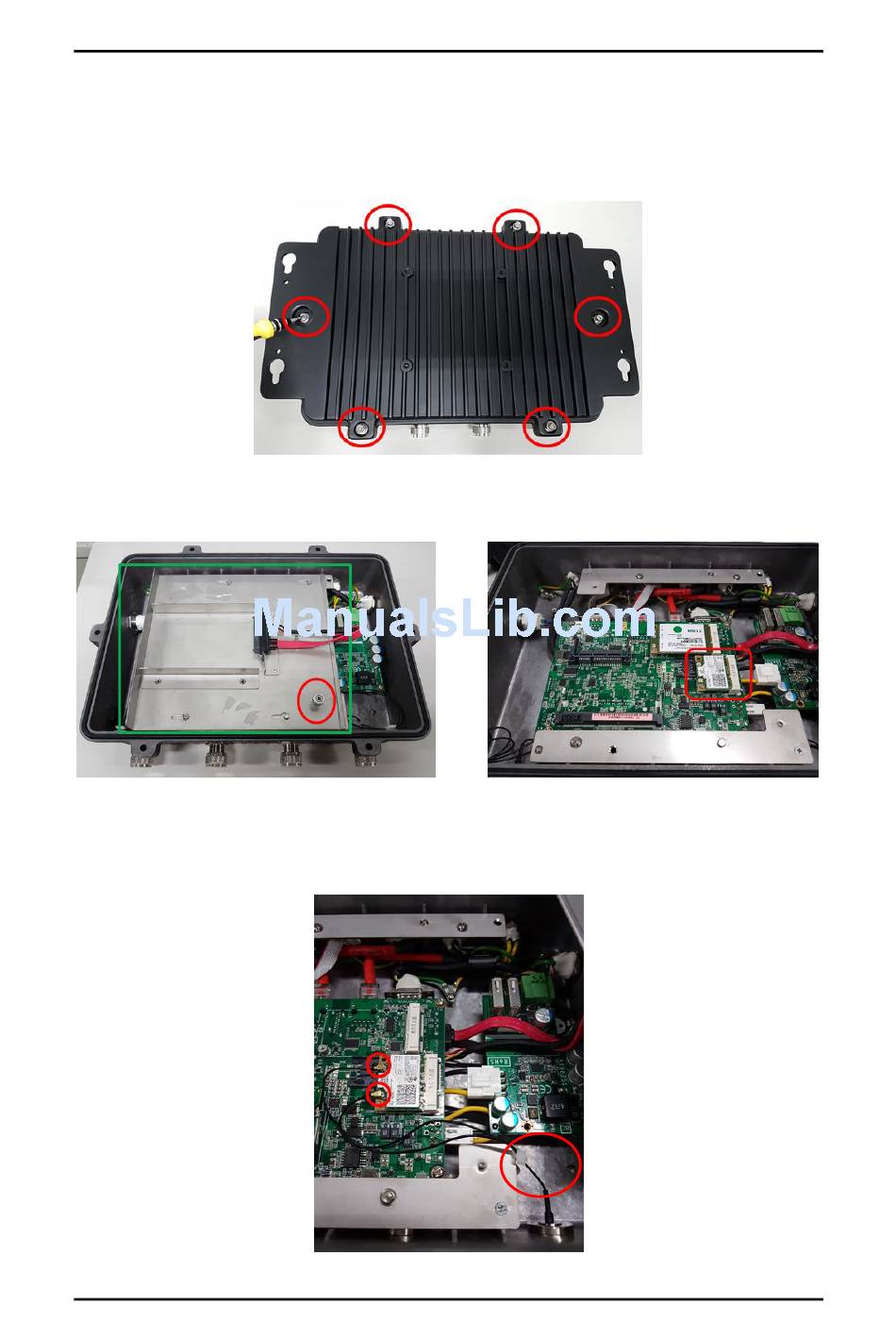

Step 1 Turn off the system and unplug the power cord.
Step 2 Turn the system upside down to locate screws at the bottom, and then
loosen all screws.
Step 3 Remove the metal plate by loosening the thumb screw, identify the WI-
FI, and then insert a WI-FI module.
Step 4 Connect SMA cable to I-PEX connector of WI-FI module and install
Antenna 3 and Antenna 4.
