2.3 Installation of CFast

Step 1 Turn off the system and unplug the power cord.

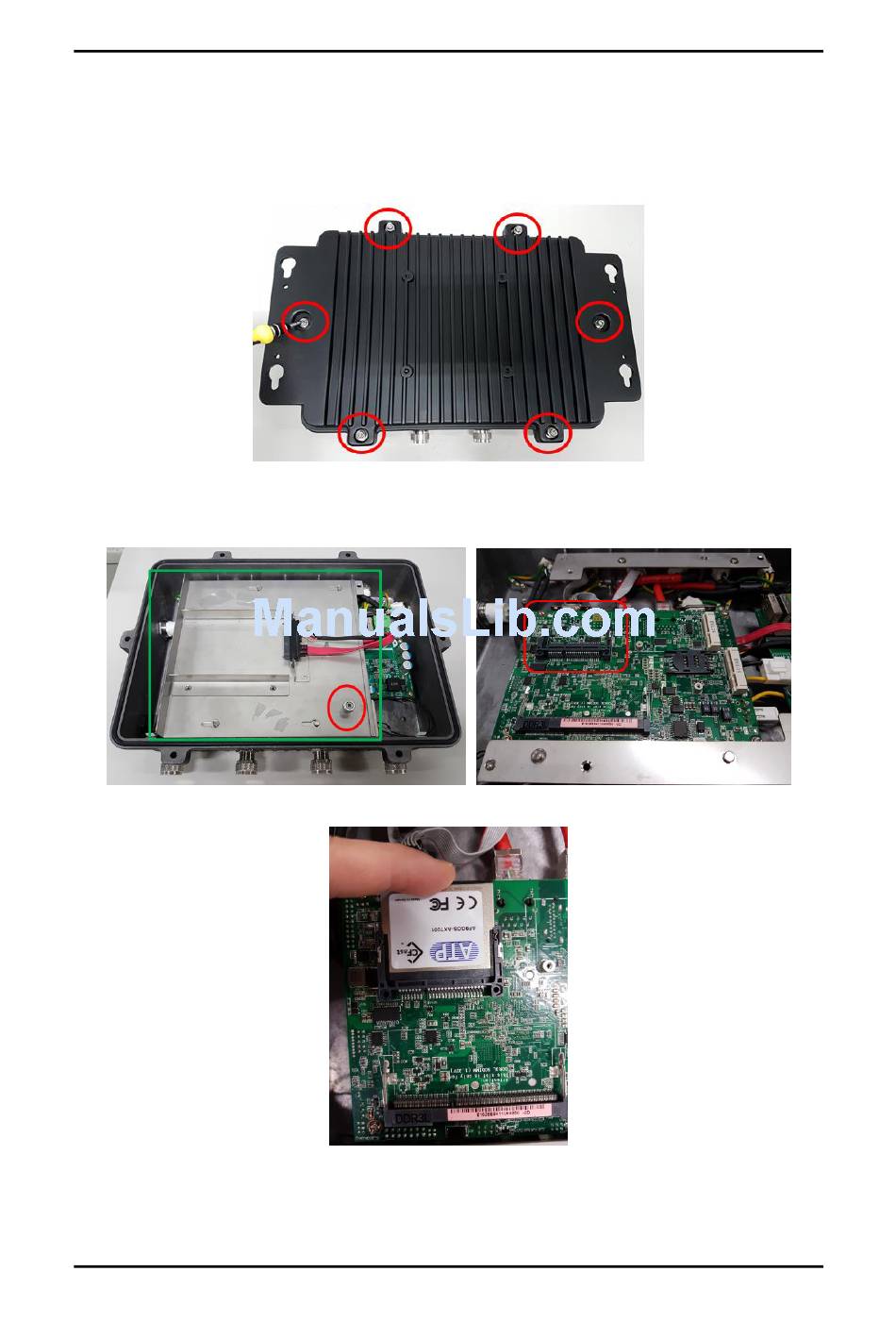

Step 2 Turn the system upside down to locate screws at the bottom, and then
loosen all screws.
Step 3 Loosen the thumb screws to remove the metal plate then locate the
TM
CFast slot on main board.
Step 4 Insert a CFast
Step 5 Recover and fasten all screws of the metal plate and bottom cover.
16
TM
Module
TM
module into the socket.
Hardware Installation
