eBOX800-841-FL Series user's Manual

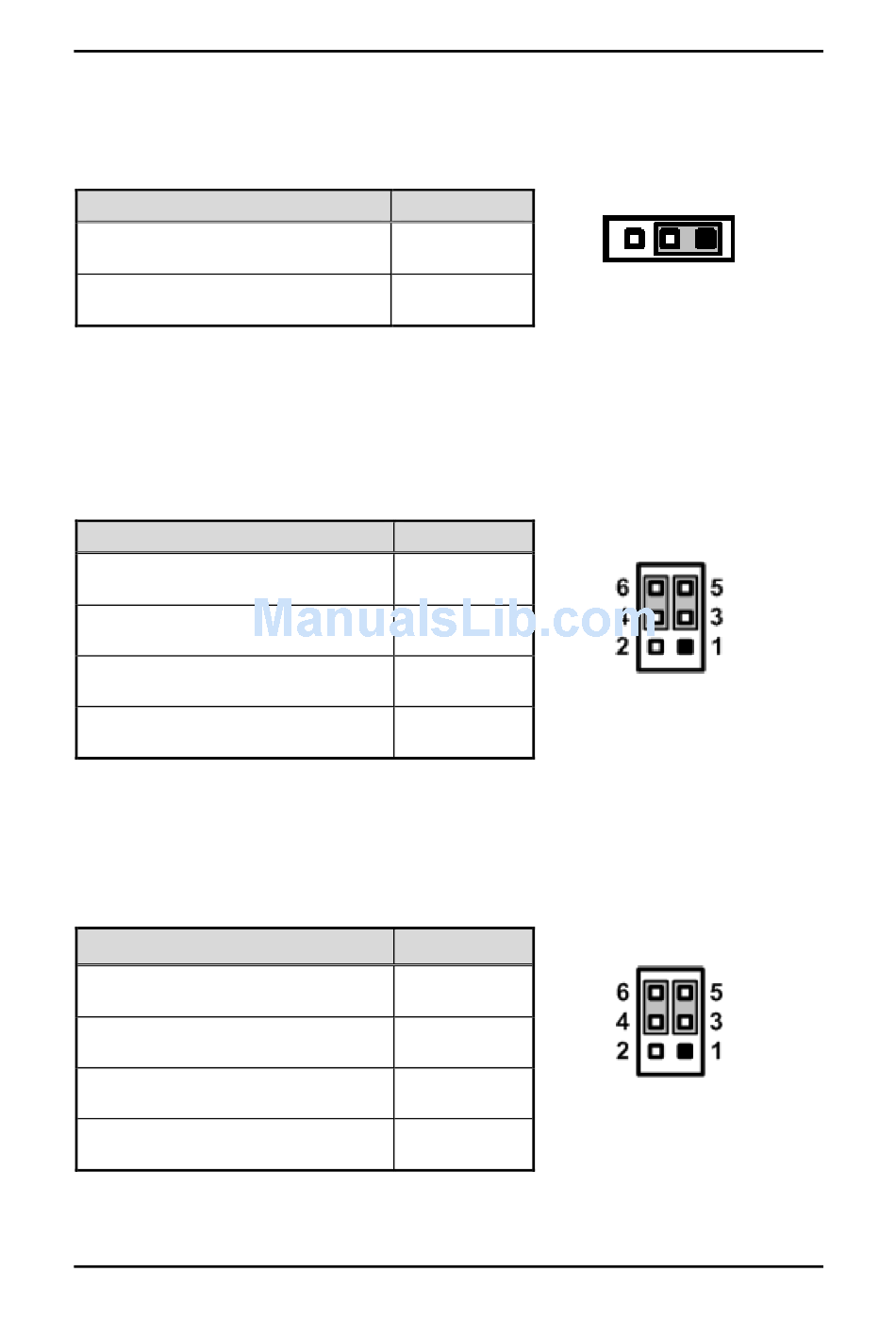

3.2.2 Auto Power On (JP10)

If JP10 is enabled for AC power input, the system will be automatically power on without
pressing soft power button. If JP10 is disabled for AC power input, it is necessary to manually
press soft power button to power on the system
Functions
Disable auto power on
Enable auto power on (Default)

3.2.3 COM 2 Data/Power Selection (JP11)

The COM2 port has +5V level power capability on DCD and +12V level on RI by setting this
jumper. When this port is set to +5V or +12V level, please make sure its communication mode
is RS-232.
Functions
Power: Set COM2 pin 1 to +5V level
Data: Set COM2 pin 1 to DCD (Default)
Power: Set COM2 pin 8 to +12V level
Data: Set COM2 pin 8 to RI (Default)

3.2.4 COM 1 Data/Power Selection (JP12)

The COM1 port has +5V level power capability on DCD and +12V level on RI by setting this
jumper. When this port is set to +5V or +12V level, please make sure its communication mode
is RS-232.
Functions
Power: Set COM1 pin 1 to +5V level
Data: Set COM1 pin 1 to DCD (Default)
Power: Set COM1 pin 9 to +12V level
Data: Set COM1 pin 9 to RI (Default)
24
Settings
1-2 closed
2-3 closed
Settings
1-3 closed
3-5 closed
2-4 closed
4-6 closed
Settings
1-3 closed
3-5 closed
2-4 closed
4-6 closed
1 2 3
1
Jumper & Connector Settings
