C Fuel
level audible indication
refueling)
1. With the starter key at the "OFF" position, press the
the user setting switch (switch 2) or the display
selector switch (switch 3), and the fuel level can be
checked with buzzer sound.
2. Start refueling the machine. The buzzer beeping
intervals vary according to how much fuel is poured
into the tank. As the tank fills, the buzzer sounds
almost continuously.
3. While refueling the machine, listen to the buzzer to
know how much the fuel tank is filled.
4. If fuel is poured too slowly, the buzzer sound gets
interrupted. When it is poured again as usual, the
buzzer restarts sounding.
5. To stop refueling halfway (before filling up), press the
fuel level audible indication switch or leave as it is (not
refueling) for a while. The buzzer stops sounding.
(1) User setting switch (switch 2)
(2) Display selector switch (switch 3)
switch (when

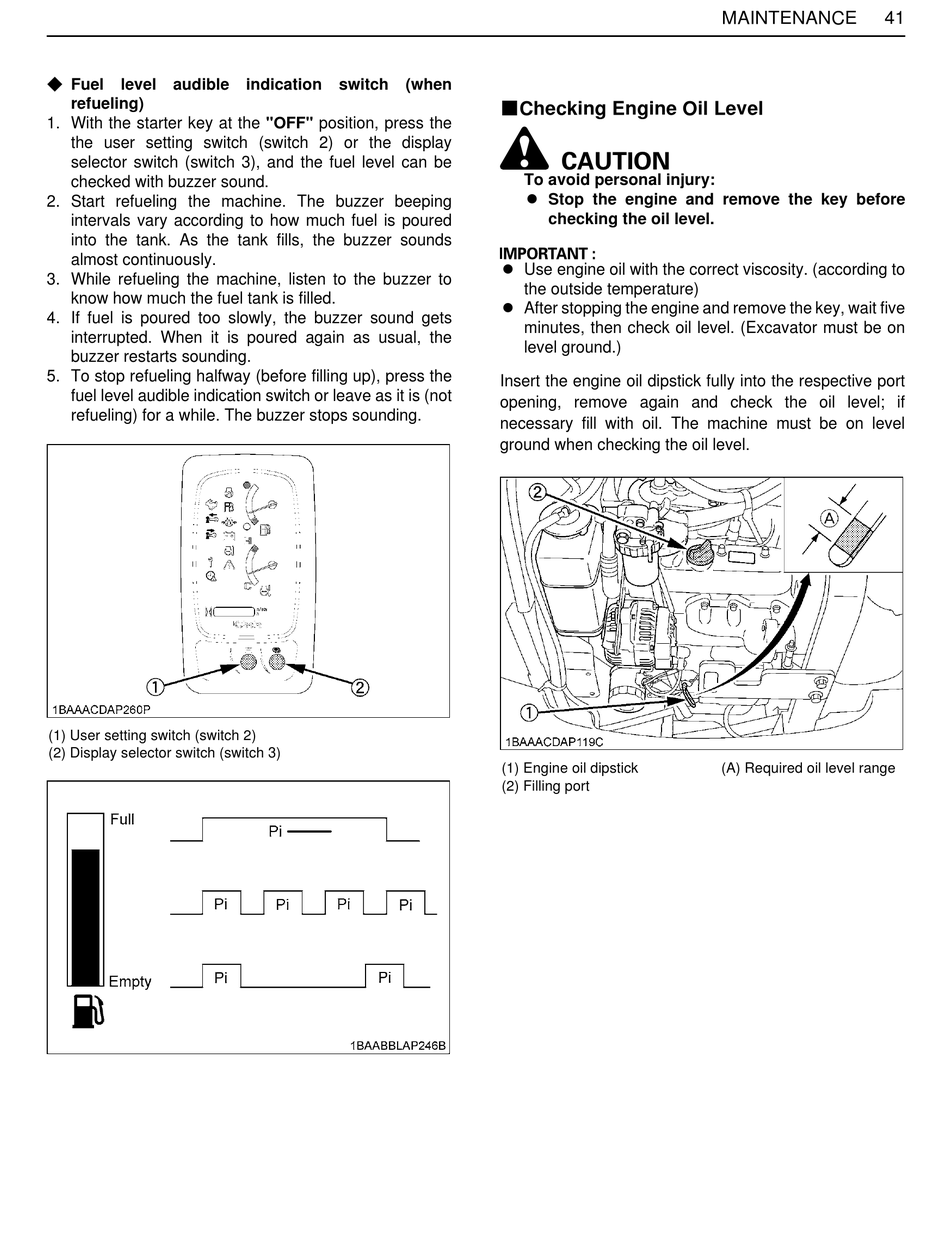

BChecking Engine Oil Level
A Use engine oil with the correct viscosity. (according to
A After stopping the engine and remove the key, wait five
Insert the engine oil dipstick fully into the respective port
opening, remove again and check the oil level; if
necessary fill with oil. The machine must be on level
ground when checking the oil level.
(1) Engine oil dipstick
(2) Filling port
To avoid personal injury:
A Stop the engine and remove the key before
checking the oil level.
the outside temperature)
minutes, then check oil level. (Excavator must be on
level ground.)
MAINTENANCE 41
(A) Required oil level range
