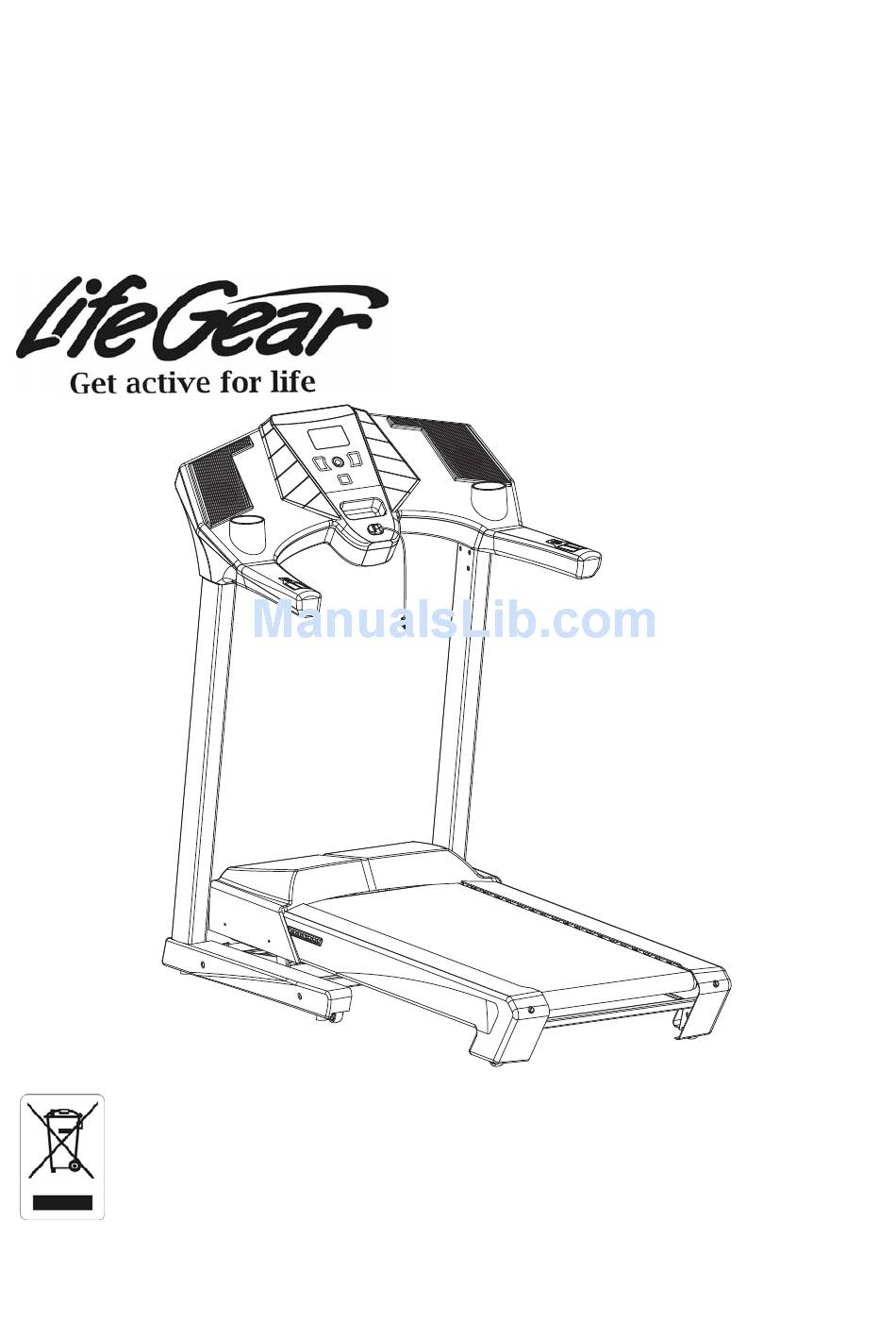

MEGAHERTZ PROGRAMMABLE
MOTORIZED TREADMILL
ITEM NO: 98820
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.

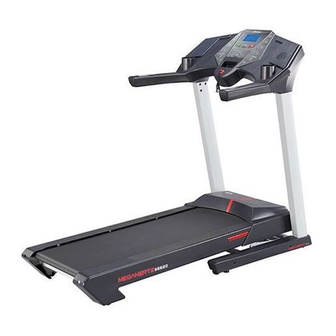

The specifications of this product may vary from this photo and are subject to change
without prior notice.
2014, March

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 98820 and is the answer not in the manual?

Questions and answers

Related Manuals for LifeGear 98820

Summary of Contents for LifeGear 98820

  • Page 1 MEGAHERTZ PROGRAMMABLE MOTORIZED TREADMILL ITEM NO: 98820 OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and are subject to change without prior notice.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARRANTY ------------------------------------------------------------------------------ 2 IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3 PARTS LIST -------------------------------------------------------------------------------- 5 HARDWARE AND TOOLS PACK ---------------------------------------------------- 7 OVERVIEW DRAWING ----------------------------------------------------------------- 8 ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 9 LIFTING UP & SETTING DOWN THE TREADMILL ----------------------------- 12 MOVING THE TREADMILL ------------------------------------------------------------ 13 OPERATING THE COMPUTER ------------------------------------------------------ 14 CARE, MAINTENANCE &...

  • Page 3: Warranty

    ONE YEAR LIMITED WARRANTY LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Basic precautions, including the following important safety instructions should always be followed when using this treadmill. Read all instructions before using this treadmill. DANGER: To reduce the risk of electric shock, always unplug the treadmill from the electrical outlet immediately after using and before cleaning, assembling, or servicing the treadmill.
  • Page 5 Always hold on to the handrails while using the treadmill. Always make sure the storage latch is in place when folding and moving the treadmill. Do not leave children who are under 12 years-old unsupervised near or on the treadmill. To disconnect, turn all controls to the off position, then remove plug from the wall outlet.

  • Page 6: Parts List

    PARTS LIST Description Qty No. Description Cross Recessed Pan Head Bolt 001 Base Frame 1 031 M4x8 002 Main Frame 1 032 Cable Tie 4x150 Cross Recessed Pan Head 003 Left Handlebar Support Tube 1 033 Tapping Screw ST4.2x13 004 Right Handlebar Support Tube 1 034 Hexagon Head Bolt M10x50 005 Incline Frame 1 035 Hexagon Head Bolt M10x65...
  • Page 7 PARTS LIST Description Qty No. Description Cross Recessed Pan Head 053H Left Computer Panel Sticker Tapping Screw ST4.2x9.5 Right Computer Panel Cross Recessed Pan Head 053I Sticker Tapping Screw M4x25 053J Safety Tether Key Plate 068 Wire Cap (6N-4) Cross Recessed Pan Head 053K 069 Switch, AC Power Tapping Screw ST3x8...

  • Page 8: Hardware And Tools Pack

    HARDWARE AND TOOLS PACK (65) Hexagon Head Bolt M10x60 4 PCS 5mm Allen Wrench with Phillips Screwdriver 1 PC 6mm Allen Wrench 1 PC (18) Flat Washer Ø8 8 PCS (61) Hexagon Socket Head Cap Bolt M8x55 8 PCS Double Open End Wrench 14-17 1 PC (33) Cross Recessed Pan Head...

  • Page 9: Overview Drawing

    OVERVIEW DRAWING...

  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Tool: Double Open End Wrench 14-17 Step 1 Remove the treadmill from the carton and place it on a level flat surface. Please always use the aid of a second person when removing the treadmill from the carton. Connect the Sensor Wire I (71) from the Base Frame (1) to the Sensor Wire II (72) from the Right Handlebar Support Tube (4).
  • Page 11 Tool: 5mm Allen Wrench with 61 18 Philips Screwdriver Step 2 Connect the Sensor Wire II (72) from the Right Handlebar Support Tube (4) to the wire that comes from the Computer (53). It is recommended to have a second person assist with this step.
  • Page 12 Tool: 5mm Allen Wrench with Philips Screwdriver Step 3 Attach both Left and Right Base Covers (42, 43) onto Base Frame with four St4.2x13 Cross Recessed Pan Head Tapping Screws (33). Tighten bolts with the 5mm Allen Wrench with Phillips Screwdriver provided. Hardware: (33) Cross Recessed Pan Head Tapping Screw ST4.2x13...

  • Page 13: Lifting Up & Setting Down The Treadmill

    LIFTING UP & SETTING DOWN THE TREADMILL LIFTING UP THE TREADMILL Firmly grasp the back end of the treadmill with both hands. Carefully lift the end of the treadmill up into the upright position until the Foot Lock Latch engages and securely locks the main frame into position.

  • Page 14: Moving The Treadmill

    MOVING THE TREADMILL Foot Plate The unit can be carefully tilted onto its transport wheels for easy moving and storage. With the treadmill in the folded locked position (foot lock latch is engaged), firmly grasp the end of the treadmill with both hands and place one foot on the Foot Plate. Next, carefully tilt the treadmill back until it rolls freely on the transport wheels.

  • Page 15: Operating The Computer

    OPERATING THE COMPUTER Flip the Master Power Switch that is located at the front of the treadmill to the ON position. The computer console will beep for 1 second before starting. Before beginning a workout session ensure that the Safety Tether Key is properly placed onto the Computer Console and the Safety Clip is securely attached to an article of your clothing.
  • Page 16 MODE: Press the MODE button to select different functions (time, distance, or calories) for setting exercise goals. Under the body fat program mode, press the MODE button to enter into the body fat program mode. To confirm the setting for user's weight, age, height, and gender in body fat program mode.
  • Page 17 INCLINE DOWN: To make backward adjustment for setting incline level in U1 or U2 (Custom User) program mode. Makes incline adjustments during all training periods on different training modes. The incline adjustment available range is from 0 to 20 levels. INSTANT INCLINE (3 / 6 / 9 / 12): Press one of the INSTANT INCLINE buttons (3 / 6 / 9 / 12) on the computer console and the split window of INCLINE will display the incline level that you have pressed and the incline level change to 3-level, 7-level, 11-level, or 15-level...
  • Page 18 CALORIES: Displays the total calories burned during your workout. Press the START button on the computer to start exercise. The running belt starts moving with an initial speed of 0.8 KPH. You may press the SPEED + or SPEED - button on the computer console to increase or decrease the running speed during exercise.
  • Page 19 Standard Body Fat  Standard Body Fat  Gender  High Body Fat  (<30 Years Old)  (> 30 Years Old)  Male  14‐20%  17‐23%  >25%  Female  17‐24%  20‐27%  >30%  TRAINING IN H1 (HEART RATE CONTROL) PROGRAM MODE: In STOP mode before training. Press the PROGRAM button on the computer console to select H1 program mode until the screen displays H1. Press the MODE button to confirm the selected program and the spilt window of PULSE will display 100 (TARGET HEART RATE).

  • Page 20: Care, Maintenance & Troubleshooting Guide

    start exercise. The running speed and incline level will change automatically according to your own pre-set program throughout the workout. When the pre-set training time counts down to 0:00, the computer will beep to alert you and the treadmill will stop automatically. CARE, MAINTENANCE &...

  • Page 21: Belt Adjustment

    BELT ADJUSTMENT The running belt is pre-adjusted to the running deck at the factory, but after prolonged use it can stretch and require readjustment. To adjust the belt, turn on the main power switch of the treadmill and let the belt run at a speed of 2-3 KPH. Use the 6mm Allen Wrench provided to turn the rear roller adjustment bolts in order to centre the belt.

  • Page 22: Lubrication

    LUBRICATION Lubricating under the running belt will ensure superior performance and extend its life expectancy. After the first 25 hours of use (or 2-3 months) apply some lubricant, and repeat for every following 50 hours of use (or 5-8 months). How to check running belt for proper lubrication Lift one side of the running belt and feel the top surface of the running deck.

  • Page 23: Warm Up And Cool Down Routine

    WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
  • Page 24 QUADRICEPS STRETCH With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot. INNER THIGH STRETCH Sit with the soles of your feet together and your knees pointing outward.
