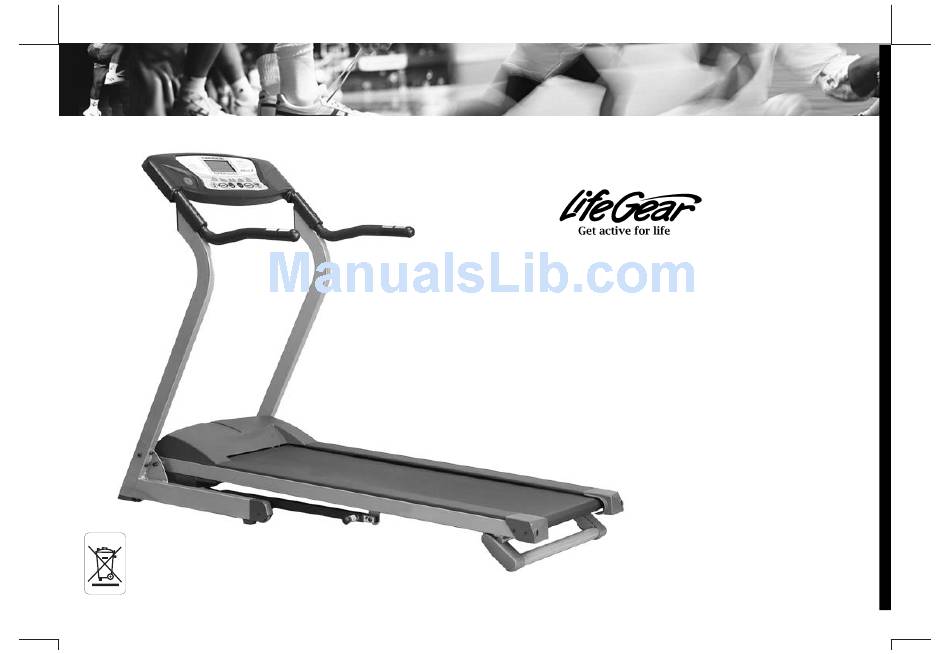

- Page 1 WIND MAKER MOTORIZED TREADMILL MODEL# 97355 OWNER'S MANUAL...
- Page 2 ONE YEAR LIMTED WARRANTY LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual. LifeGear's obligation under this warranty is limited to replacing or repairing, free of charge, any parts which may prove to be defective under normal home use.
- Page 3 Observe the following prior to use of the treadmill: DANGER: To reduce the risk of electric shock, please observe the following: Always unplug the treadmill from the electrical outlet immediately after using and before cleaning, assembling, or servicing. NOTE: Failure to follow these instructions may lead to personal injury and cause damage to the treadmill. WARNING: To reduce the risk of burns, fire, electric shock please observe the following: Never leave the treadmill unattended when plugged in.
- Page 4 This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current reducing the risk of electric shock. * This treadmill is equipped with a cord having equipment grounding connector and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
- Page 6 Part # Description Quantity Part # Description Quantity Main Frame End Cap (25*50) Base Frame Dust Cover, Up Adjustable Pad Dust Cover, Lower End Cap for #2 Screw (M4*60) Moving Wheel L-Handrail Wheel R-Handrail Rod for Moving Wheel Handlebar Screw (M4*10) End Cap for Handlebar Running Deck Computer...
- Page 7 Part # Description Quantity Part # Description Quantity L-Rear Cap Sensor Cable I (850 mm.) R-Rear Cap Sensor Cable II (1100 mm.) Incline Beam Sensor Cable III (600 mm.) Cover for Incline Beam Cylinder Bolt (M10*40) End Cap ( Bushing End Cap ( Tapping Screw (ST4*10) Fuse Box...
- Page 8 Part # Description Quantity Bolt (M8*50) --------------------------------------------------------------------------------------------------4 Bolt (M8*16) ------------------------------------------------------------------------------------------6 Spring Washer (M8) --------------------------------------------------------------------------------6 INCHES PLACE WASHER, BOLT’S END, OR SCREW ON CIRCLE TO CHECK FOR CORRECT SIZE. MILLIMETERS...
- Page 9 Step 1 Connect the Sensor Cable I (73) to the Sensor Cable II (74). Then insert the R-Handrail (35) to the Base Frame (2) and secure it with three Bolts (50) and Spring Washers (55). Repeat above steps to attach the L-Handrail (34) to the Base Frame (2).
- Page 10 Step 2 Attach the Handlebars (36) with Computer (38) onto the L and R-Handrails (34, 35) with four Bolts (43) and two Handlebar Adorners (42). Finally, connect the Sensor Cable II (74) to the Sensor Cable III (75). Step 3 Insert two End Caps (44) into the L and R-Handrails (34, 35).
- Page 11 Before beginning a workout session ensure Safety Tether Key is properly installed onto the Computer Console and the Safety Clip is securely attached to an article of your clothing. Always begin the treadmill standing on the side rails-not on the running belt. Allow the treadmill to reach a speed of at least 0.8km before walking on the running belt.
- Page 12 Fold Up the Treadmill Turn the Spring Knob (#57) in counterclockwise direction. Pull the Spring Knob (#57) and lift the rear end of Main Frame (#1) up until the Spring Knob (#57) "pops" down into the locked position and then turn the Spring Knob (#57) in clockwise to secure the treadmill in the folding up position before moving the treadmill.
- Page 13 SPEED (Km/h) PULSE TIME (Min/Sec) DISTANCE (Km) CYCLE CALORIES Increasing of physical strength Increasing of physical strength Increasing of physical strength Maintaining health Maintaining health DOWN DOWN Begin Operation: 1. Install the safety tether key on the computer and then turn on the Master Power that is located at the front of the treadmill. Manual LED is flash and then press the UP or DOWN button to select P1, P2, P3, P4, P5, or Manual.
- Page 14 DISTANCE - No preset distance target - Press the START button, distance starts counting from 0 with each 0.01km increment to maximal 99.99kms. To preset DISTANCE target in Manual mode when the Manual LED is on - Press the MODE button to select DISTANCE mode when it is flash and then press UP or DOWN button to preset distance target.
- Page 15 Functions TIME Working range from 0:00 to 99:59 minutes. Preset range from 10:00 to 90:00 (Manual mode available only) SPEED Preset range from 0.8km/h to 16.0km/h with 0.2 km/h increment or decrement. DISTANCE Working range from 0.00 km to 99.99 km. Preset range from 0.00 to 99.90 with 0.1km increment or decrement. CALORIES Working range from 0.0 to 999.9 cal.
-
Page 16: Running Belt Adjustment
Lubrication All the treadmills have been already spread with "Silicone Oil" in advance before the treadmill leaves the factory. Silicone oil is without volatility and has gradually permeated through the running belt. There will be no need to re-spread the oil in normal circumstances. To maintain the running belt, we have included a small bottle of "Silicone Oil". - Page 17 e-mail:sales@lifegear.com.tw...
