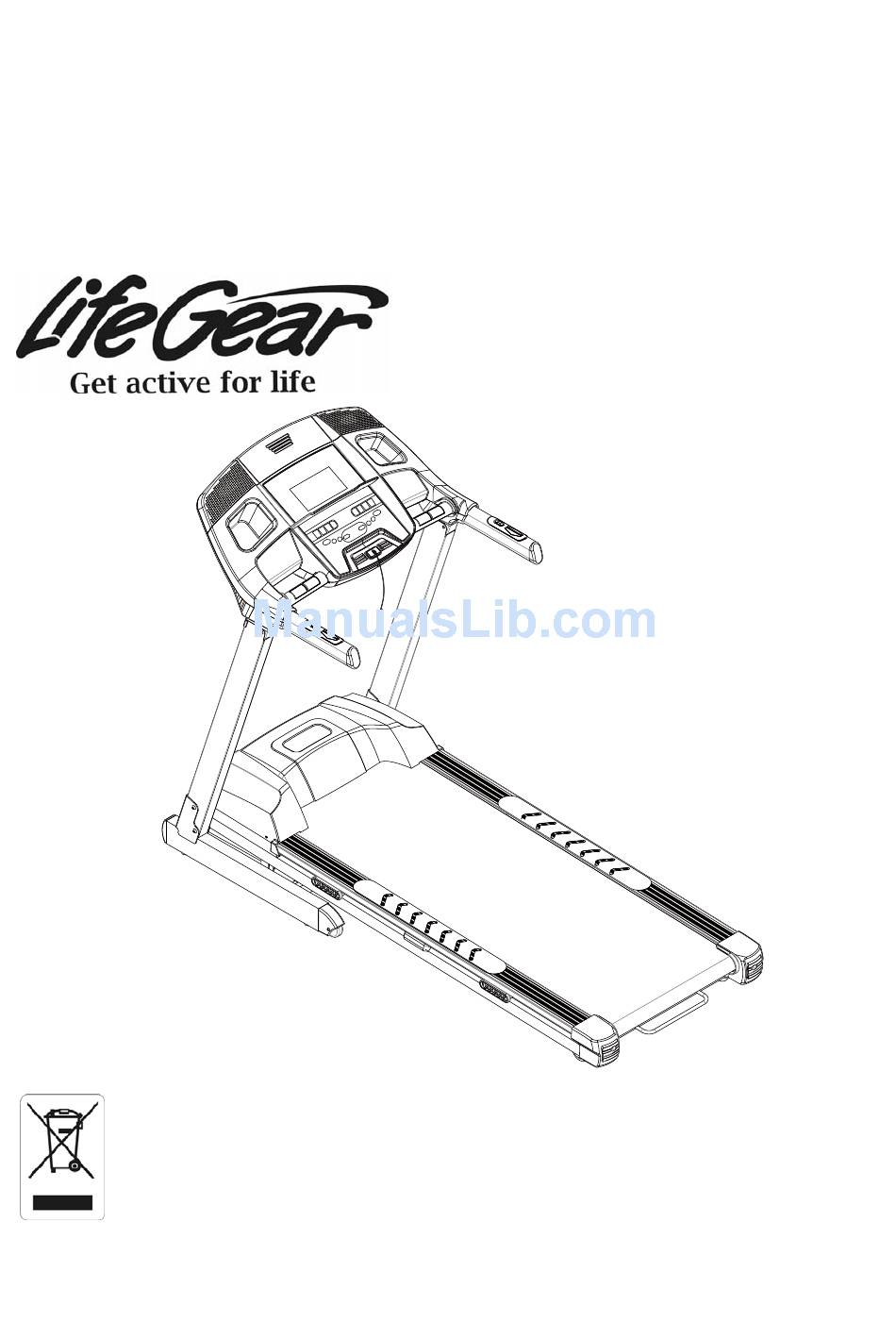

ENTERPRISE PROGRAMMABLE
MOTORIZED TREADMILL
ITEM NO: 98850
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.

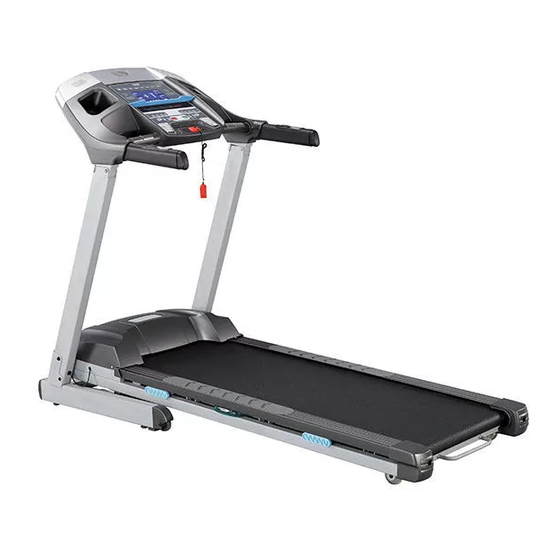

The specifications of this product may vary from this photo and are subject to change
without prior notice.
2015, April

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 98850 and is the answer not in the manual?

Questions and answers

Related Manuals for LifeGear 98850

Summary of Contents for LifeGear 98850

  • Page 1 ENTERPRISE PROGRAMMABLE MOTORIZED TREADMILL ITEM NO: 98850 OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and are subject to change without prior notice.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARRANTY ------------------------------------------------------------------------------ 2 IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3 PARTS LIST -------------------------------------------------------------------------------- 5 HARDWARE AND TOOLS PACK ---------------------------------------------------- 6 ASSEMBLY COMPONENT ------------------------------------------------------------ 7 OVERVIEW DRAWING ----------------------------------------------------------------- 8 ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 9 LIFTING UP & SETTING DOWN THE TREADMILL ----------------------------- 13 MOVING THE TREADMILL ------------------------------------------------------------ 14 OPERATING THE COMPUTER ------------------------------------------------------ 15 CARE, MAINTENANCE &...

  • Page 3: Warranty

    ONE YEAR LIMITED WARRANTY LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Basic precautions, including the following important safety instructions should always be followed when using this treadmill. Read all instructions before using this treadmill. DANGER: To reduce the risk of electric shock, always unplug the treadmill from the electrical outlet immediately after using and before cleaning, assembling, or servicing the treadmill.
  • Page 5 Always hold on to the handrails while using the treadmill. Always make sure the storage latch is in place when folding and moving the treadmill. Do not leave children who are under 12 years-old unsupervised near or on the treadmill. To disconnect, turn all controls to the off position, then remove plug from the wall outlet.

  • Page 6: Parts List

    PARTS LIST Description Qty No. Description 001 Base Frame 1 030 Side Rail (T2.5x1122x85) 002 Main Frame 1 031 Wheel Ø64x22 003 Right Handlebar Support Tube 1 032L Left End Cover 004 Left Handlebar Support Tube 1 032R Right End Cover Rear Roller 005 Incline Frame 1 033...

  • Page 7: Hardware And Tools Pack

    PARTS LIST Description Description Handlebar Foam Grip 067 Wire Grommet (SB6R-3) (30x60x255x3.0T) Hand Pulse Sensor and Brown AC Connect Wire Control Buttons with Wire L=100 mm (L=500 mm) Extension Sensor Wire 059 Handlebar End Cap (60x30) L=1950 mm Extension Sensor Wire I 060 Computer 1 Set 070 L=750 mm...

  • Page 8: Assembly Component

    ASSEMBLY COMPONENT (62) Safety Tether Key 1 PC...

  • Page 9: Overview Drawing

    OVERVIEW DRAWING...

  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Tool: 5mm Allen Wrench Double Open End Wrench Step 1 Remove the treadmill from the shipping carton and place it on a level flat surface. Please always use the aid of a second person when removing the treadmill from the shipping carton.
  • Page 11 Tool: 5mm Allen Wrench Step 2 Lift the Handlebar Bracket (7) up and align bolt holes. Use two Ø8xØ16xT1.5 Flat Washers (21) and two M8x20 Hexagon Socket Oval Head Bolts (43) to secure the Handlebar Bracket (7) onto the top ends of Right/Left Handlebar Support Tubes (3, 4). Semi-tighten bolts with the 5mm Allen Wrench provided.
  • Page 12 Assembly Component: (62) Safety Tether Key 1 PC Step 3 Place the Safety Tether Key (62) onto the Computer (60). Step 4 Peel off the backing paper from the Left Anti Slip Pad (35L). Set it where you want it on the left side of the Side Rail (30) and gently press it, until it sticks completely.
  • Page 13 Tool: 6mm Allen Wrench Step 5 The running belt has been adjusted to the running deck at the factory before it was shipped. At times the running belt may get slippery during shipment. After the treadmill is completely assembled, use the 6mm Allen Wrench provided to turn the both left and right rear roller adjustment bolts 1/4 turn clockwise before using the treadmill.

  • Page 14: Lifting Up & Setting Down The Treadmill

    LIFTING UP & SETTING DOWN THE TREADMILL LIFTING UP THE TREADMILL Firmly grasp the back end of the treadmill or large handle with both hands. Carefully lift the end of the treadmill up into the upright position until the Foot Lock Latch engages and securely locks the main frame into position.

  • Page 15: Moving The Treadmill

    MOVING THE TREADMILL Large Handle Transport Wheel Cap The unit can be carefully tilted onto its transport wheels for easy moving and storage. With the treadmill in the folded locked position (foot lock latch is engaged), firmly grasp the Large Handle with both hands and place one foot on the Transport Wheel Cap. Next, carefully tilt the treadmill back until it rolls freely on the transport wheels.

  • Page 16: Operating The Computer

    OPERATING THE COMPUTER Flip the Master Power Switch that is located at the front of the treadmill to the ON position. The computer console will beep for 1 second before starting. Before beginning a workout session ensure that the Safety Tether Key is properly placed onto the Computer Console and the Safety Clip is securely attached to an article of your clothing.
  • Page 17 COMPUTER BUTTON FUNCTIONS: START: Press the START button to start the treadmill. STOP: Press the STOP button to stop the treadmill. Press the STOP button to quit the program. MODE: Press the MODE button to select different function (time, distance, or calories) for setting exercise goals in manual mode.
  • Page 18 button on the computer to start exercise, the screen will countdown 3 seconds before the running belt starts moving. The running belt starts moving with an initial speed of 0.8 KPH. You may press the SPEED + or SPEED - button on the computer console to increase or decrease the running speed during exercise.
  • Page 19 until you see the split window of CALORIES begin blinking. The initial pre-set target calorie is 50 calories. Press the SPEED + or SPEED - button on the computer console to change the setting. The pre-set target calories range is from 20 to 999 calories. Once you pre-set target calories, press the START button on the computer to start exercise, the screen will countdown 3 seconds before the running belt starts moving.
  • Page 20 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED 10 10 10 10 INCLINE HEAL PROGRAM BODY FAT PROGRAM SPEED INCLINE SPEED INCLINE SPEED INCLINE 12 12 12 12 12 12 SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE...
  • Page 21 SPEED INCLINE SPEED 10 10 INCLINE SPEED INCLINE SPEED 10 10 INCLINE SPEED 10 10 INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE 12 12 12 12 12 12 SPEED 10 10 INCLINE SPEED 10 10 INCLINE SPEED INCLINE SPEED INCLINE SPEED INCLINE SPEED...
  • Page 22 SPEED 11 11 10 INCLINE SPEED 10 12 11 11 INCLINE SPEED INCLINE SPEED INCLINE SPEED 10 10 10 10 10 INCLINE 12 12 12 12 12 12 SPEED 10 10 10 10 11 11 INCLINE SPEED 10 10 10 11 11 INCLINE SPEED 11 10...
  • Page 23 SPEED 10 10 10 INCLINE SPEED 10 10 11 11 11 11 11 INCLINE 12 12 12 12 12 12 SPEED 10 11 11 11 11 12 12 10 10 INCLINE SPEED 10 11 11 10 11 12 12 INCLINE SPEED 12 11 11 12...
  • Page 24 SPEED INCLINE SPEED INCLINE SPEED INCLINE 10 10 10 10 10 SPEED INCLINE 10 10 SPEED INCLINE SPEED INCLINE 10 10 SPEED INCLINE 10 10 SPEED 10 10 10 10 INCLINE SPEED INCLINE SPEED INCLINE 11 11 SPEED INCLINE 14 14 14 14 14 14 SPEED...
  • Page 25 SPEED INCLINE 11 11 SPEED INCLINE SPEED INCLINE 11 10 10 11 11 10 SPEED INCLINE 11 10 10 11 11 10 SPEED 10 10 10 10 INCLINE SPEED INCLINE 10 10 SPEED INCLINE 10 10 12 12 10 10 SPEED INCLINE 15 15...
  • Page 26 SPEED INCLINE 12 11 10 10 11 12 12 11 10 SPEED 10 10 10 10 INCLINE SPEED 11 11 11 11 10 10 INCLINE TRAINING IN HEAL PROGRAM (P13) MODE: This HEAL program (P13) is designed for WALKING only. You may select HEAL program (P13) in STOP mode before training.

  • Page 27: Care, Maintenance & Troubleshooting Guide

    NOTE: Body Fat Percentage is an estimate based on the gender, age, height, and weight input, and is to be used as a guide only. Standard Body Standard Body High Body Gender Fat (<30 Years Fat (> 30 Years Old) Old) Male 14-20%...

  • Page 28: Belt Adjustment

    BELT ADJUSTMENT The running belt is pre-adjusted to the running deck at the factory, but after prolonged use it can stretch and require readjustment. To adjust the belt, turn on the main power switch of the treadmill and let the belt run at a speed of 2-3 KPH. Use the 6mm Allen Wrench provided to turn the rear roller adjustment bolts in order to centre the belt.

  • Page 29: Lubrication

    LUBRICATION Lubricating under the running belt will ensure superior performance and extend its life expectancy. After the first 25 hours of use (or 2-3 months) apply some lubricant, and repeat for every following 50 hours of use (or 5-8 months). How to check running belt for proper lubrication Lift one side of the running belt and feel the top surface of the running deck.

  • Page 30: Warm Up And Cool Down Routine

    WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
  • Page 31 QUADRICEPS STRETCH With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot. INNER THIGH STRETCH Sit with the soles of your feet together and your knees pointing outward.
