LifeGear 97114 Owner's Manual

Amyrtee programmable motorized treadmill
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

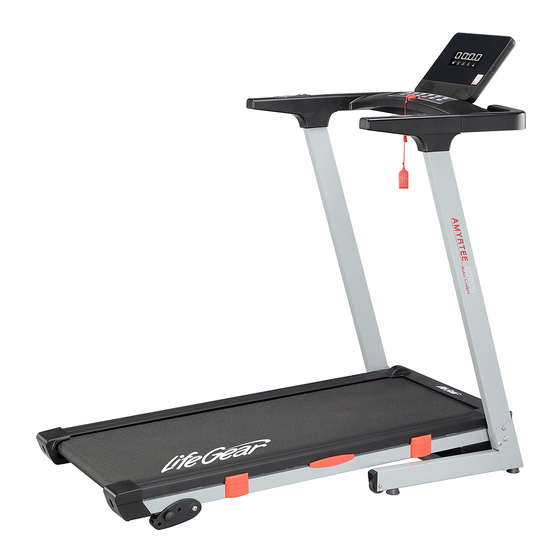

AMYRTEE PROGRAMMABLE
MOTORIZED TREADMILL
ITEM NO.: 97114
Bluetooth FitShow App Kinomap App Zwift App
OWNER'S MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain this
owner's manual for future reference.
The specifications of this product may vary from this photo and are subject to change
without prior notice.
2023, April

Advertisement

Table of Contents
loading

Related Manuals for LifeGear 97114

Summary of Contents for LifeGear 97114

  • Page 1 AMYRTEE PROGRAMMABLE MOTORIZED TREADMILL ITEM NO.: 97114 Bluetooth FitShow App Kinomap App Zwift App OWNER’S MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain this owner’s manual for future reference. The specifications of this product may vary from this photo and are subject to change without prior notice.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS WARRANTY -------------------------------------------------------------------------------- 2 IMPORTANT SAFETY INSTRUCTIONS ------------------------------------------- 3 PARTS LIST -------------------------------------------------------------------------------- 5 HARDWARE LIST ------------------------------------------------------------------------ 7 ASSEMBLY COMPONENTS ----------------------------------------------------------- 7 TOOLS --------------------------------------------------------------------------------------- 7 LUBRICANT INCLUDED ---------------------------------------------------------------- 7 EXPLODED VIEW ------------------------------------------------------------------------ 8 ASSEMBLY INSTRUCTIONS --------------------------------------------------------- 9 INCLINE ADJUSTMENT ---------------------------------------------------------------- 12 LIFTING UP THE TREADMILL -------------------------------------------------------- 13 SETTING DOWN THE TREADMILL ------------------------------------------------- 14 MOVING THE TREADMILL ------------------------------------------------------------ 15...

  • Page 3: Warranty

    ONE YEAR LIMITED WARRANTY LifeGear Inc. warrants to the original purchaser that this product is free from defects in material and workmanship when used for the purpose intended, under the conditions that it has been installed and operated in accordance with LifeGear's Owner's Manual.

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS Basic precautions, including the following important safety instructions should always be followed when using this treadmill. Read all instructions before using this treadmill. DANGER: To reduce the risk of electric shock, always unplug the treadmill from the electrical outlet immediately after using and before cleaning, assembling, or servicing the treadmill.
  • Page 5  Always hold on to the handrails while using the treadmill.  Always make sure the storage latch is in place when folding and moving the treadmill. Do not leave children who are under 12 years-old unsupervised near or on the ...

  • Page 6: Parts List

    PARTS LIST Description Qty No. Description 001 Main Frame 024 Lower Computer Console Cover 002 Base Frame 025 Upper Handlebar Cover 003 Left Handlebar Support Tube 026 Lower Handlebar Cover 027 Handlebar Support Tube 004 Right Handlebar Support Tube Decorative Cover 005 Handlebar Bracket 028 Right Side Rail End Cap 006 Rotating Shaft Ø19x1.5Tx293...
  • Page 7 PARTS LIST Description Qty No. Description 049 Ring for Cable 1 068 Spring Washer Ø5 Internal Teeth Serrated Lock 050 AC Wire (L=120 mm) 2 069 Washer Ø5 051 AC Wire (L=250 mm) 1 070 Spring Washer Ø6 Internal Teeth Serrated Lock 052 Earth Lead (L=350 mm) 1 071 Washer Ø6...

  • Page 8: Hardware List

    HARDWARE LIST (60) Hexagon Socket (67) Internal Teeth Serrated (56) Hexagon Socket Button Head Bolt Lock Washer Button Head Bolt 4 PCS 6 PCS 2 PCS ASSEMBLY COMPONENTS (38) Safety Tether Key (45) Power Cord 1 PC 1 PC TOOLS Allen Wrench 5 mm Allen Wrench 6 mm 1 PC...

  • Page 9: Exploded View

    EXPLODED VIEW...

  • Page 10: Assembly Instructions

    ASSEMBLY INSTRUCTIONS Handlebar Step 1 Hold the Handlebar and gently lift both Left and Right Handlebar Support Tubes (3, 4) up to the limited position. NOTE: TAKE CARE THAT BOTH HANDLEBAR SUPPORT TUBE DECORATIVE COVERS (27) DO NOT GET PINCHED. Hardware: (56) Hexagon Socket Button Head Bolt...
  • Page 11 Allen Wrench 5 mm Press Step 3 Push the Handlebar Bracket (5) all the way down onto the top ends of Left and Right Handlebar Support Tubes (3, 4) and align bolt holes. Use two Hexagon Socket Button Head Bolts (60) and two Internal Teeth Serrated Lock Washers (67) to secure the Handlebar Bracket (5) onto the top ends of Left and Right Handlebar Support Tubes (3, 4).
  • Page 12 (38) Safety Tether Key 1 PC (45) Power Cord 1 PC Step 4 Adjust the angle of the Computer Console Panel (29) to a certain position. Place the Safety Tether Key (38) onto the Upper Computer Console (23). Plug the indicated end of the Power Cord (45) into the Power Socket (48) on the treadmill. Tool: Allen Wrench 6 mm Step 5...

  • Page 13: Incline Adjustment

    INCLINE ADJUSTMENT Lock Pin Incline Adjuster Lock Pin There are 3 incline angles that the Incline Adjuster can be set to. Place one hand on the Rear end of the treadmill frame, then lift it up and use the other hand to remove the Lock Pin.

  • Page 14: Lifting Up The Treadmill

    LIFTING UP THE TREADMILL Foot Lock Latch Rear End Of The Treadmill Frame Bend your knees as needed and firmly grip the Rear End Of The Treadmill Frame with both hands. Gently and slowly lift the Rear End Of The Treadmill Frame up into the upright position until the Foot Lock Latch engages and securely locks the main frame into position.

  • Page 15: Setting Down The Treadmill

    SETTING DOWN THE TREADMILL Foot Lock Latch To set down the treadmill, firmly grip the Rear End Of The Treadmill Frame with both hands. Gently kick on the Foot Lock Latch with your foot until the lock latch disengages. Carefully lower the main frame to the ground. See figures A and B. WARNING: Do not stand under the main frame when setting down the treadmill.

  • Page 16: Moving The Treadmill

    MOVING THE TREADMILL Handlebar Base Frame The unit can be carefully tilted onto its transport wheels for easy moving and storage. With the treadmill in the folded locked position (foot lock latch is engaged), firmly grasp the Handlebar with both hands and place one foot onto the Base Frame. Next, carefully tilt the treadmill back until it rolls freely on the transport wheels.

  • Page 17: Operating The Computer

    OPERATING THE COMPUTER Flip the Master Power Switch that is located at the front of the treadmill to the ON position. Before beginning a workout session ensure that the Safety Tether Key is properly placed onto the Computer Console and the Safety Clip is securely attached to an article of your clothing.
  • Page 18 PROG (PROGRAM): To select your chosen workout program (P01 to P15) or body fat calculator program. SPEED ＋: To make upward adjustments for pre-setting target training time, distance, or calories in manual program mode. To make upward adjustments for pre-setting target training time in pre-set program mode (P01-P15).
  • Page 19 the SPEED ＋ or SPEED － button on the computer console to change the setting. The pre-set target calories range is from 10.0 KCAL to 999 KCAL. After finishing setting one of the function of TIME, DIST. (DISTANCE), or CAL. (CALORIES) for count-down, press the START button on the computer to begin exercising, the computer screen will countdown 3 seconds before the running belt starts moving.
  • Page 20 INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) INTERVAL SPEED (KPH) INTERVAL SPEED (KPH)
  • Page 21 TRAINING IN BODY FAT CALCULATOR PROGRAM MODE: Press the PROG (PROGRAM) button to select FAT (Body Fat Calculator Program) and then press the MODE button to enter the Body Fat Calculator Program. The computer screen will display F1 (gender) and 1 (male). Press the SPEED ＋ or SPEED － button to set user's gender (1 indicates male and 2 indicates female).

  • Page 22: Error Codes

    ERROR CODES E01 error code: This usually indicates a problem with the software overcurrent. Possible cause for software overcurrent is excessive load. Please turn off the Master Power Switch to the OFF position, wait 30 seconds, then turn on the Master Power Switch to the ON position.
  • Page 23 E10 error code: This usually indicates the overload protection. Possible cause for overload protection is that the overload of the input current of motor that triggered the power control board protection. Lubricate your treadmill with some lubricant. There is an issue with the motor or the power control board.

  • Page 24: Compatible Fitness Application

    COMPATIBLE FITNESS APPLICATION DOWNLOAD THE FITSHOW APPLICATION You can install the FitShow app on your mobile device using a QR code. Scan the QR code to download and install the app. 1. You can search FitShow app in the Google Play Store (Android System) or App Store (iOS System) and then download the app.
  • Page 25 For first time users, tap “Creat Account” or choose one of the following login methods to sign in in order to save your personal workout history. GETTING STARTED Once you’ve logged into your account, you will see the home screen. Select and tap the “Treadmill”...
  • Page 26 DOWNLOAD THE KINOMAP APPLICATION You can install the Kinomap app on your mobile device using a QR code. Scan the QR code to download and install the app. You can search Kinomap app in the Google Play Store (Android System) or App Store (iOS System) and then download the app.
  • Page 27 Tap “NEXT” and continue to the next steps. 1. Tap “START” and continue to the next steps. 2. Tap “I ACCEPT THE TERMS OF USE” and continue to the next steps. 3. Choose one of the following login methods to sign in or tap “Sign up”. For first time users, you must register with a Kinomap account in order to save your personal workout history.
  • Page 28 Fill out your personal information. Then tap “CREATE MY ACCOUNT”. This will create your account and a verification email will be sent to you. 1. Once you’ve confirmed your account you can now login to the app. Entering your Username / email and Password for logging into the app. Then tap “LOGIN”. 2.
  • Page 29 Select and tap the “FTMS treadmill (experimental) and (FTMS)”. After pairing, devices can connect with each other automatically. Tap “START” to go to the Kinomap home screen. GETTING STARTED Once you’ve logged into your account, you will see the home screen. From here you can navigate to what area you need, whether that’s settings, videos or previous achievements.
  • Page 30 DOWNLOAD THE ZWIFT APPLICATION You can install the Zwift app on your mobile device using a QR code. Scan the QR code to download and install the app. You can search Zwift app in the Google Play Store (Android System) or App Store (iOS System) and then download the app.
  • Page 31 Swip left Swip left Tap “GOT IT!” and continue to the next steps. For first time users, tap “I’M NEW” to creat your own account in order to save your personal workout history. Tap “Accept” and continue to the next steps.
  • Page 32 Choose “Don’t Allow” or “OK”, depending Tap one of them about yourself. on your needs. Tap one of them and then tap” OK”. Choose “Don’t Allow” or “Allow”, depending on your needs. Tap “RUN” and continue to the next steps. Tap “OK”...
  • Page 33 Tap “OK” and continue to the next steps. Tap your gender and continue to the next steps. Choose your HEIGHT and WEIGHT You can tap “NEXT” to customize your and then tap “SAVE”. avatar or “SKIP” to continue to the next steps.

  • Page 34: Care, Maintenance & Troubleshooting Guide

    CARE, MAINTENANCE & TROUBLESHOOTING GUIDE WARNING: To prevent electrical shock, please turn off and unplug the treadmill before cleaning or performing routine maintenance. WARNING:Always check the wear and tear components like foot lock latch tube and running belt to prevent injury. CLEANING After each exercise, ensure that the unit is wiped down and any sweat is removed from the unit.

  • Page 35: Belt Adjustment

    BELT ADJUSTMENT The running belt is pre-adjusted to the running deck at the factory, but after prolonged use it can stretch and require readjustment. To adjust the belt, turn on the main power switch of the treadmill and let the belt run at a speed of 2-4 KPH. Use the 6 mm Allen Wrench provided to turn the rear roller adjustment bolts in order to centre the belt.

  • Page 36: Lubrication

    LUBRICATION Lubricating under the running belt will ensure superior performance and extend its life expectancy. After the first 25 hours of use (or 2-3 months) apply some lubricant, and repeat for every following 50 hours of use (or 5-8 months). How to check running belt for proper lubrication Lift one side of the running belt and feel the top surface of the running deck.

  • Page 37: Warm Up And Cool Down Routine

    WARM UP AND COOL DOWN ROUTINE The WARM-UP is an important part of any workout. The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before aerobic exercising. It should begin every session to prepare your body for more strenuous exercise by heating up and stretching your muscles, increasing your circulation and pulse rate, and delivering more oxygen to your muscles.
  • Page 38 QUADRICEPS STRETCH With one hand against a wall for balance, reach behind you and pull your right foot up. Bring your heel as close to your buttocks as possible. Hold for 15 counts and repeat with left foot. INNER THIGH STRETCH Sit with the soles of your feet together and your knees pointing outward.
