Control Terminal Types - Danfoss VLT AQUA Drive FC 200 Operating Instructions Manual

Installation
2 2

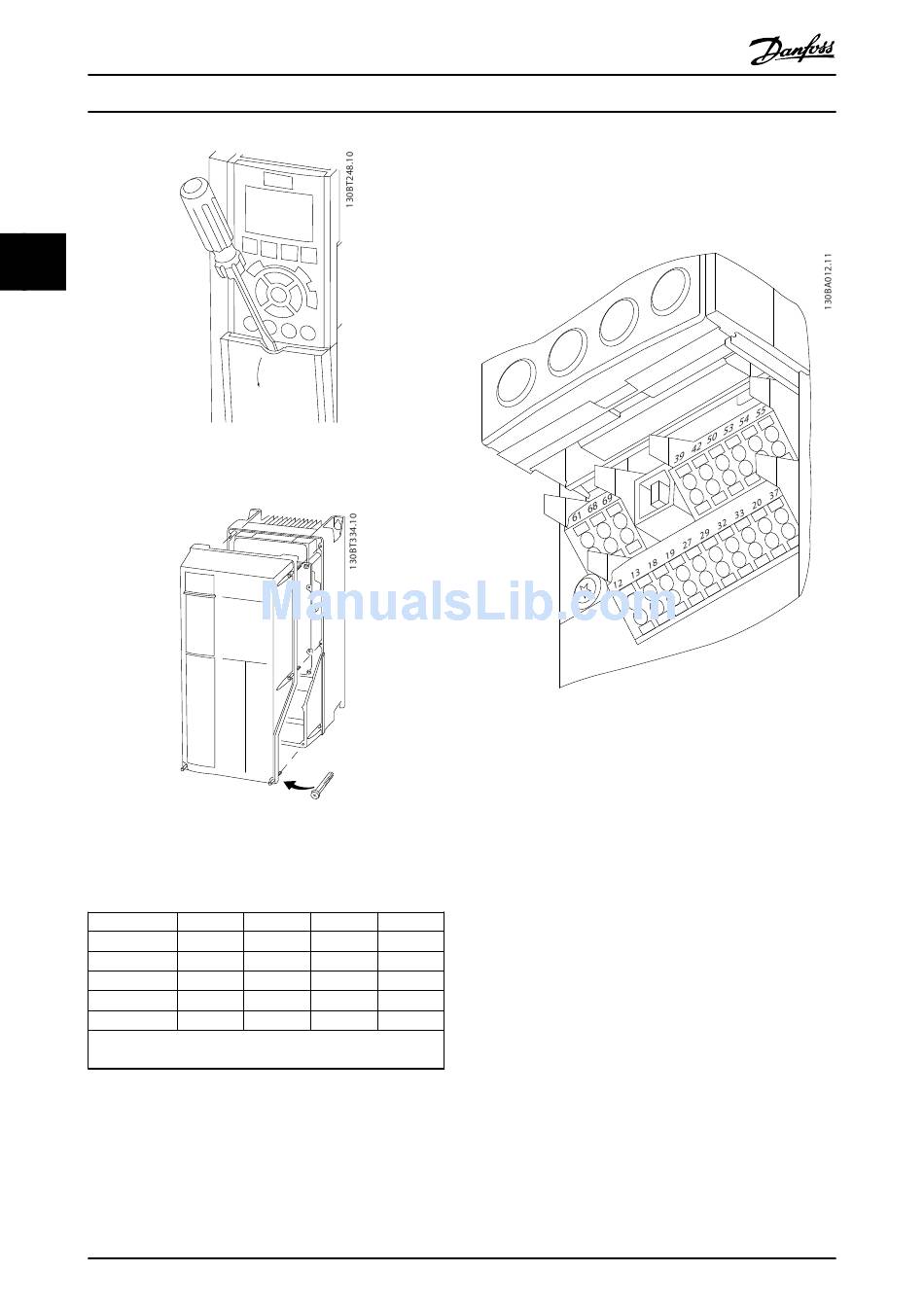

Illustration 2.13 Control Wiring Access for A2, A3, B3, B4, C3 and
C4 Enclosures
Illustration 2.14 Control Wiring Access for A4, A5, B1, B2, C1 and
C2 Enclosures
Please see Table 2.3 before tightening the covers.
Frame
A4/A5
B1
B2
C1
C2
* No screws to tighten
- Does not exist
Table 2.3 Tightening Torques for Covers (Nm)
16
®
VLT
Operating Instructions
IP20 IP21 IP55
- - 2
- * 2.2
- * 2.2
- * 2.2
- * 2.2
MG.20.M8.02 - VLT
AQUA Drive

2.4.5.2 Control Terminal Types

Illustration 2.18 shows the removable frequency converter
connectors. Terminal functions and default settings are
summarized in Table 2.4.
Illustration 2.15 Control Terminal Locations
•
Connector 1 provides four programmable digital
inputs terminals, two additional digital terminals
programmable as either input or output, a 24V
DC terminal supply voltage, and a common for
optional customer supplied 24V DC voltage
•
Connector 2 terminals (+)68 and (-)69 are for an
RS-485 serial communications connection
•
Connector 3 provides two analog inputs, one
IP66 analog output, 10V DC supply voltage, and
commons for the inputs and output
2
2.2
•
Connector 4 is a USB port available for use with
2.2
the MCT-10
2.2
•
Also provided are two Form C relay outputs that
2.2
are in various locations depending upon the
frequency converter configuration and size
•
Some options available for ordering with the unit
may provide additional terminals. See the manual
provided with the equipment option.
See 10.1 General Technical Data for terminal ratings details.
®
