3. Display, push-buttons and LEDs

3.1 Push-buttons functions

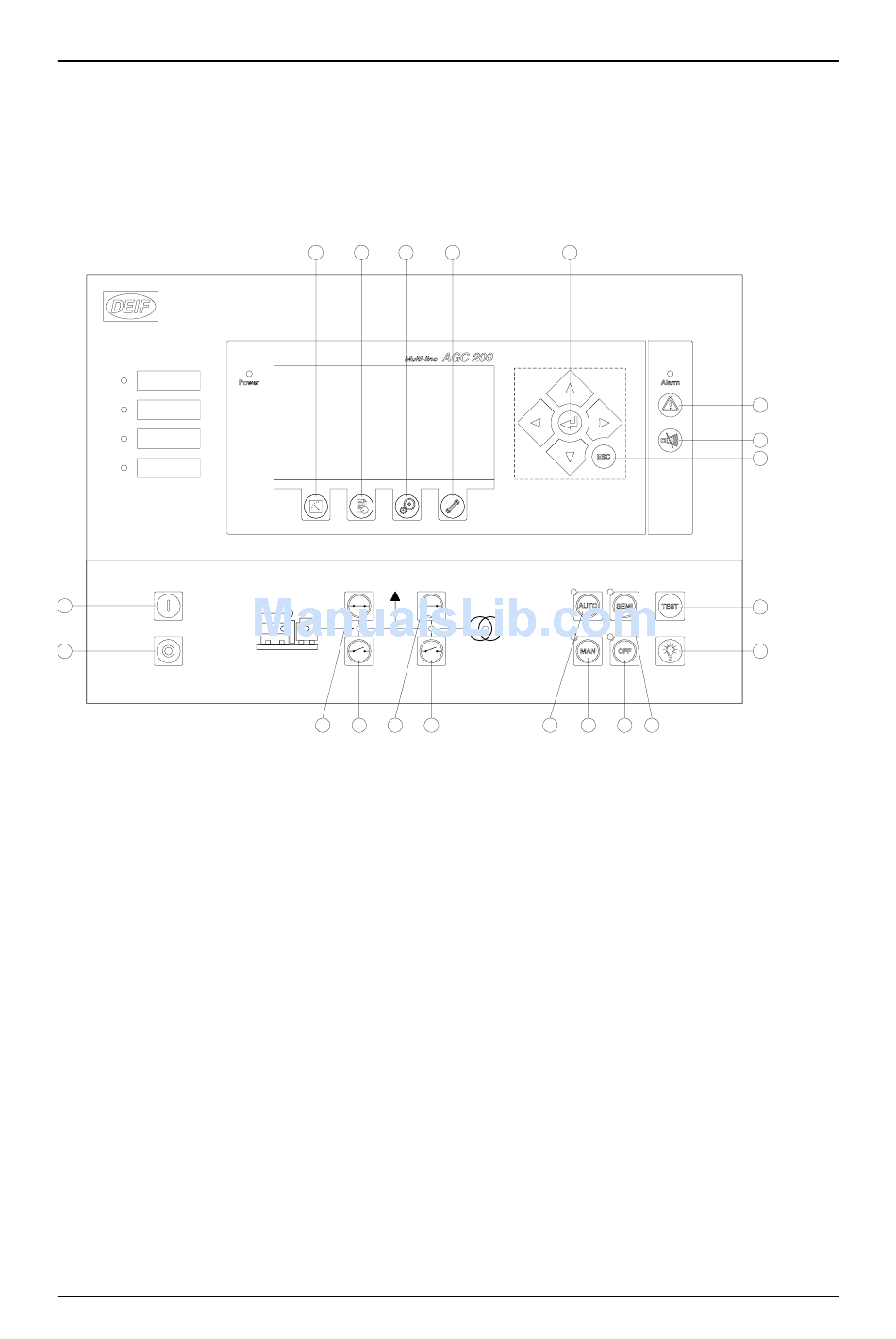

The display unit holds a number of push-button functions which are described below:
20
19
1. View of measured values
2. Log lists. The list holds 150 events. These events are deleted when the AGC is switched off
3. Parameter settings
4. Service menu
5. Navigation buttons
6. Alarm list
7. Silence horn
8. Escape/step backwards
9. Test mode
10. Lamp test
11. Semi-auto mode
12. Off mode
13. Manual mode
14. Auto mode
15. MB open
16. MB close
17. GB open
18. GB close
19. Stop: stop of the genset if semi-auto or manual is selected
20. Start: start of the genset if semi-auto or manual is selected
