Electrical actuation

Electrical control of PVG

30 | © Danfoss | August 2017
Valve actuation with electrical actuators has been supported by Danfoss for a long time. The actuation
can be controlled directly by joystick, by a PLUS+1® controller or by a broad range of third part
controllers. The actuator controls the spool by building up pilot oil pressure on the end of the spool. For
the PVE a pilot oil pressure between 10 and 15 bar is used. For the PVHC a pilot oil pressure between 20
and 25 bar is used.
PVG with PVE

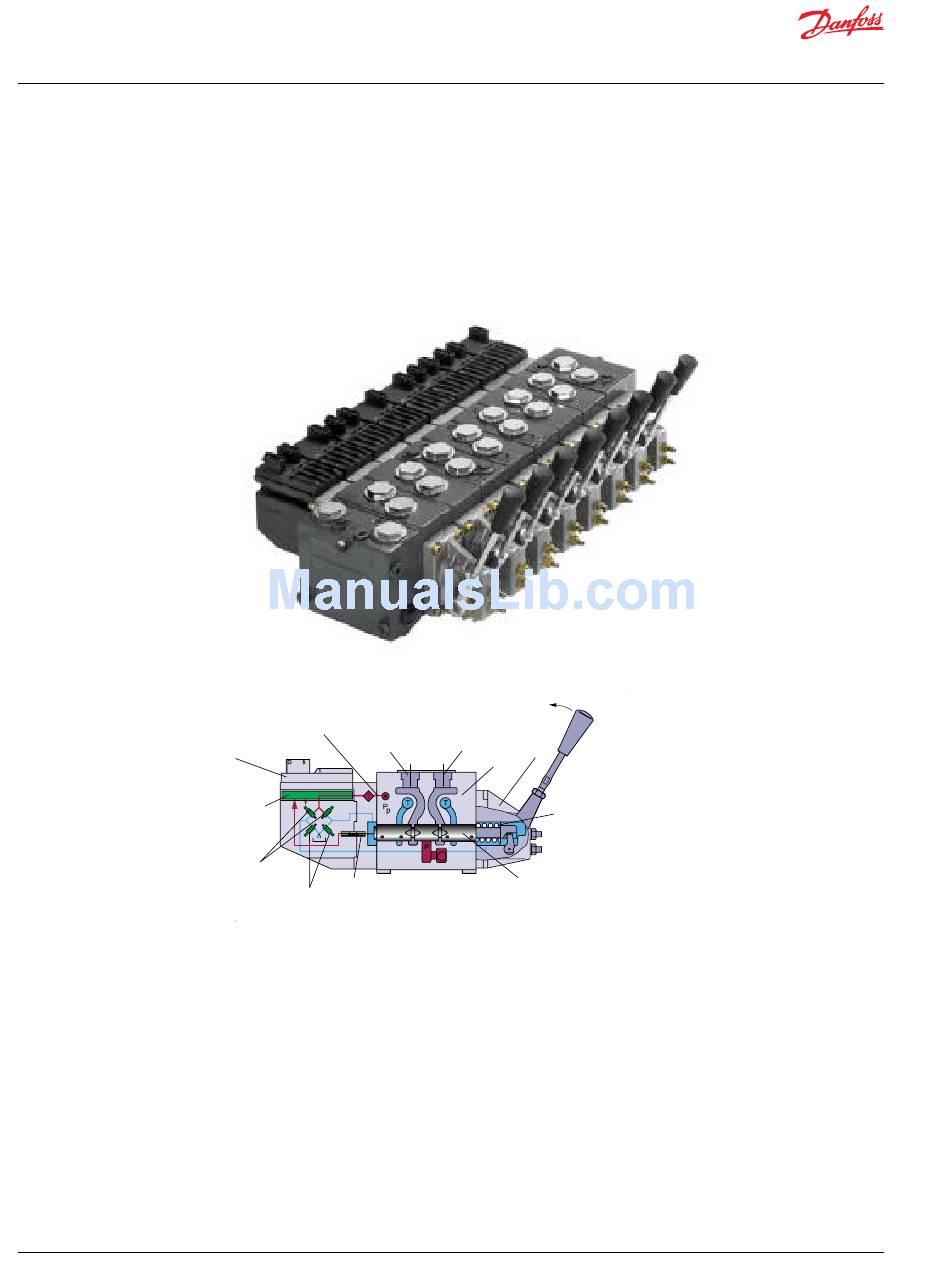

Valve section with naming - standard mounted - seen from PVP
Pilot oil supply
B port
PVE
Electronics
NC Solenoid valves
LVDT
NO solenoid valves
A detailed description of the variants is presented in:
PVE-Series 4 for PVG 32, PVG 100 and PVG 120 Technical Information, 520L0553, covers all analogue PVE –
PVEO, PVEH, PVES, PVEA, PVEM, PVEU, PVEP and the current controlled PVHC.
Electrohydraulic Actuator – PVED-CC Series 4 Technical Information, 520L0665, covers the ISOBUS/SAE
J1939 CAN controlled PVED-CC.
Electrohydraulic Actuator – PVED-CX Series 4 Technical Information, 11070179, covers the IEC61508 SIL2
certified CANopen controlled PVED-CX.
