PVG 32 Proportional Valve Group

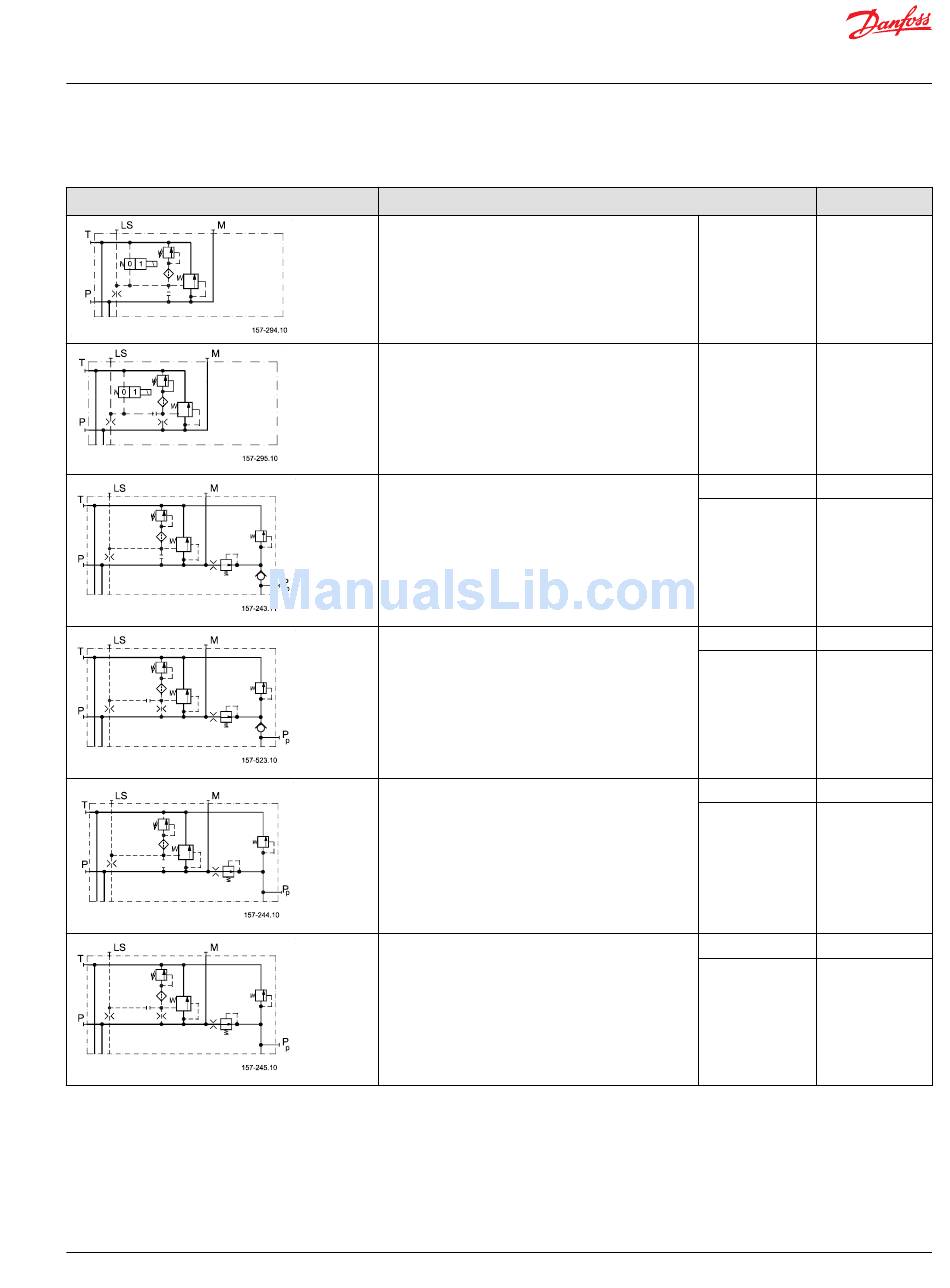

Modules symbols, description and code numbers
PVP, pump side modules
Symbol
© Danfoss | August 2017
Description
Open center pump side module for pumps with fixed
displacement.
For mechanical actuated valves.
Connection for LS unloading valve, PVPX (not incl)
Closed center pump side module for pumps with
vaiable displacement.
For mechanical actuated valves.
Connection for LS unloading valve, PVPX (not incl)
Open center pump side module for pumps with fixed
displacement.
With pilot oil supply for electrical actuation and
connection for pilot oil pressure
Incl. check valve
Closed center pump side module for pumps with
variable displacement.
With pilot oil supply for electrical actuation and
connection for pilot oil pressure
Incl. check valve
Open center pump side module for pumps with fixed
displacement.
With pilot oil supply for hydraulic actuation and
connection for pilot oil pressure
Closed center pump side module pumps with variable
displacement
With pilot oil supply for hydraulic actuation and
connection for pilot oil pressure
Connections:
P, T = G ¾ in; 16 mm deep / LS, M = G ¼ in; 12 mm deep
P, T = 1 1/16–12; 0.75 in deep / LS, M = ½–20; 0.47 in deep.
Code number
P, T = G ¾ 157B5102
P, T = G ¾ 157B5103
P, T = G ¾ 157B5180
P, T = 1 1/16–12 157B5380
LS connection =
9/16–18
P, T = G ¾ 157B5181
P, T = 1 1/16–12 157B5381
LS connection =
9/16–18
P, T = G ¾ 157B5190
P, T = 1 1/16–12 157B5390
LS connection =
9/16–18
P, T = G ¾ 157B5191
P, T = 1 1/16–12 157B5391
LS connection =
9/16–18
