Technical Information
PVG 32 Proportional Valve Group
Safety in application
©
Danfoss | August 2017

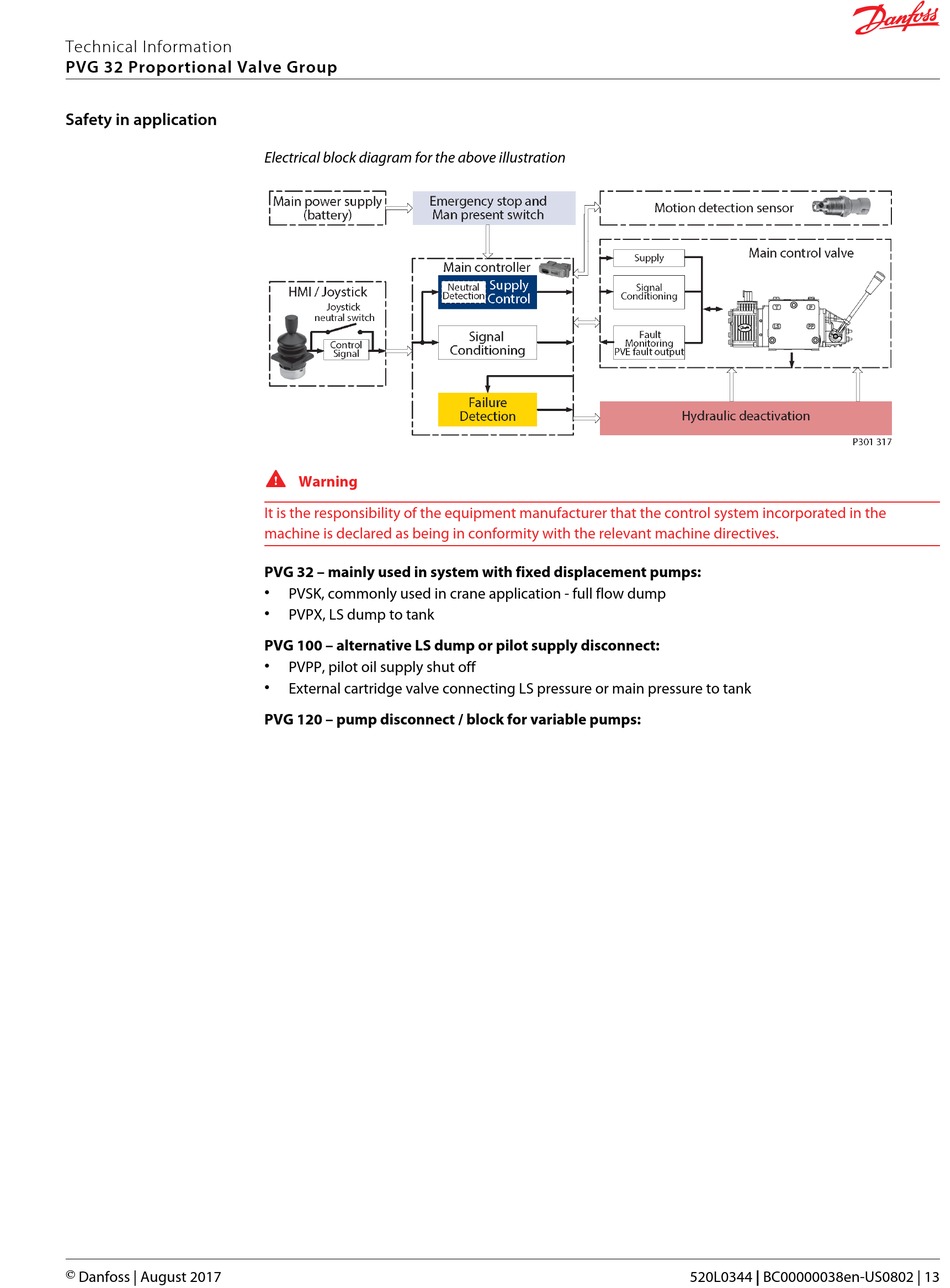

Electrical block diagram for the above illustration
W
Warning
It is the responsibility of the equipment manufacturer that the control system incorporated in the
machine is declared as being in conformity with the relevant machine directives.
PVG 32 – mainly used in system with fixed displacement pumps:
PVSK, commonly used in crane application - full flow dump
PVPX, LS dump to tank
PVG 100 – alternative LS dump or pilot supply disconnect:
PVPP, pilot oil supply shut off
External cartridge valve connecting LS pressure or main pressure to tank
PVG 120 – pump disconnect / block for variable pumps:
520L0344 | BC00000038en-US0802 | 13
