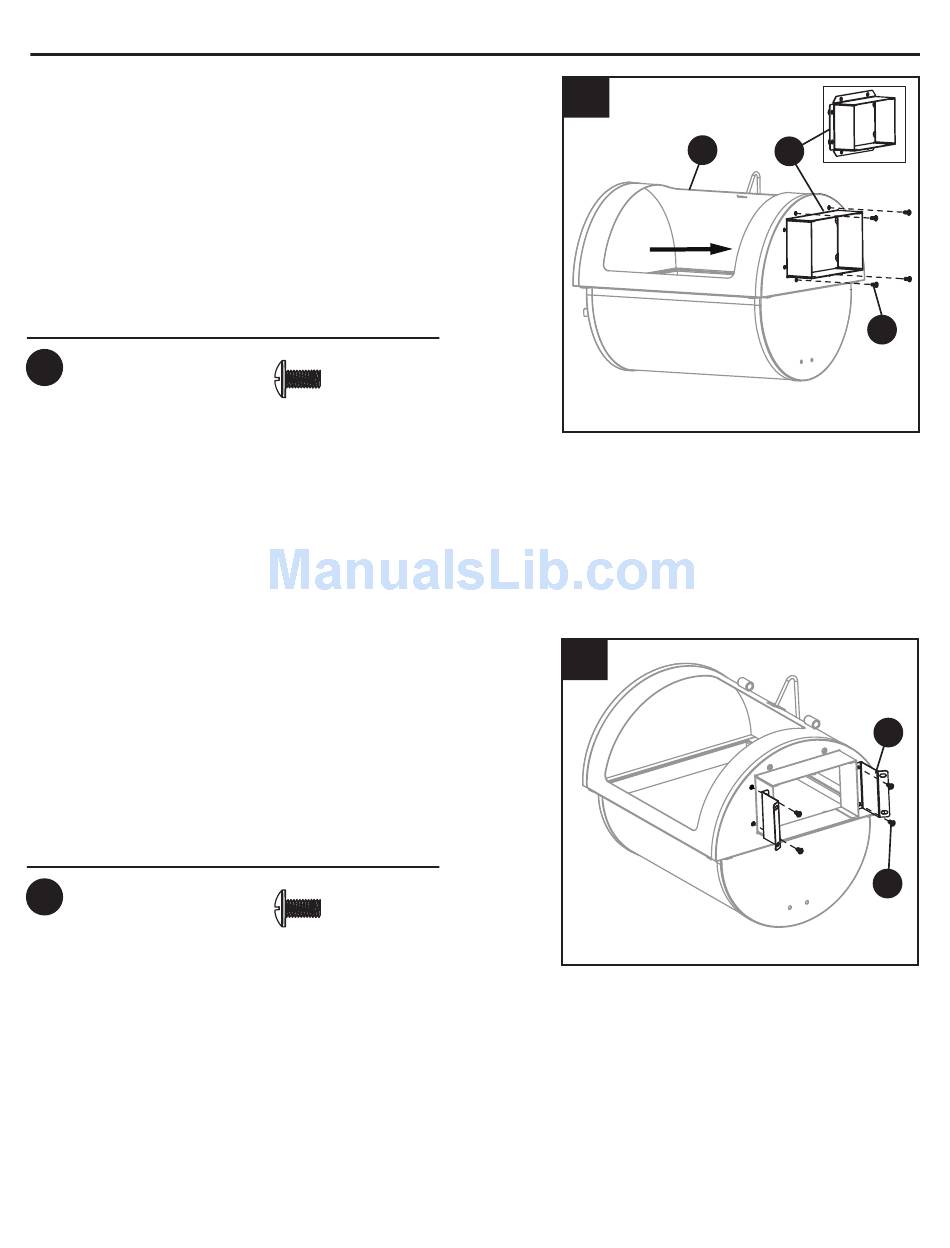

ASSEMBLY INSTRUCTIONS
7.
Insert the offset firebox coupling (C1) through the
opening on the top section of the offset (W) and
attach with four M6 x 12 bolts (BB).
Hardware Used
BB
M6 x 12mm
Bolt
8.
Attach the offset coupling brackets (P) using four
M6 x 12 bolts (BB).
Hardware Used
M6 x 12mm
BB
Bolt
x 4
x 4
9
7
W
8
C1
BB
P
BB
