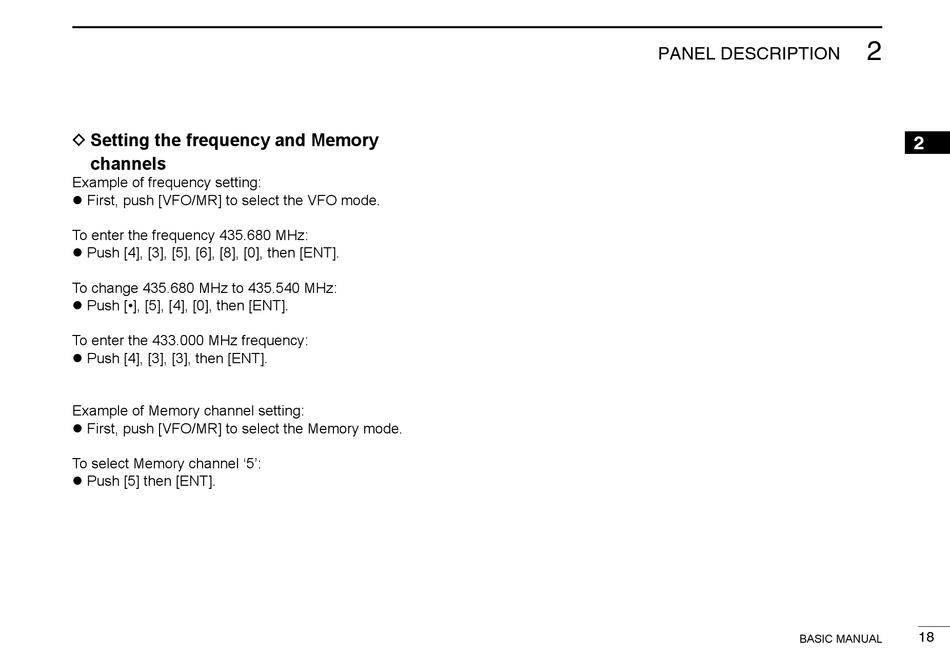

Icom ID-4100A Basic Manual page 33

2
PANEL DESCRIPTION
D Setting the frequency and Memory
2
channels
Example of frequency setting:
z First, push [VFO/MR] to select the VFO mode.
To enter the frequency 435.680 MHz:
z Push [4], [3], [5], [6], [8], [0], then [ENT].
To change 435.680 MHz to 435.540 MHz:
z Push [•], [5], [4], [0], then [ENT].
To enter the 433.000 MHz frequency:
z Push [4], [3], [3], then [ENT].
Example of Memory channel setting:
z First, push [VFO/MR] to select the Memory mode.
To select Memory channel '5':
z Push [5] then [ENT].
18
BASIC MANUAL
