1
INSTALLATION AND CONNECTIONS

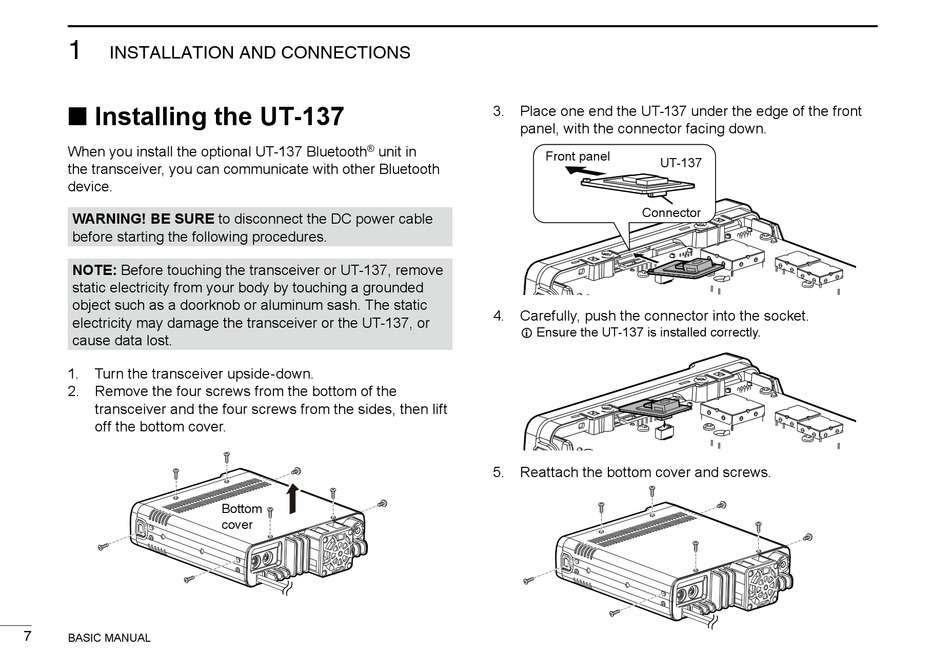

■ Installing the UT-137

When you install the optional UT-137 Bluetooth
the transceiver, you can communicate with other Bluetooth
device.
WARNING! BE SURE to disconnect the DC power cable
before starting the following procedures.
NOTE: Before touching the transceiver or UT-137, remove
static electricity from your body by touching a grounded
object such as a doorknob or aluminum sash. The static
electricity may damage the transceiver or the UT-137, or
cause data lost.
1. Turn the transceiver upside-down.
2. Remove the four screws from the bottom of the
transceiver and the four screws from the sides, then lift
off the bottom cover.
7
BASIC MANUAL
® unit in
Bottom
cover
3. Place one end the UT-137 under the edge of the front
panel, with the connector facing down.
Front panel
UT-137
Connector
4. Carefully, push the connector into the socket.
L Ensure the UT-137 is installed correctly.
5. Reattach the bottom cover and screws.
