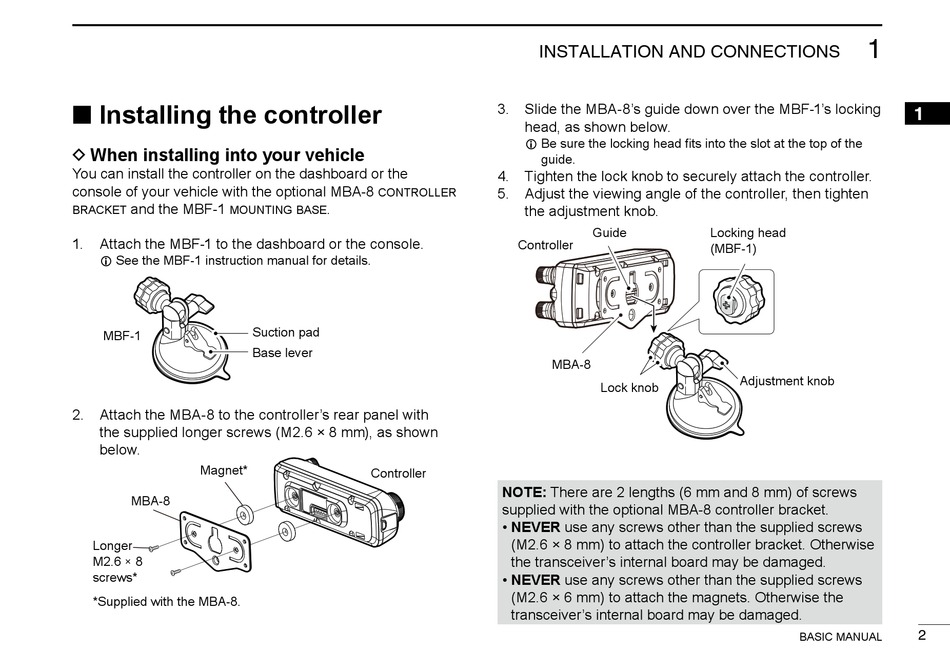

■ Installing the controller

D When installing into your vehicle
You can install the controller on the dashboard or the
console of your vehicle with the optional MBA-8
and the MBF-1
bracket mounting base
1. Attach the MBF-1 to the dashboard or the console.
L See the MBF-1 instruction manual for details.
MBF-1
2. Attach the MBA-8 to the controller's rear panel with
the supplied longer screws (M2.6 × 8 mm), as shown
below.
Magnet*
MBA-8
Longer
M2.6 × 8
screws*
*Supplied with the MBA-8.
controller
.
Suction pad
Base lever
Controller
INSTALLATION AND CONNECTIONS
3. Slide the MBA-8's guide down over the MBF-1's locking
head, as shown below.
L Be sure the locking head fits into the slot at the top of the
guide.
4. Tighten the lock knob to securely attach the controller.
5. Adjust the viewing angle of the controller, then tighten
the adjustment knob.
Guide
Controller
MBA-8
Lock knob
NOTE: There are 2 lengths (6 mm and 8 mm) of screws
supplied with the optional MBA-8 controller bracket.
• NEVER use any screws other than the supplied screws
(M2.6 × 8 mm) to attach the controller bracket. Otherwise
the transceiver's internal board may be damaged.
• NEVER use any screws other than the supplied screws
(M2.6 × 6 mm) to attach the magnets. Otherwise the
transceiver's internal board may be damaged.
1
Locking head
(MBF-1)
Adjustment knob
