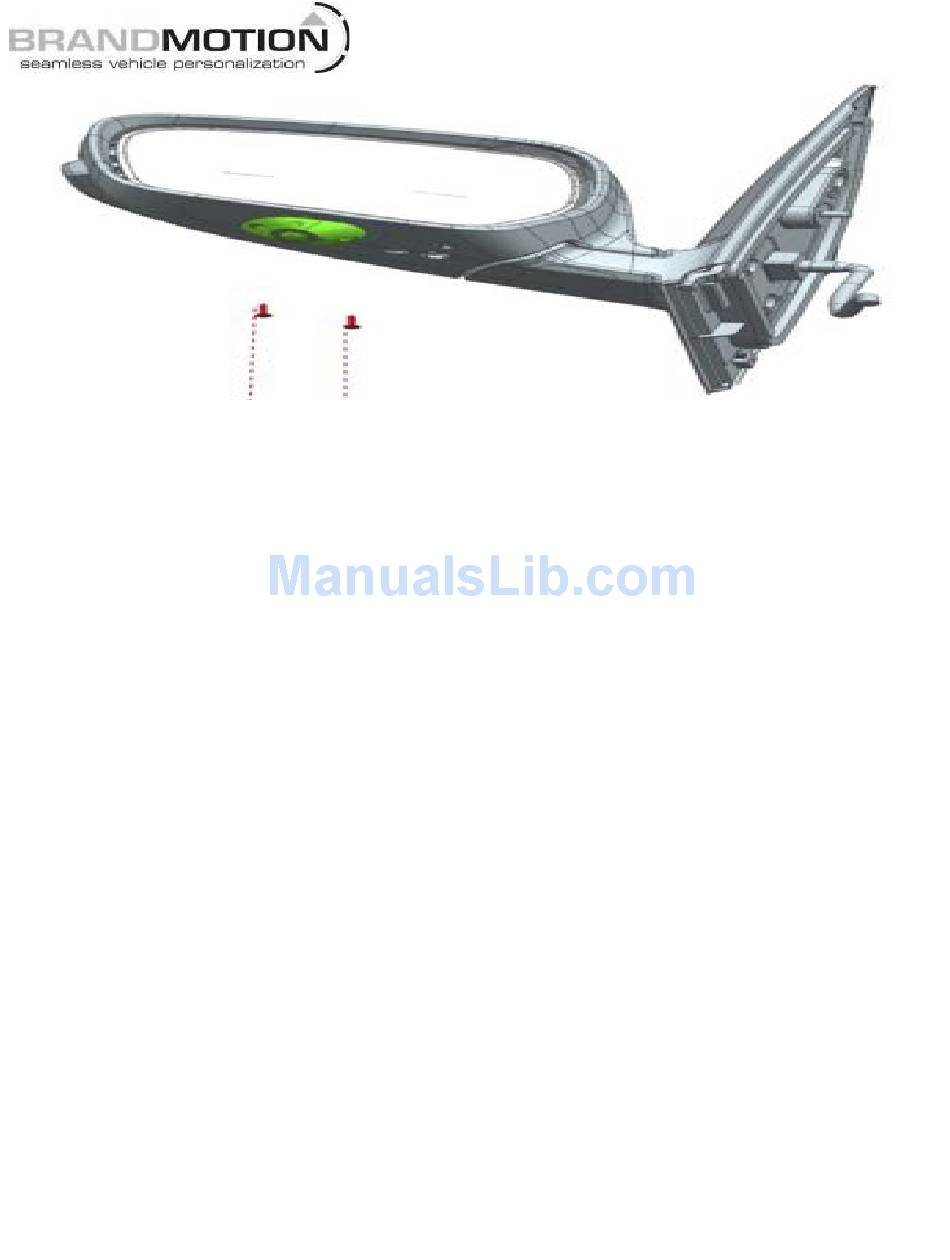

15. Route the camera cable though the mirror housing and out of the back mounting side of the mirror.
Make sure not to block any movement of the mirror glass or folding of the mirror.
16. Route the cable into the door and remount the mirror to the vehicle.
17. You will next pin the camera cable wires into the provided connecter. Inset the pins into the connecter
until they make a "snap" sound. Use the left side camera harness to match up where the pin locations
are. (See Diagram chart 1a. at end of instructions for all camera pin connections.)
18. Attach the camera cable to the harness and route though the door to the rubber boot. Secure the
harness to the factory wire harness with zip ties.
19. Route the harness out though the rubber boot into the vehicle. ( The vehicle might have a Molex or
plastic plug in the door of body, if so drill a hole in the plug if there is any room to, if not drill a hole
lower in the door just under the rubber boot and the same if the plug is in the body. Grommet and seal
any holes that might be drilled.)
20. Route the harness to the 360º module.
21. Reinstall the mirror glass into the mirror and reinstall the door panel.
22. Repeat the process on the passenger side door and then continue to the next section.
1. Mount Rear camera in the rear of the vehicle, in door or license plate housing. (The white sticker on
the camera is up.)
2. Mount camera to be able to see the ground and both outer edges of the vehicle.
3. Run harness to the front of the vehicle to where the 360º Main control module will be.
4. Zip tie the harness in place to make sure it does not rattle.
AVMS-3690 Instructions 9-2-16
Section 3:
Rear camera installation
Page 7 of 9
INSTALLATION INSTRUCTIONS
