BrandMotion F Series Installation Instructions Manual

F-Series 360º
PROFESSIONAL INSTALLATION IS REQUIRED
CALIBRATION KIT IS REQUIRED FOR FINAL PROGRAMMING
Please read thoroughly before starting installation and check that kit contents are complete.

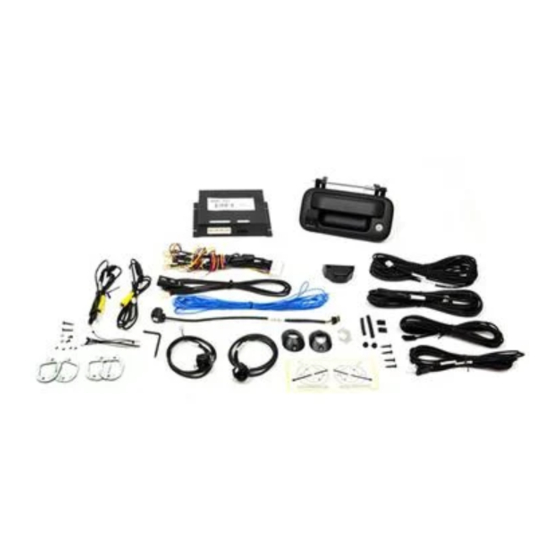

Items Included in the Kit:
2004-2014 Tailgate handle w/camera
360º camera module
Key box power/image buttons
Front camera w/grill mount and harness
2 side mount cameras w/pods and harnesses
2 video output RCA cables
Power/camera input harness
2 side camera templates
Mounting screws and gaskets
These instructions
Safety Precautions:
• Work in well ventilated area that is clear of obstructions.
• Secure vehicle with tire chucks in both front and rear of tires.
• Turn vehicle accessories OFF and ensure ignition key is in OFF position.
• Wear safety goggles and snug fitting clothes.
• Use tools only for their intended purpose and which are in good repair.
• Only perform this task if confidence, skill, and physical ability permit.
Section 1:
Front camera installation

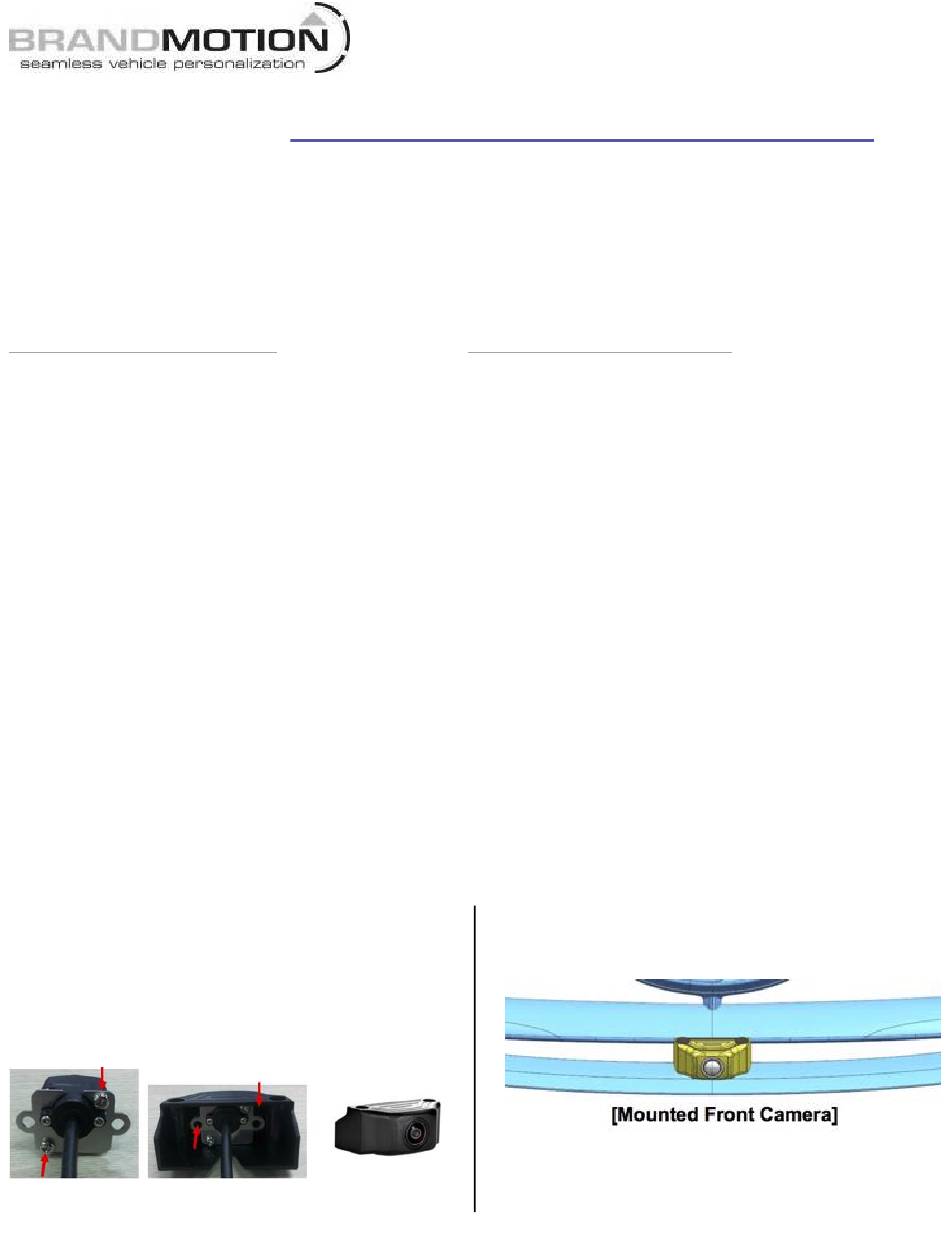

1. Front camera is mounted in the grill below
the Ford emblem.
2. Mount camera in housing using the bracket
and screws provided.
3600 Instructions 9-1-15
!
Vision System for Aftermarket Radio/Display
(Kit # AVMS-3600)
DUE TO THE COMPLEXITY OF THIS KIT
INSTALLATION!INSTRUCTIONS!
Tools & Supplies Needed:
Wire strippers
Wire cutters
Electrical tape
Zip ties
Plastic panel removal tools
Screwdriver
7 mm socket
Drill
Large Uni-bit/drill bits
Hole saws
T-15 Torx
3. Mount the housing using the provided
screws to the grill and putting the caps in
the holes to close them.
Page 1 of 19
