Please read thoroughly before starting installation and check that kit contents are complete.

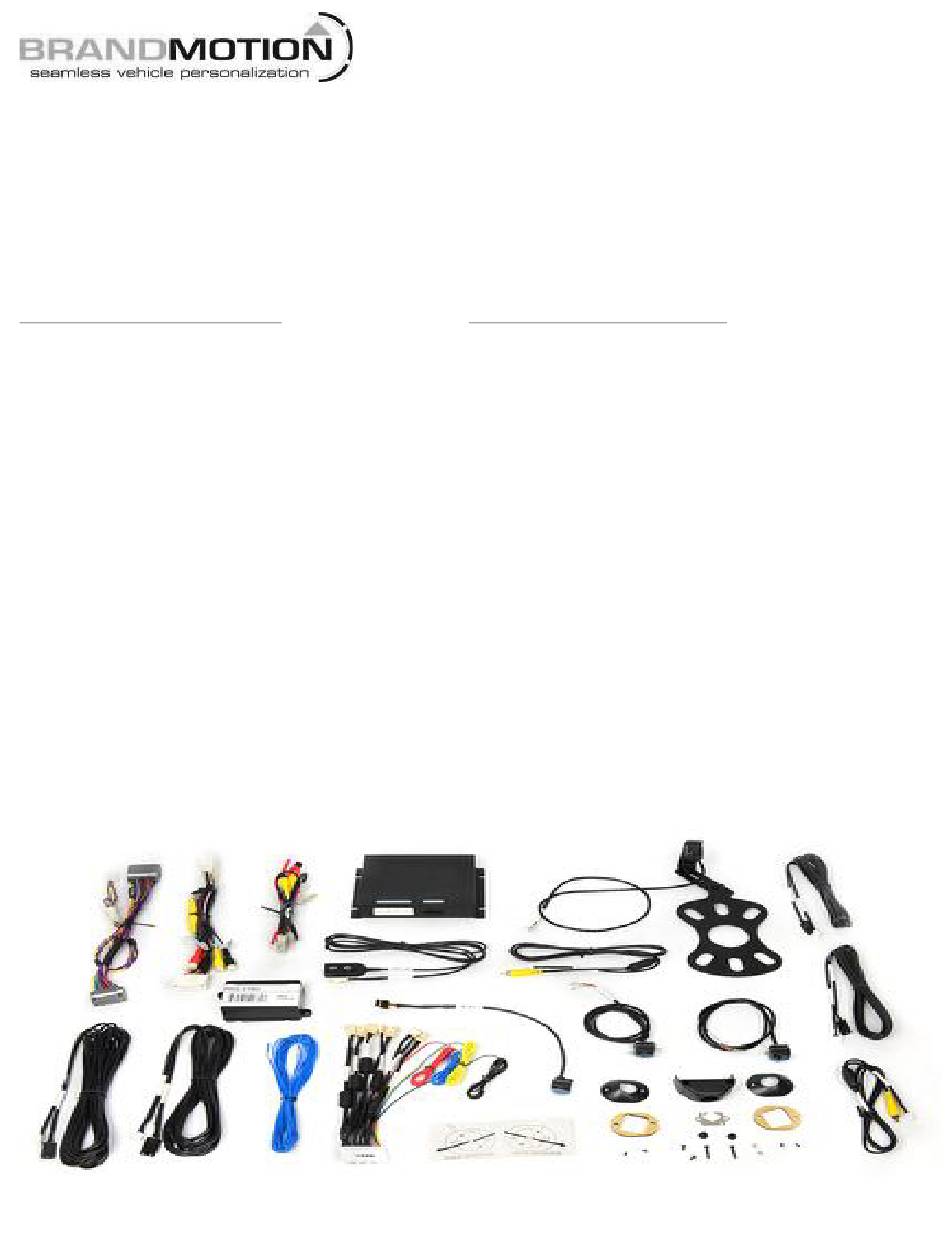

Items Included in the Kit:
Factory display radio interface
Interface Video/Power harness
360º camera module
Key box power/image buttons
Rear camera and Front camera
Front lower bumper mount and harness

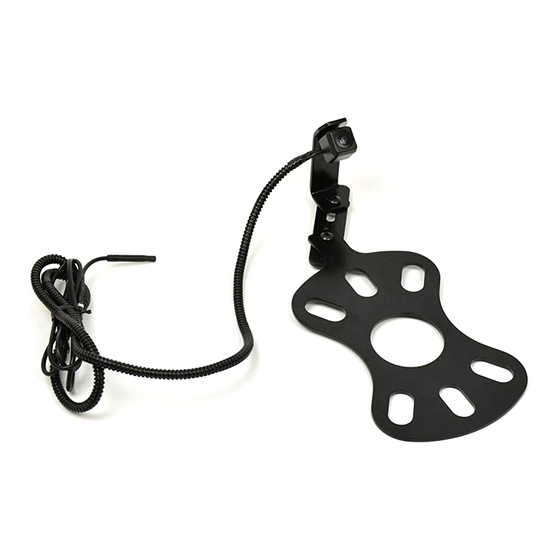

Rear spare tire adjustable camera mount
2 side mount cameras w/pods and harnesses
2 video output RCA cables
Power/camera input harness
2 side camera templates
Mounting screws and gaskets
These instructions
Safety Precautions:
• Work in well ventilated area that is clear of obstructions.
• Secure vehicle with tire chucks in both front and rear of tires.
• Turn vehicle accessories OFF and ensure ignition key is in OFF position.
• Wear safety goggles and snug fitting clothes.
• Use tools only for their intended purpose and which are in good repair.
• Only perform this task if confidence, skill, and physical ability permit.
AVMS-3701v2
INSTRUCTIONS 8-7-16
2007-Current Jeep Wrangler 360º System for
Factory Display Radios
(Kit # AVMS-3701v2)
INSTALLATION INSTRUCTIONS
Tools & Supplies Needed:
Wire strippers
Wire cutters
Electrical tape
Zip ties
Plastic panel removal tools
Digital Volt Meter / BCM safe test light
Screwdriver
Socket set
Wrench
Uni Bit / Step Bit
Drill
Page 1 of 31
Advertisement
Related Manuals for BrandMotion AVMS-3701v2
Summary of Contents for BrandMotion AVMS-3701v2
- Page 1 INSTALLATION INSTRUCTIONS 2007-Current Jeep Wrangler 360º System for Factory Display Radios (Kit # AVMS-3701v2) Please read thoroughly before starting installation and check that kit contents are complete. Items Included in the Kit: Tools & Supplies Needed: Factory display radio interface Wire strippers...
- Page 2 CALIBRATION KIT IS REQUIRED FOR FINAL PROGRAMMING NOTE: We strive to provide accurate and up-to-date installation instructions. For the latest full color instructions, as well as an installation video, please visit www.brandmotion.com REAR CAMERA INSTALL 1. Remove the spare tire off of the carrier. (Use caution when removing tire.) 2.
- Page 3 INSTALLATION INSTRUCTIONS 3. Mount the bracket on the rear tire mount, after bracket is on, slide on the 3 push nuts over the studs. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 3 of 31...
- Page 4 INSTALLATION INSTRUCTIONS 4. Run the harness into the rear gate through the factory grommet. 5. Run rear camera harness through top hole of tire carrier. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 4 of 31...
- Page 5 Note: Short Bracket has been designed for Factory offset wheels. Use the Long Bracket for wheels with larger offsets. 6. Remount spare tire on carrier. (MAKE SURE NOT TO PINCH THE CAMERA HARNESS.) AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 5 of 31...
- Page 6 INSTALLATION INSTRUCTIONS 7. Use a T20 Torx bit to remove subwoofer box. (If equipped with subwoofer box.) 8. Using a plastic trim removal tool, pry off rear seat belt closeout. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 6 of 31...
- Page 7 10. Run the rear camera harness alone the factory harness. Use zip ties to secure to the factory harness. 11. Run the camera harness through the factory cloth door boot, use a long zip tie or a fish tape. AVMS-3701v2 INSTRUCTIONS 8-7-16...
- Page 8 Remove the glove box to gain access to the back side by pressing the side of the inter glove box towards the center to release the side stops. Then open the glove box all the way to the floor and lift up and out. AVMS-3701v2 INSTRUCTIONS 8-7-16...
- Page 9 1. Place template stickers under the side mirrors. The arrow should be perpendicular to the vehicle body, pointing away for the vehicle.(Or use the plastic guides for the correct mounting postions.) Repeat for other side mirror as well. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 9 of 31...
- Page 10 3. Remove the door panel from the vehicle, remove trim behind door handle and remove the torx screw. Remove the inter trim on the pull handle to gain access to the two screws behind the trim. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 10 of 31...
- Page 11 INSTALLATION INSTRUCTIONS 5. Remove the (2) Torx in the lower front of the door. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 11 of 31...
- Page 12 7. Remove (2) Torx bolts on the inner door frame to remove mirror. (When the bolts are taken out, the mirror might fall, hold on to the mirror while doing this.) AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 12 of 31...
- Page 13 8. Remove the mirror and pull harness through the door. 9. Repeat for the other side. 10. Compare the mirrors to see it the templates are in the same place and same angle on both. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 13 of 31...
- Page 14 11. Remove the (3) Torx screws from inside the mirror. You can fairly easy get behind the mirror glass to do this. (The picture show the glass already removed to show location of the screws). AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 14 of 31...
- Page 15 12. Remove the mirror glass by gently lifting on the plastic tabs holding the glass to the mirror motor. 13. Drill the hole in the template for the camera and the (2) mounting screws. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 15 of 31...
- Page 16 14. Mount the left camera (the camera metal bracket will have a LH stamped on it) in the side mirror pod marked. 15. Stick the foam gasket to the flat side of the mirror pod then mount the pod to the mirror using supplied screws. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 16 of 31...
- Page 17 16. Tape the terminals to a zip tie to help guide the wire through the back of the mirror and mounting arm. Run the camera harness though the back of the mirror where the factory power harness passes through and out the bottom of the mirror arm. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 17 of 31...
- Page 18 INSTALLATION INSTRUCTIONS 17. Following the factory harness run the camera harness though the mounting base and pull the rest of the camera harness through. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 18 of 31...
- Page 19 19. Notch the grommet to allow room for the camera harness. 20. Remount the mirror to the vehicle with the (2) Torx bolts. 21. Insert the camera pins into the connector for the camera. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 19 of 31...
- Page 20 INSTALLATION INSTRUCTIONS 22. Reconnect the mirror harness in the door. 23. Run the camera harness along the factory harness in the door. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 20 of 31...
- Page 21 INSTALLATION INSTRUCTIONS 24. Run the camera wire through the factory door sleeve. Use a long zip tie or a fish tape. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 21 of 31...
- Page 22 27. Reinstall door panel and mirror glass. (Press the mirror glass from the center and be careful not to break the glass.) 28. Repeat for other side. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 22 of 31...
- Page 23 1. Front camera will mount under the front bumper on the metal bumper. 2. Mark location of the camera on the metal bumper. These next steps will vary due to the different types of factory and aftermarket bumpers available for the Jeep Wrangler. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 23 of 31...
- Page 24 5. The white sticker on the camera is up. 6. Route the camera harness into the vehicles interior through the factory grommet in the firewall on the driver’s side. Run the harness behind the cluster over to the glove box area. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 24 of 31...
- Page 25 2. Run the keypad harness to the glove box area. 3. For factory display radios, the power button on the keypad turns on the system and the interface to show the image on the factory display below 7 MPH. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 25 of 31...
- Page 26 8. Plug the white 22—pin plug into the open connector on the back of the radio. (There is no plug in this location from the factory.) 9. Check the system, by turning on the ignition and shifting into reverse. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 26 of 31...
- Page 27 To shut off the system press the power button 3 times in 1 second. 12. Calibrate the system. Using calibration kit AVMS-3698 or AVMS-3699. Follow the instructions included in that kit. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 27 of 31...
- Page 28 1. Mount the 360º main control module behind the glove box, on the ridged plastic duct. Mount the module long ways with the connector facing up. Use Velco or double sided tape to mount the box in place. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 28 of 31...
- Page 29 INSTALLATION INSTRUCTIONS 2. Zip tie up wire harness to keep out of way of metal heater lines behind glove box area. AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 29 of 31...
- Page 30 INSTALLATION INSTRUCTIONS Wiring schematics and pin outs AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 30 of 31...
- Page 31 INSTALLATION INSTRUCTIONS AVMS-3701v2 INSTRUCTIONS 8-7-16 Page 31 of 31...
