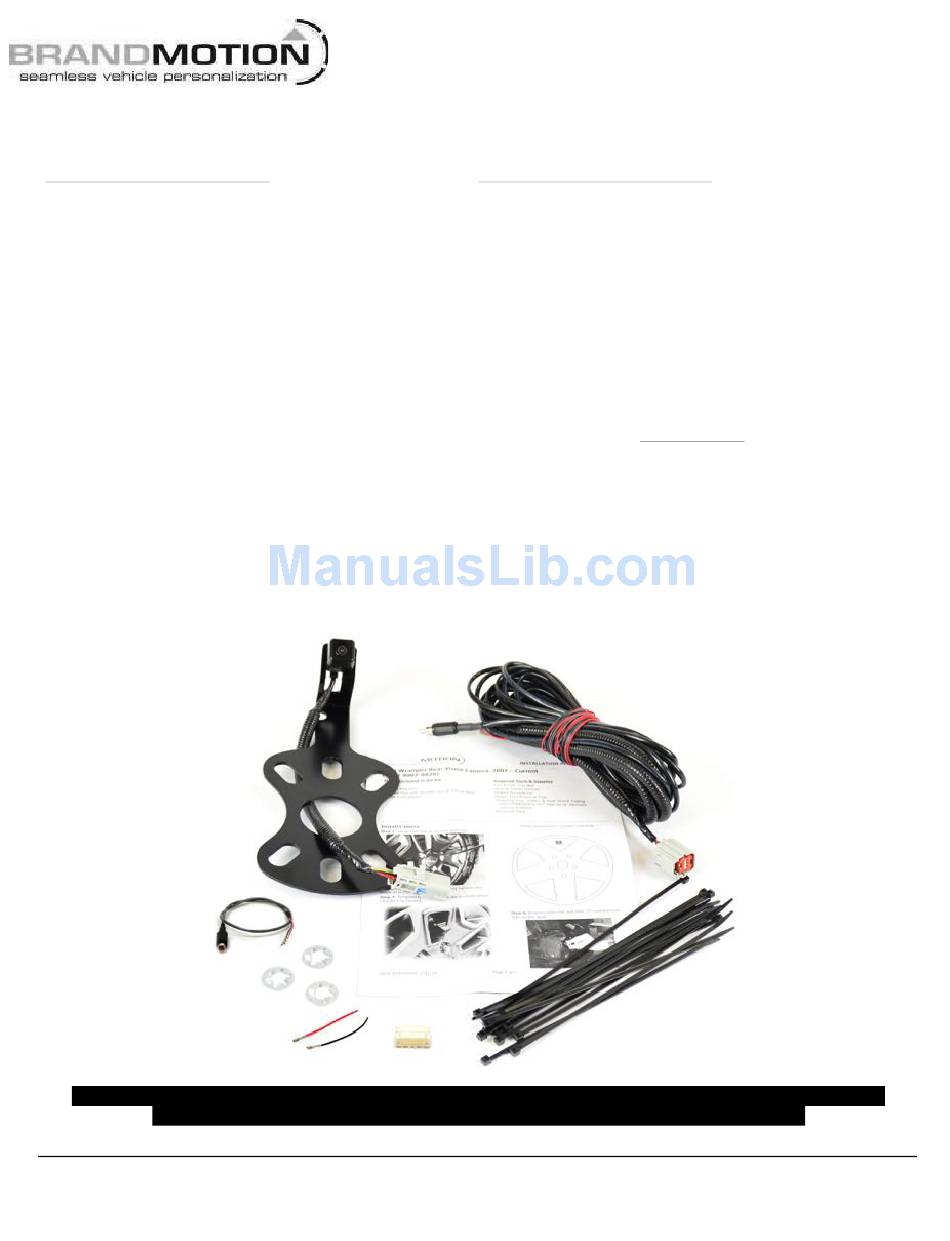

Items Included in the Kit
Camera
Chassis Harness
Zip lock bag with 15 Wire Ties & 3 Push Nuts
These Instructions
22--pin white connector w/ video RCA (for factory
display radio)
Please read so you do not VOID the
If the camera harness is run through the center on the
camera bracket, it will cut the camera harness. This will
NOTE: We strive to provide accurate and up-to-date installation instructions. For the latest full color
instructions, as well as an installation video, please visit www.brandmotion.com
9002-8838 Instructions 9-23-16.docx
Jeep Wrangler Rear Vision Camera,
2007 – Current (Kit # 9002-8838)
warranty:
void the warranty on the camera.
INSTALLATION INSTRUCTIONS
Required Tools & Supplies
T15 & T20 Torx Bits
7mm & 10mm Sockets
Phillips Screwdriver
Plastic Trim Removal Tool
Soldering Iron, Solder, & Heat Shrink Tubing
(RECOMMENDED) or T-taps as an alternate
splicing method
Electrical Tape
Page 1 of 6
GS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BrandMotion 9002-8838
Summary of Contents for BrandMotion 9002-8838
- Page 1 This will void the warranty on the camera. NOTE: We strive to provide accurate and up-to-date installation instructions. For the latest full color instructions, as well as an installation video, please visit www.brandmotion.com Page 1 of 6 9002-8838 Instructions 9-23-16.docx...
- Page 2 Do not run harness through the camera bracket opening . Step 3: Temporarily replace spare tire to check wheel clearance to Camera. Step 4: Remove spare tire and slide (3) supplied Push Nuts on the studs. Page 2 of 6 9002-8838 Instructions 9-23-16.docx...
- Page 3 Step 11: Using a plastic trim removal tool, pry off rear seat belt closeout. Step 7: Pull harness through the rear gate openings. Step 8: Use supplied Wire Ties to secure Chassis Harness to existing harness. Page 3 of 6 9002-8838 Instructions 9-23-16.docx...
- Page 4 Step 19: Remove 7mm bolt . Step 16: Use a 10mm socket to remove the existing nut located behind the passenger kick panel and attach ground eyelet of Chassis Harness to chassis ground. Page 4 of 6 9002-8838 Instructions 9-23-16.docx...
- Page 5 Step 26: Remove glove box for access and run Chassis Harness toward center of dash. Step 22: Remove 7mm bolt. Step 27: Using a plastic trim removal tool, remove HVAC panel. Step 23: Remove driver knee bolster cover. Page 5 of 6 9002-8838 Instructions 9-23-16.docx...
- Page 6 Step 33: Connect White 22-pin Connector to radio along with all remaining radio connectors before reinstalling radio head unit and all trim removed. Page 6 of 6 9002-8838 Instructions 9-23-16.docx...
