BrandMotion 9002-9516 Installation Instructions Manual

9002-9516 Installation Instructions (Auto Dimming/Comp/Temp Video
Display Mirror)
IMPORTANT: Read before installing.
Mirror Mounting - This mirror has a Wedge/ D-tab style mounting base. Please check our application guide to ensure
sure it is compatible with your vehcile (adapters are available for specific applications separately). Slide the mirror onto
the tab. Torque for the mirror screw that attaches to the windshield tab is 1.8 Nm (16 lb-in) and cannot exceed 2.2 Nm
(19.5 lb-in).
Camera requirements - The camera signal must be strong enough for the mirror to detect signal when reverse is
engaged. We recommend that the camera be connected to mirror prior to installation to confirm compatiblity. Best results
are on cameras that have a .8- 1.6 VDC coming out of video composite lead (commonly a yellow RCA jack). Depending
on camera output it may require reverse to be supplied by a 12V switched ignition rather than reverse feed. To test this
use a multimeter set to DC and connect the (-) lead to the camera RCA shield and the (+) lead to the camera RCA tip with
the camera powered ON.
Powering up the camera - The mirror stays ON for over 1 second when reverse is disengaged and if the camera is
connected to the reverse tail lamp then the screen will flash Blue. If the camera does not power up instantly when the
vehicle is shifted into reverse the screen will not detect the camera and will not display an image. For these reasons we
recommend that the camera be connected to Ignition (+).

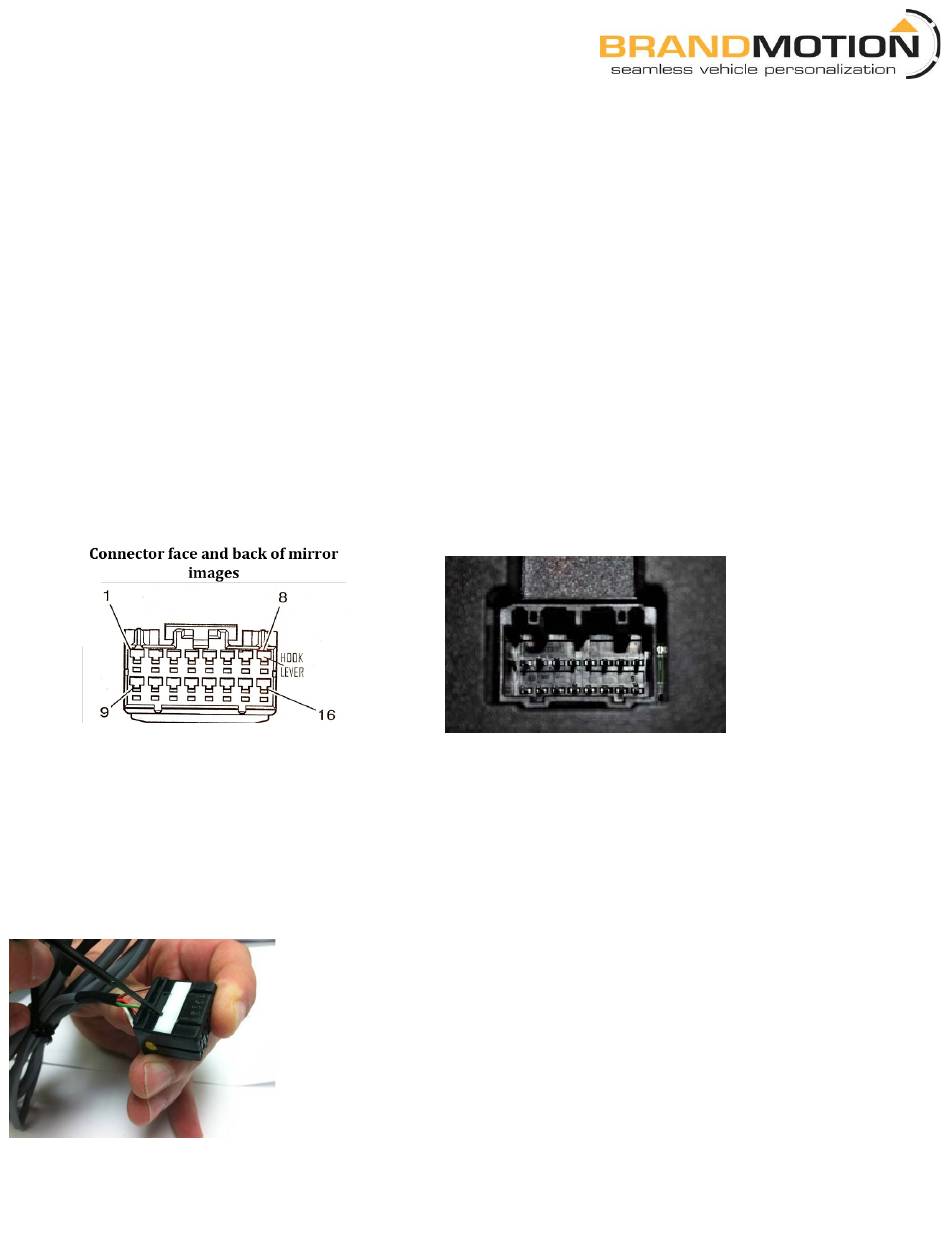

White dot
identifies
cavity 1

Install Temperature Probe (9002-6008):

Mount Temperature Probe behind grille in a well ventilated area making sure that it is not close to the radiator for best
temperature reading.
Route the supplied cable through the firewall (RECOMMENDED: Use an exisitng grommet OR drill a new hole as a pass-
thorugh and apply a small dab of silicone caulk to the cable to prevent the exposed metal from cutting the cable). Next,
route the supplied cable up the A- pillar to the 16 pin connector. Located on the bottom side of the mirror connector is a
rectangular white tab (see Figure 1). This tab must first be released A small flathead watch repair screw driver works best.
The tab will only lift about 1/10
Figure 1
Insert the Red lead of the Temperature Probe into cavity 6 and the Black lead into cavity 7.
th
of an inch.
