Electric Installation
2.3
2.3 Electric Installation
®
This subsection describes how to connect 2N
Helios Force / Safety to your PBX and
how to connect supply voltage and the electric lock.
PCB Connectors
®

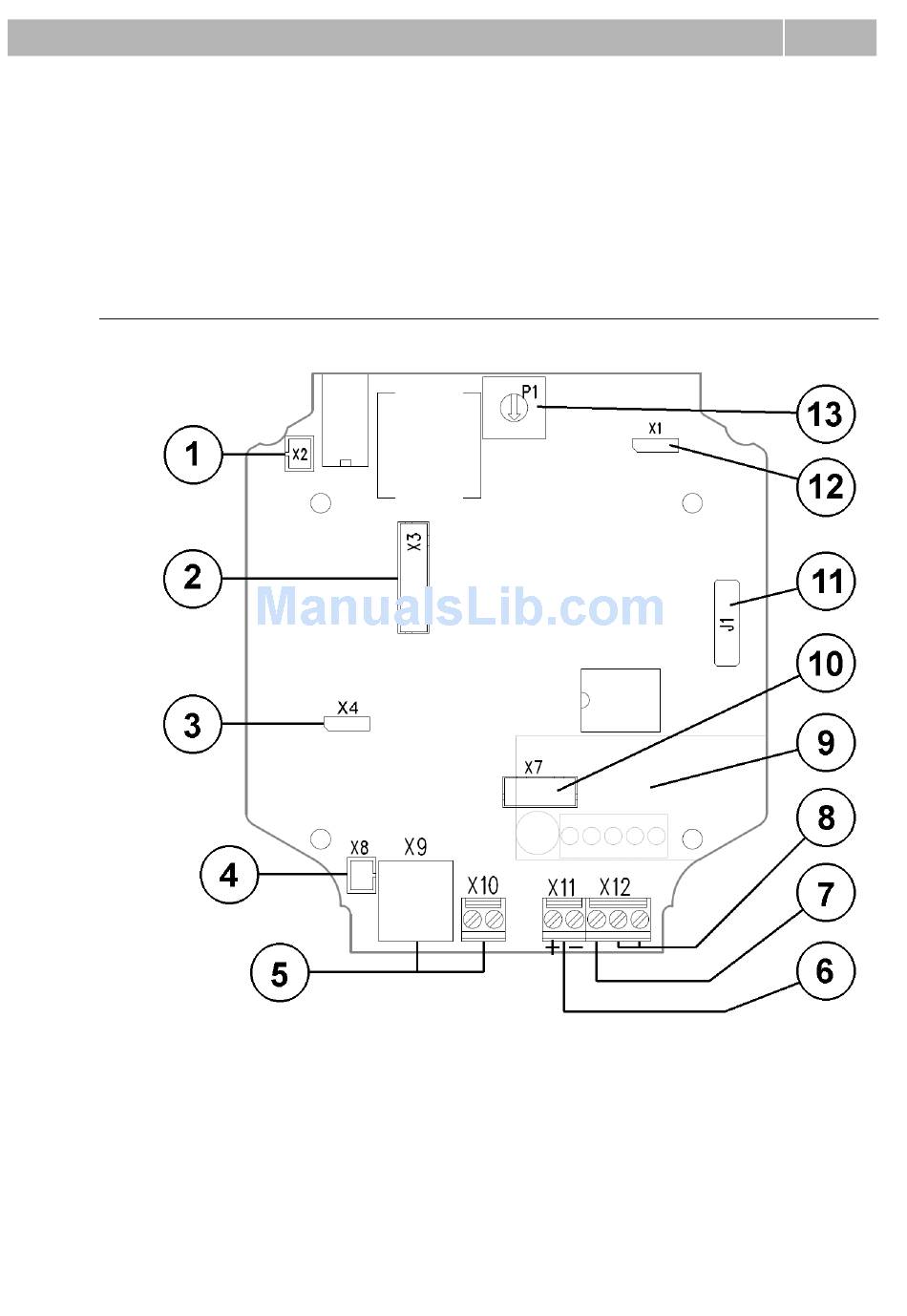

Fig. 2.11 shows the lay-out of connectors on the 2N
Helios Force / Safety printed
circuit board (PCB).
Figure 2.11
2N
®
Helios Force / Safety Connectors, PCB Version 3
19
