2.5.1 Intercom Connectors

See the following figures and tables to identify the connectors and functions of the Intercom.
Connector
JBTN
JMIC1
JSPKR
JKPAD
JY
JP10
JBT1
JBT2
Operations Guide

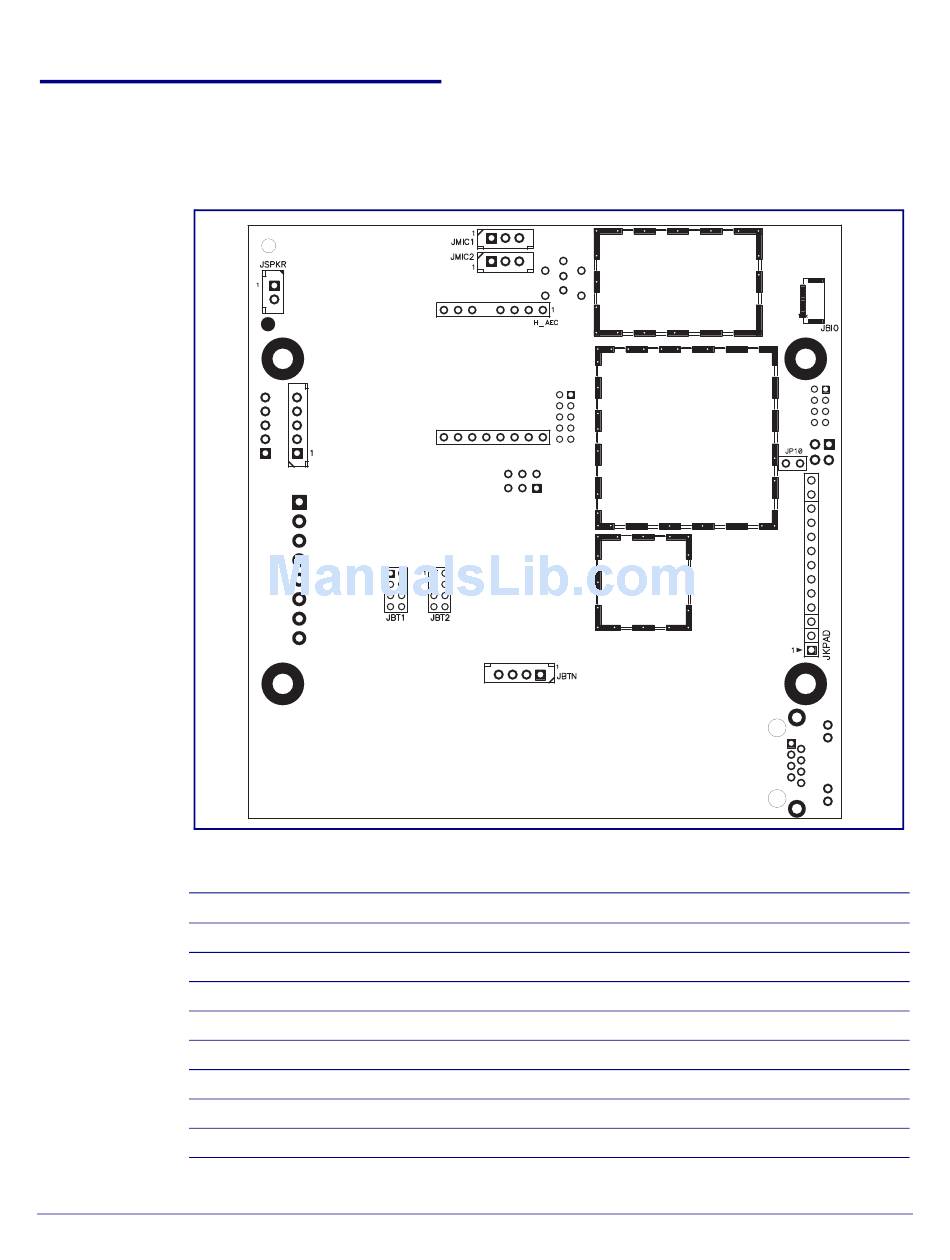

Figure 2-10. Connector Locations
JY
Table 2-2. Connector Functions
Function
Call Button LED Interface
Microphone Interface
Speaker Interface
Keypad Interface (Not Used)
I²C 5V Peripheral Bus
Disables the intrusion sensor when installed.
Touch Button — 1 Interface (Not Used)
Touch Button — 2 Interface (Not Used)
931293D
CyberData Corporation
18
