Door Strike 011269 Door Strike Relay
Module (sold separately)*
*See the Quick-Reference Placemat or Operations Guide
of the relevant door strike relay for connection specifics.
Door Strike
011375 Network Dual
Door Strike
Door Strike Relay 
(sold separately)*
*See the Quick-Reference Placemat or Operations Guide
of the relevant door strike relay for connection specifics.
Operations Guide

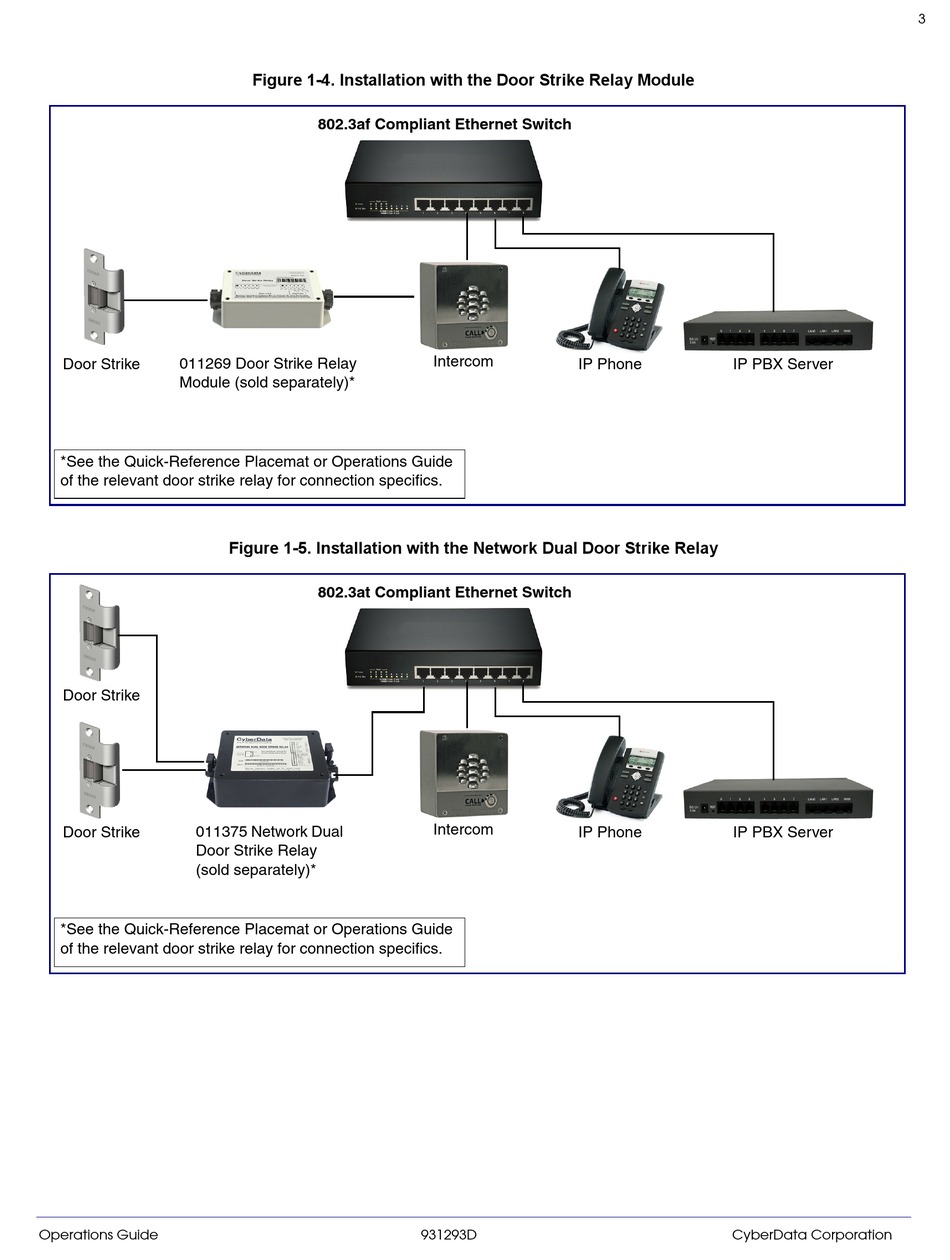

Figure 1-4. Installation with the Door Strike Relay Module
802.3af Compliant Ethernet Switch
Figure 1-5. Installation with the Network Dual Door Strike Relay
802.3at Compliant Ethernet Switch
Intercom
IP Phone
Intercom
IP Phone
931293D
IP PBX Server
IP PBX Server
