2.3.3 Intercom Connectors

See the following figures and tables to identify the connectors and functions of the Intercom.
Operations Guide
J7 J6
J9
Connector
Function
J2
Call Button. LED Interface
J6
Microphone Interface
J7
Speaker Interface
J9
Strobe interface connector (only on SIP Strobe products)
J10
Proximity Sensor Interface - N/A
JP10
Disables the intrusion sensor when installed.

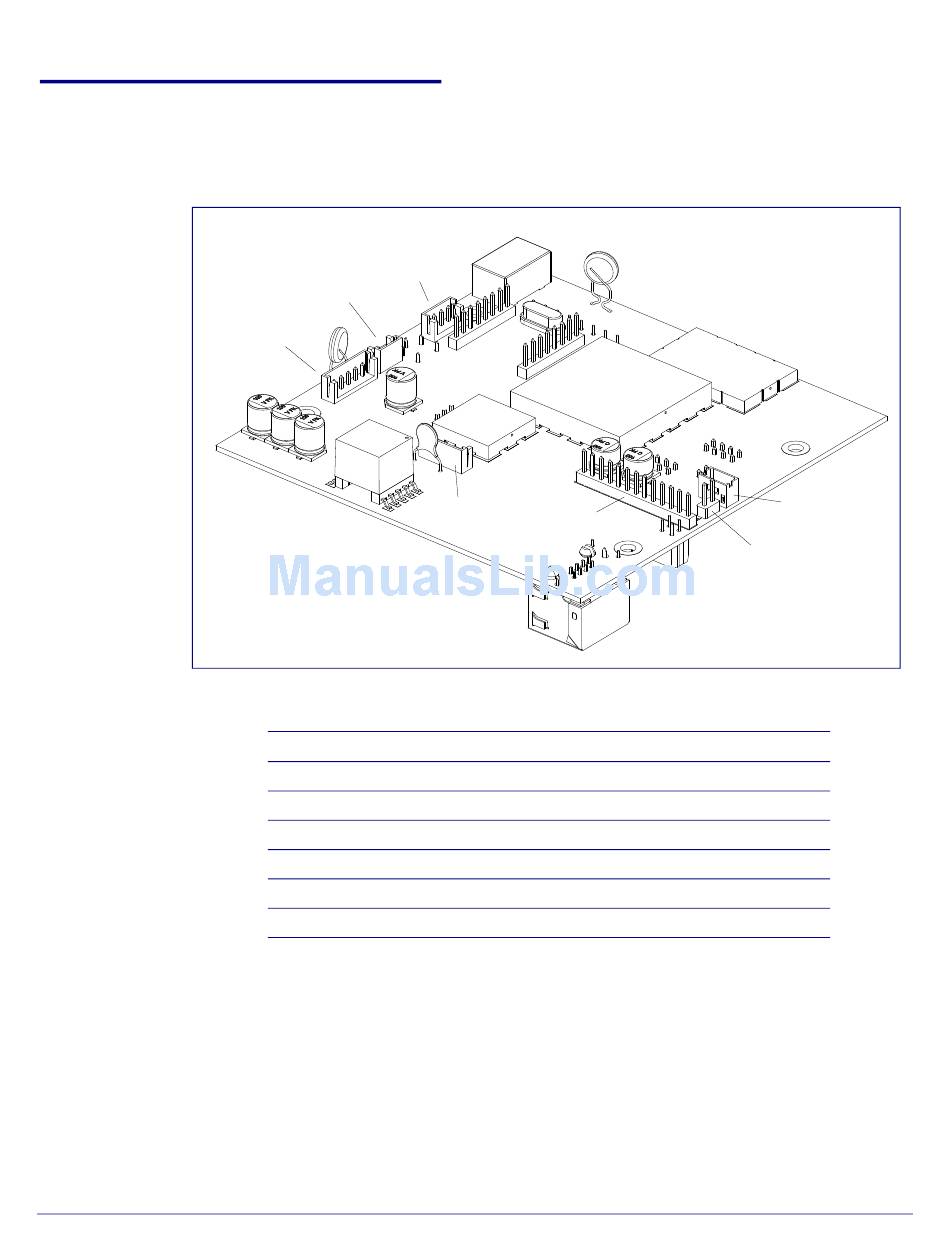

Figure 2-4. Connector Locations
J2
J8
Table 2-2. Connector Functions
930796B
Installing the VoIP Outdoor Intercom
Intercom Setup
J10
JP10
