Connector
J1
JAEC
JIO
JCON
JP1
JSPI
JTAG
JX
SW1
a.Do not install a jumper. Momentary short to reset. Permanent installation of a jumper would
prevent the board from running all together.
Operations Guide

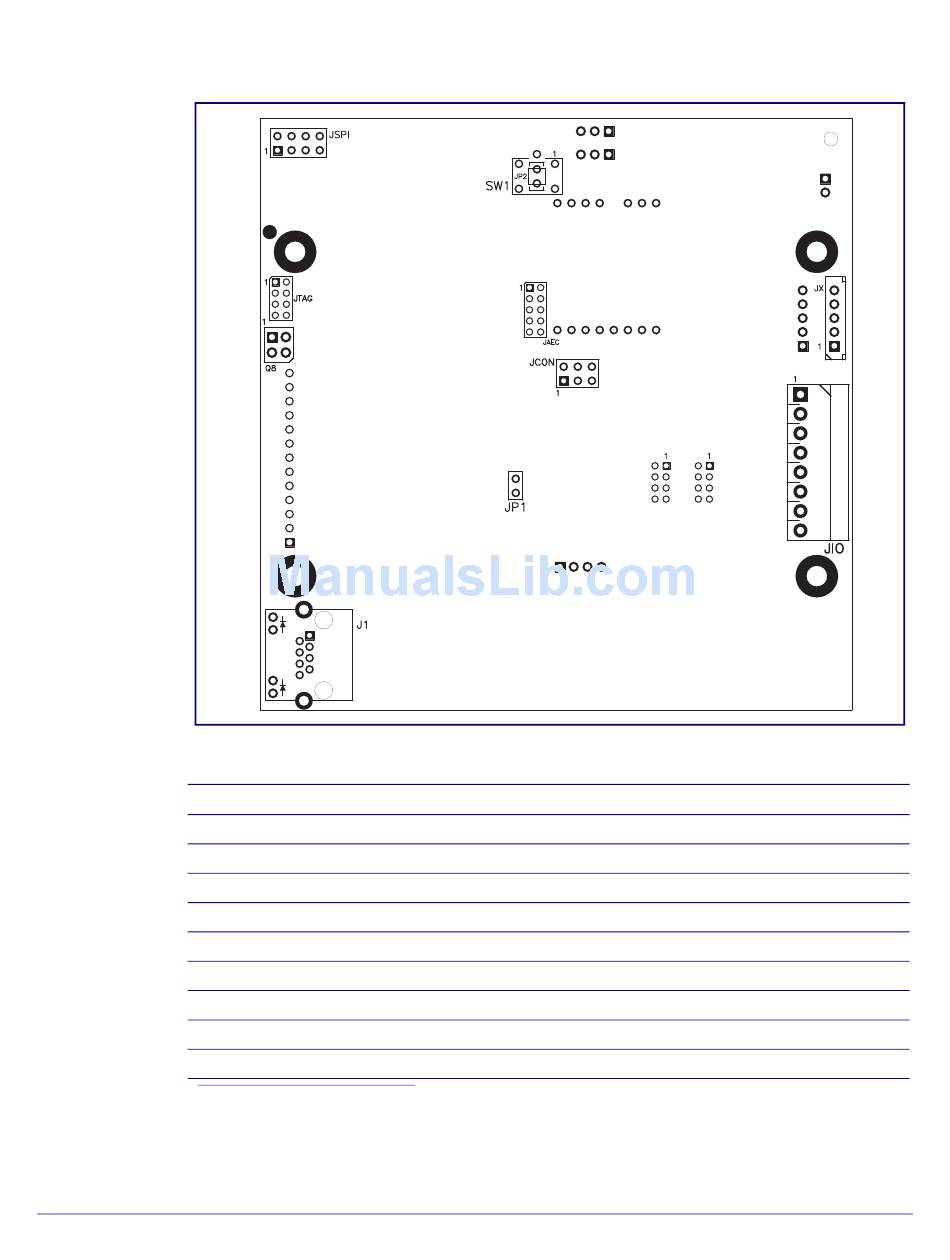

Figure 2-11. Connector Locations
Table 2-3. Connector Functions
Function
PoE Network Connection (RJ-45 ethernet)
AEC Configuration Interface (Factory Use Only)
Terminal Block (see Figure
Console Port (Factory Use Only)
a
Reset jumper
Reserved (Factory Use Only)
JTAG (Factory Use Only)
Auxiliary Strobe Connector
See Section 2.5.3, "RTFM Button"
