Maico easyTymp Operation Manual page 18

Figure 53
Figure 54
Figure 55
Figure 56
8108757 Rev. 3
Operation Manual easyTymp

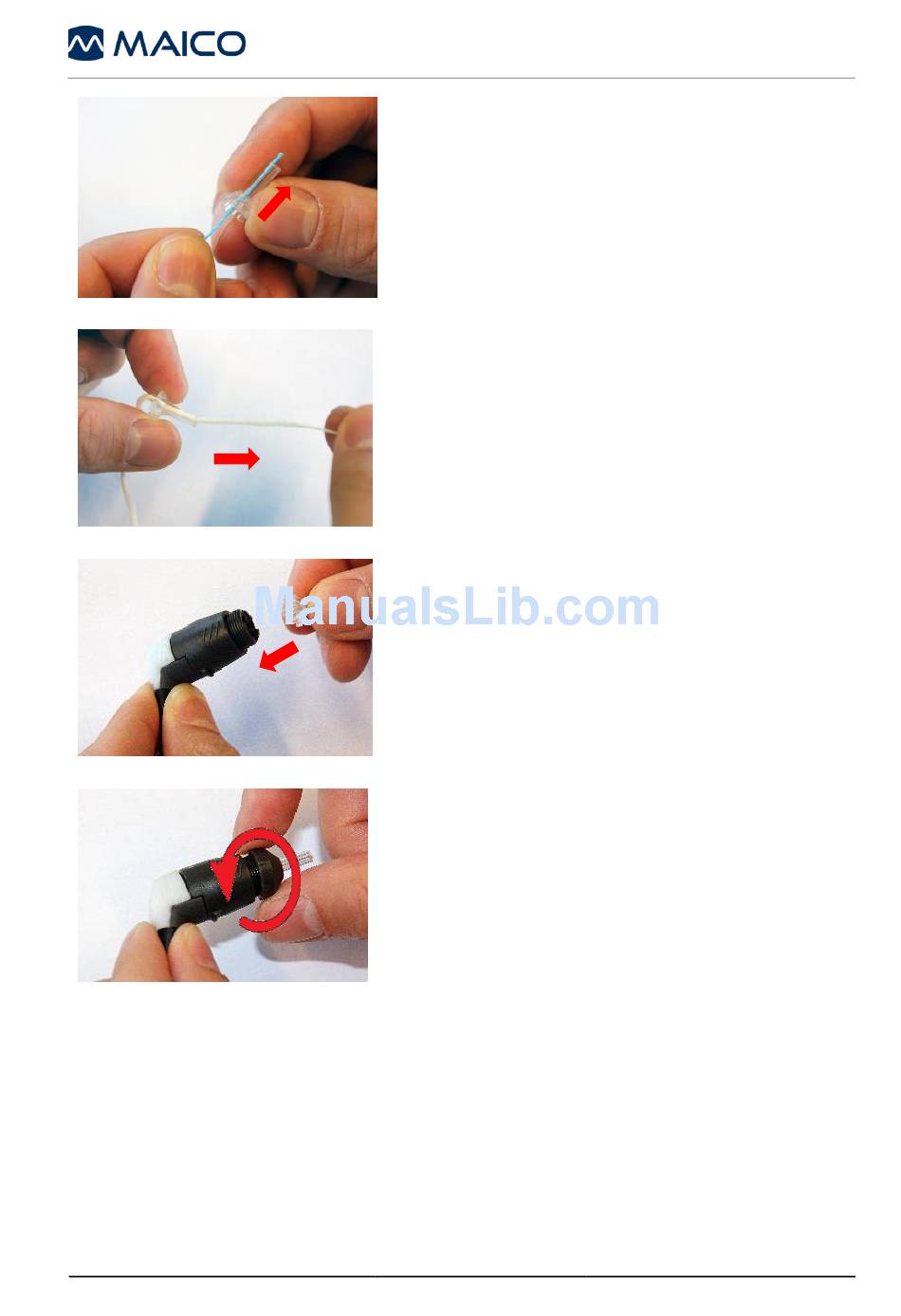

3. Insert the blue end of the floss from back to
front through one of the probe channels. Pull the
floss along its entire length through the channel
(Figure 53).
4. Proceed in the same way with all 4 probe
channels. Use the floss only once (Figure 54).
5. Place the probe tip back onto the probe.
Make sure that the plastic pegs are inserted into
the appropriate corresponding cavities (Figure
55).
6. Screw the probe cap back on the probe
(Figure 56). The force of tightening the cap will
tighten the screw sufficiently. Never use tools to
fix the probe cap!
If any blockage or damage occurs to the sealing
gasket, the probe system can only be serviced
by MAICO.
15
15/11/2016
