System Installation - Maico easyTymp Operation Manual

Licenses:
-
License for high frequency probe tone of 1 kHz
-
License for Pro Version: Acoustic Reflexes Contra, Decay and ETF
NOTE: License for Pro Version: An upgrade to the device version is required.
Consumable Material:
-
Printer paper
-
Replacement eartips
-
Probe tip
-
Cleaning floss

4.2 System Installation

4.2.1 Hardware Installation
4.2.1.1 Installing the Cradle

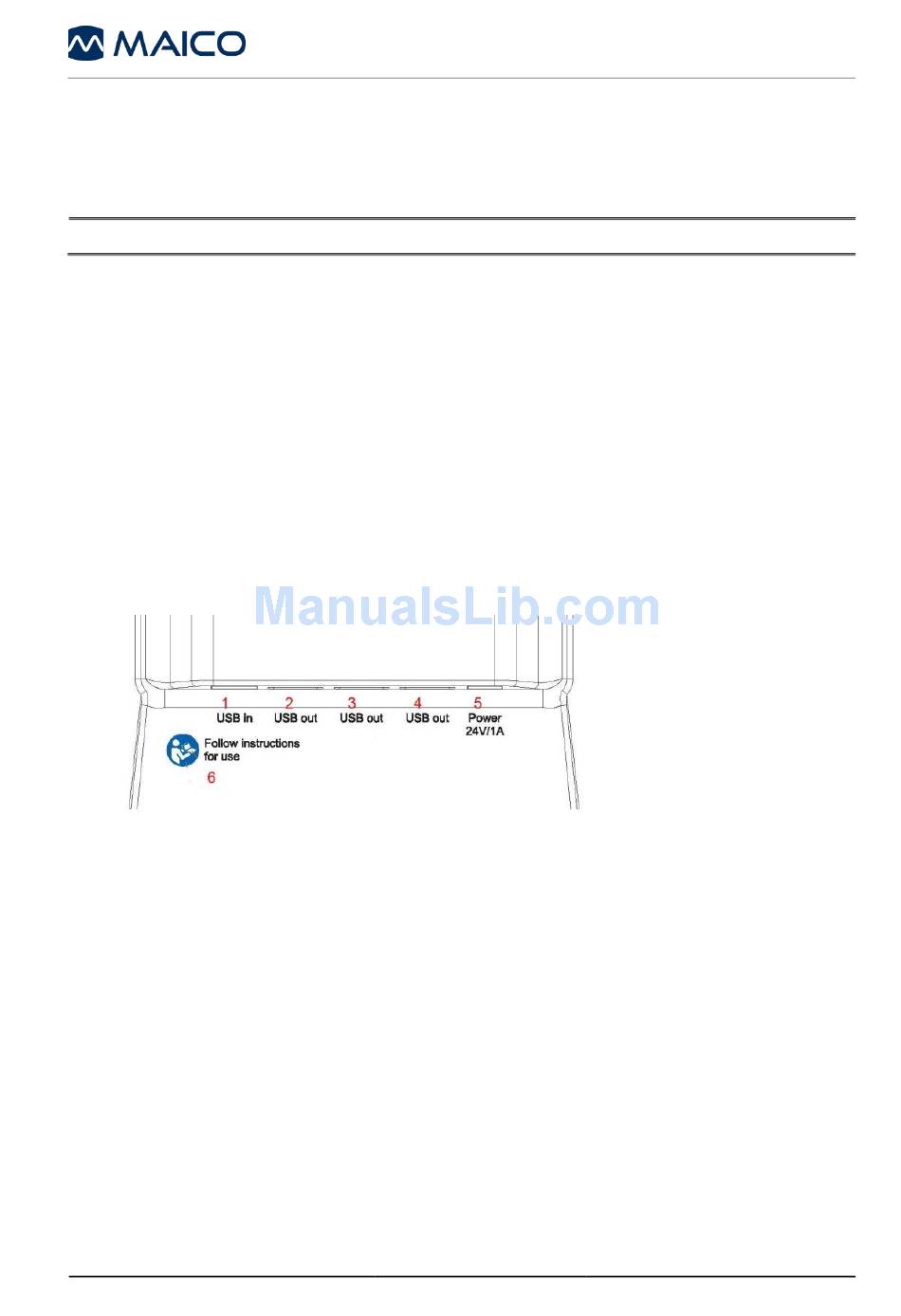

Figure 1
Put the enclosed mains cable into the power connection socket #5 and the mains plug
into a power socket.
4.2.1.2 Cradle Indication Lights
Depending on the version (with or without printer) the cradle has up to three indication
lights (Figure 2).
8108757 Rev. 3
Operation Manual easyTymp
22
1 = USB in;
2 = USB out;
3 = USB out;
4 = USB out;
5 = Power;
6 = Follow the
instructions for use
