Jeti Duplex:
Connect two R-Sat2 satellites or REX receivers directly to RX1 and RX2. The receivers are bound in
two-way mode. The following settings must be carried out:
- Serial output: UDI
Primary settings:
- Signal speed: 10 ms
- PPM settings: Direct
- Failsafe: Inactive (if two receivers are in use; otherwise any setting)
Visit us in our support forum for more and more detailed information how to connect receivers.

d) Setting the battery type

It is essential to set both the battery type and the capacity of the batteries you intend to use, other-
wise accurate battery monitoring will not be possible. You will find this set-up point in the POWER/

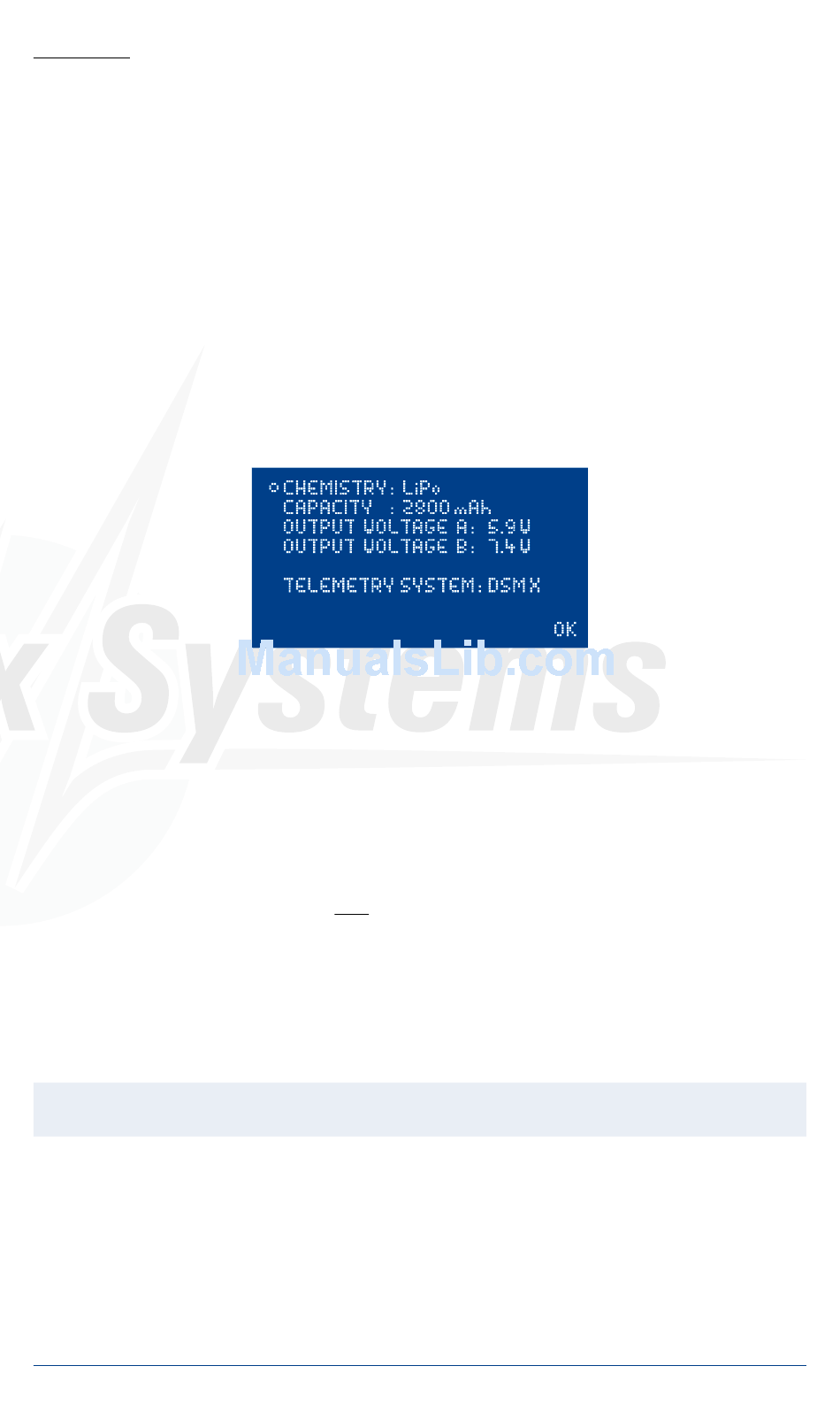

TELEMETRY menu:
- CHEMISTRY: Select one of the three battery types: LiPo, NiMH or LiFePo
- CAPACITY: Select the capacity of your batteries at this point. Since V12 the PowerBox detects that
a charge process is under way, and automatically resets the residual capacity display. However,
it is also possible to reset the capacity manually by holding buttons I and II pressed in simulta-
neously.

e) Setting the output voltage

The Royal SRS is fitted with a total of four independent high-performance voltage regulators. In
order to guarantee 100% redundancy, these are linked together in pairs. You can select the output
voltage of each of these regulator pairs A and B. For example, it is possible to set an output voltage
of 7.4 V for regulator pair A, and 5.9 V for regulator pair B. This feature makes it possible to connect
a mixture of HV servos and normal servos to the PowerBox Royal SRS. The markings A (red) and B
(black) on the case cover indicate which outputs are assigned to range A, and which to range B. The
Output Mapping function provides a comprehensive means of assigning the appropriate output
voltage to particular functions.
Note: the PowerBUS outputs are also assigned to voltage range A and voltage range B.
