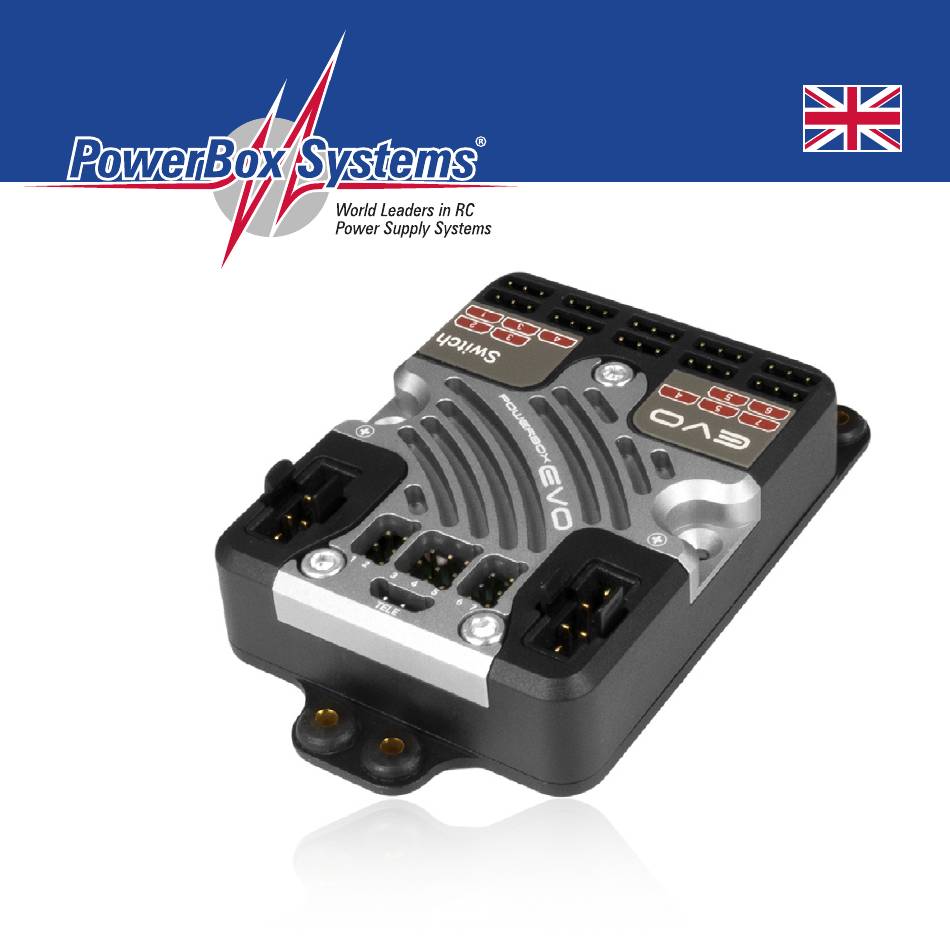

  • Page 1 Instruction Manual Powerbox evo...

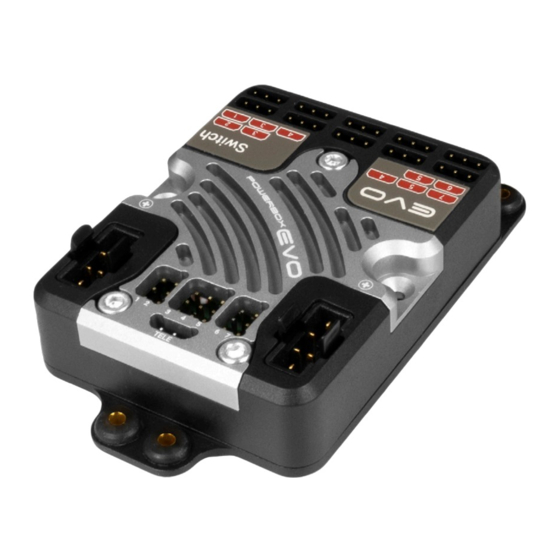

  • Page 2 The PowerBox Evo is an ultra-compact dual power supply featuring 7 channels, regulated output voltage and telemetry. The 7 inputs are assigned to 12 outputs, allowing two servos to be controlled in parallel on each of 3 channels, without re- quiring additional Y-leads.
  • Page 3 The PowerBox MicroSwitch is connected to the socket marked Switch on the side of the PowerBox Evo. In models where severe vibration is likely to occur, we recom- mend that the ribbon cable should be secured at a minimum of one additional point...
  • Page 4 Channels 3 – 4 – 5 each have two outputs, allowing you to connect two servos without a Y-lead. But please note: the PowerBox Evo does not feature servo matching, so the servos must be adjusted mechanically for equal travel if both are connected to the same control surface.
  • Page 5 If you are using a PowerBox MicroMag, hold the magnet against the switch until the PowerBox Evo turns itself on. The LED lights up blue as soon as a magnet is detected. The LED turns red to indicate the end of the switching process; after this the LED glows green to indicate that it is switched on.

  • Page 6: Setting The Battery Type

    3. SETTING THE BATTERY TYPE It is important to set the battery type, otherwise the LED battery indicator cannot work properly. This is the procedure: first switch the PowerBox on, then hold the button pressed in again. After about five seconds the LEDs go out, and a sequence of different colours com- mences, each colour corresponding to one battery type.

  • Page 7: Setting The Output Voltage

    4. SETTING THE OUTPUT VOLTAGE The PowerBox Evo can be set to four different output voltages: on the one hand to 6.0V for conventional servos, on the other to 7.4V, 7.8V or completely unregulated for HV servos. If you intend using the last named setting, please ensure that all components connected to the system are safe for use on high voltage.

  • Page 8: Specification

    89 x 55 x 18mm Weight: Weight of Sensor Switch: Temperature range: -30°C to +105°C 6. SET CONTENTS • PowerBox Evo • MicroSwitch • 8x patch leads • 6x fixing screws • 4x rubber grommets and brass sleeves • Operating instructions...
  • Page 9 7. DIMENSIONS www.powerbox-systems.com...

  • Page 10: Service Note

    PowerBox-Systems GmbH That is why we are able to grant a 24 month Ludwig-Auer-Straße 5 guarantee on our PowerBox EVO from the 86609 Donauwoerth initial date of purchase. The guarantee covers Germany proven material faults, which will be corrected by us at no charge to you.

  • Page 11: Liability Exclusion

    For this reason we deny liability for loss, damage or costs which arise due to the use or operation of the PowerBox Evo, or which are connected with such use in any way. Regardless of the legal arguments employed, our obligation to pay damages is limited to the invoice total of our products which were involved in the event, inso- far as this is deemed legally permissible.
  • Page 12 02/2023 PowerBox-Systems GmbH Ludwig-Auer-Straße 5 86609 Donauwoerth Germany +49-906-99 99 9-200 +49-906-99 99 9-209 www.powerbox-systems.com...
